Operator’s Manual Page 15

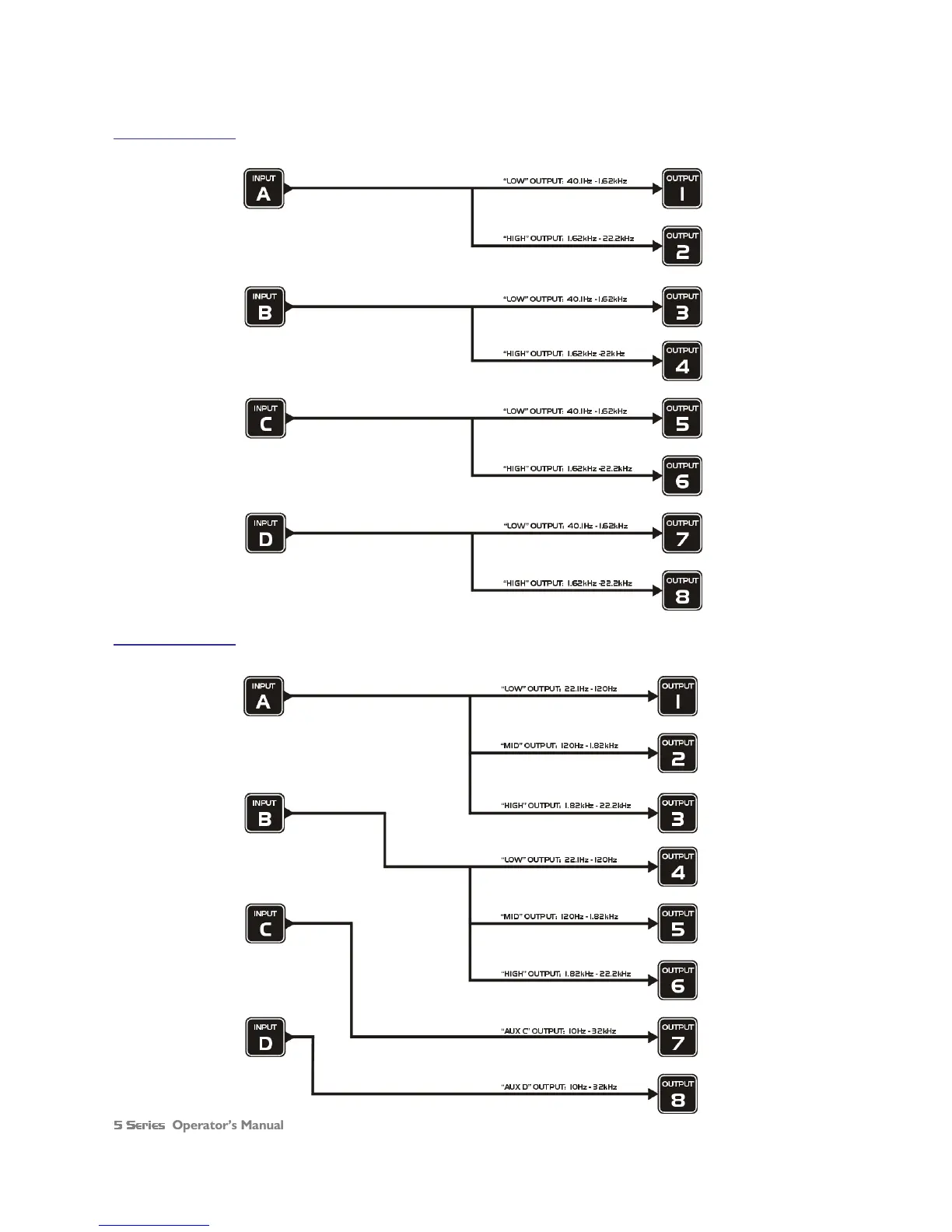

4 x 2 way crossover: As shown, each input feeds a pair of outputs, odd numbers being the low frequency split, and even
numbers being the high part of the spectrum. Default suggested crossover frequencies are shown by each output.
2 x 3 way crossover: Inputs A and B feed three outputs each, with output 7 being fed from input C, and output 8 from
input D. Note the ‘Aux’ outputs are set to full range. Default suggested crossover frequencies are shown by each output.
