5 Series Operator’s Manual
Loading New Software via a PC
The unit’s internal software may be updated via the RS232 port ONLY, one unit at a time. We recommend disconnecting
all other devices when updating the software.
The unit’s interface must be set as RS232 Master on ID1 for the PC loader program to recognise it and allow the update to
be sent.
Download the latest version of the loader program and the unit software from www.xta.co.uk, and follow the instructions
included with this zip file. An RSS feed is available on the website to ensure immediate notification of software releases.

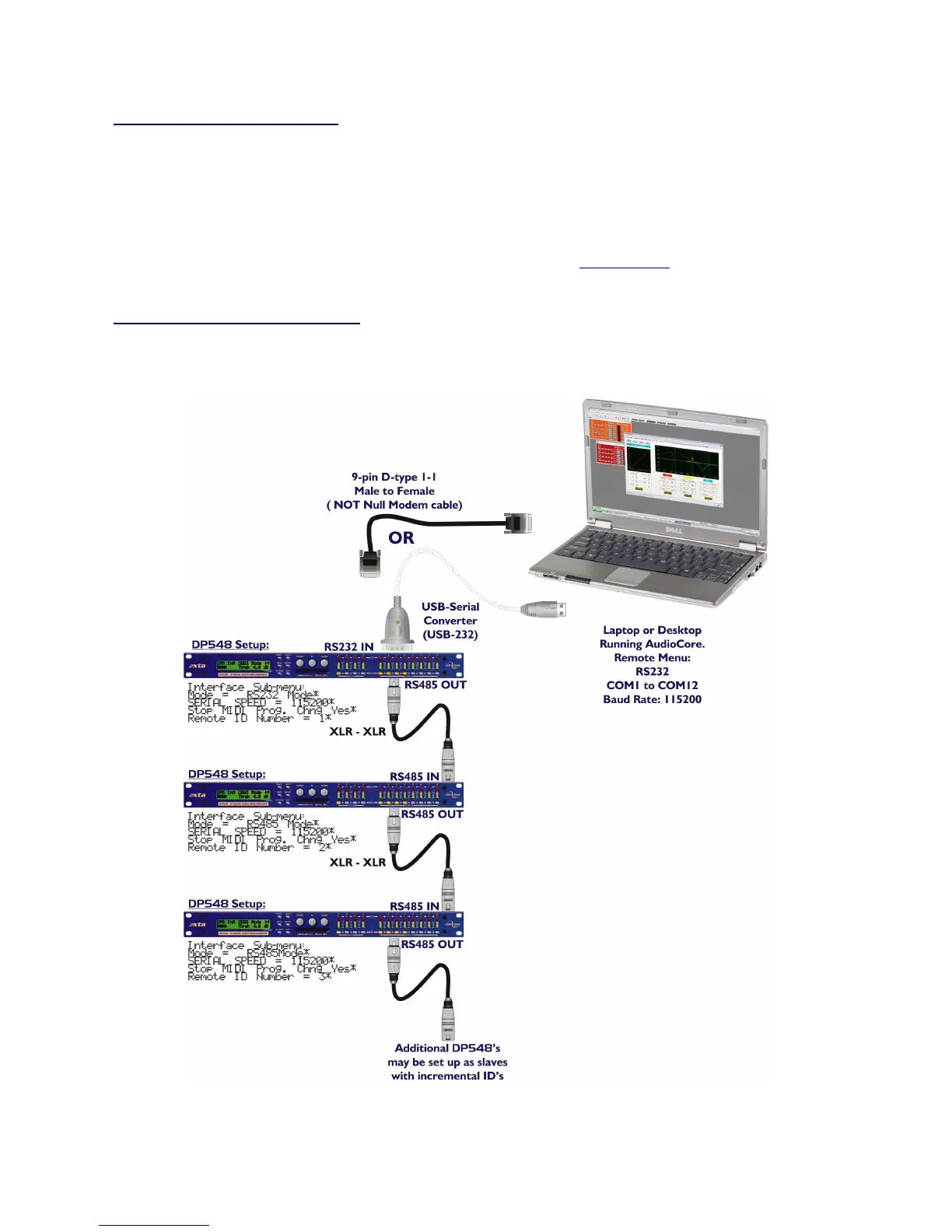

RS232 Connection (Multiple Units)
If control over multiple units is required, typically the slaves will be set up to run from the RS485 ports on the master
unit.
Note the incremental ‘ID NUMBER’ option in the unit’s interface setup.
