Page
20
DP224/6
Operators
Manual

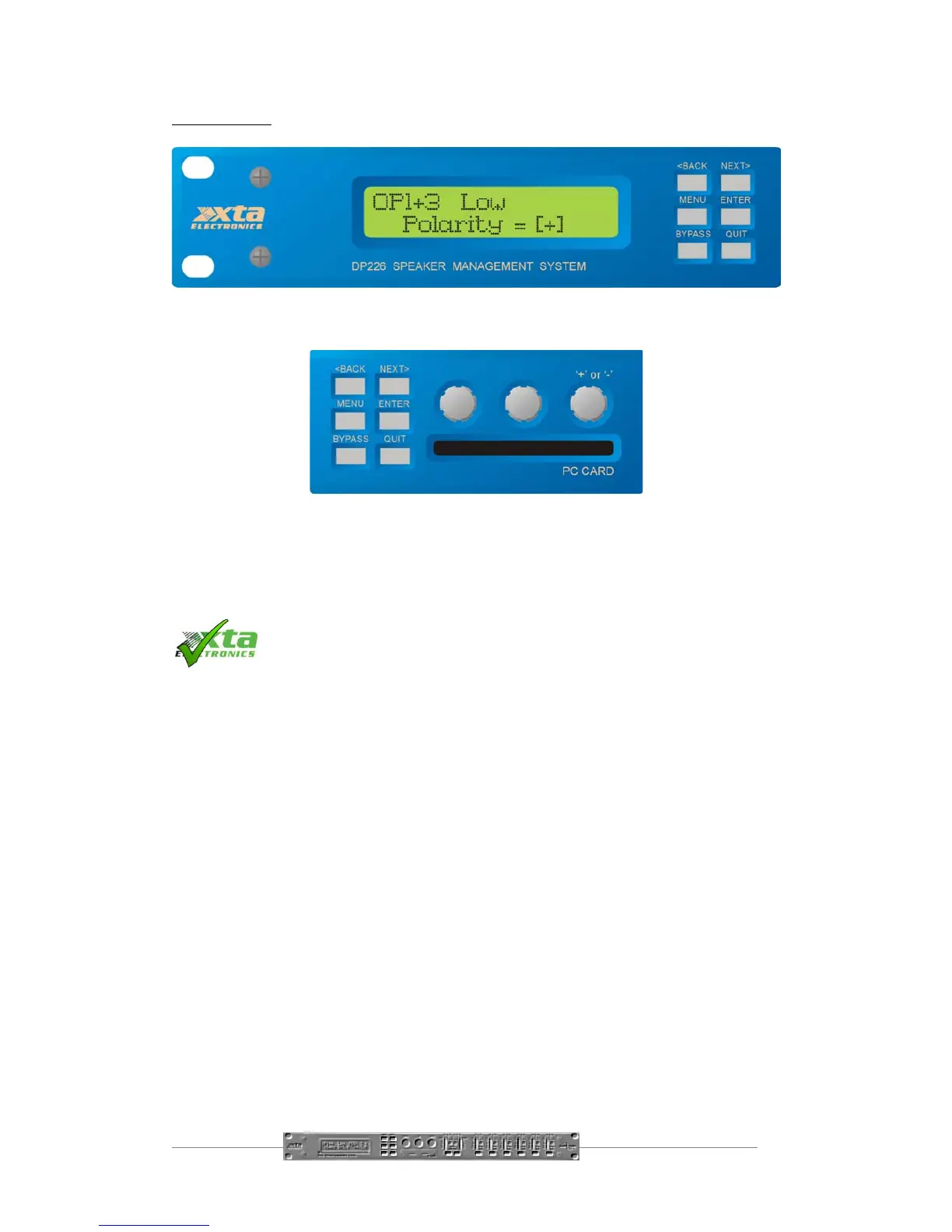

Polarity Screen
To adjust the polarity:
Use the ‘GAIN’
control to switch between + and -.
Each output has an independ
ent polarity screen. This gi
ves the flexibility to reverse
(flip by 180
°
) the phase of individual outputs.
Note: When the outputs are gang
ed, the polarity screens remain
individual.
