DP224/6 Operators Manual Page 21

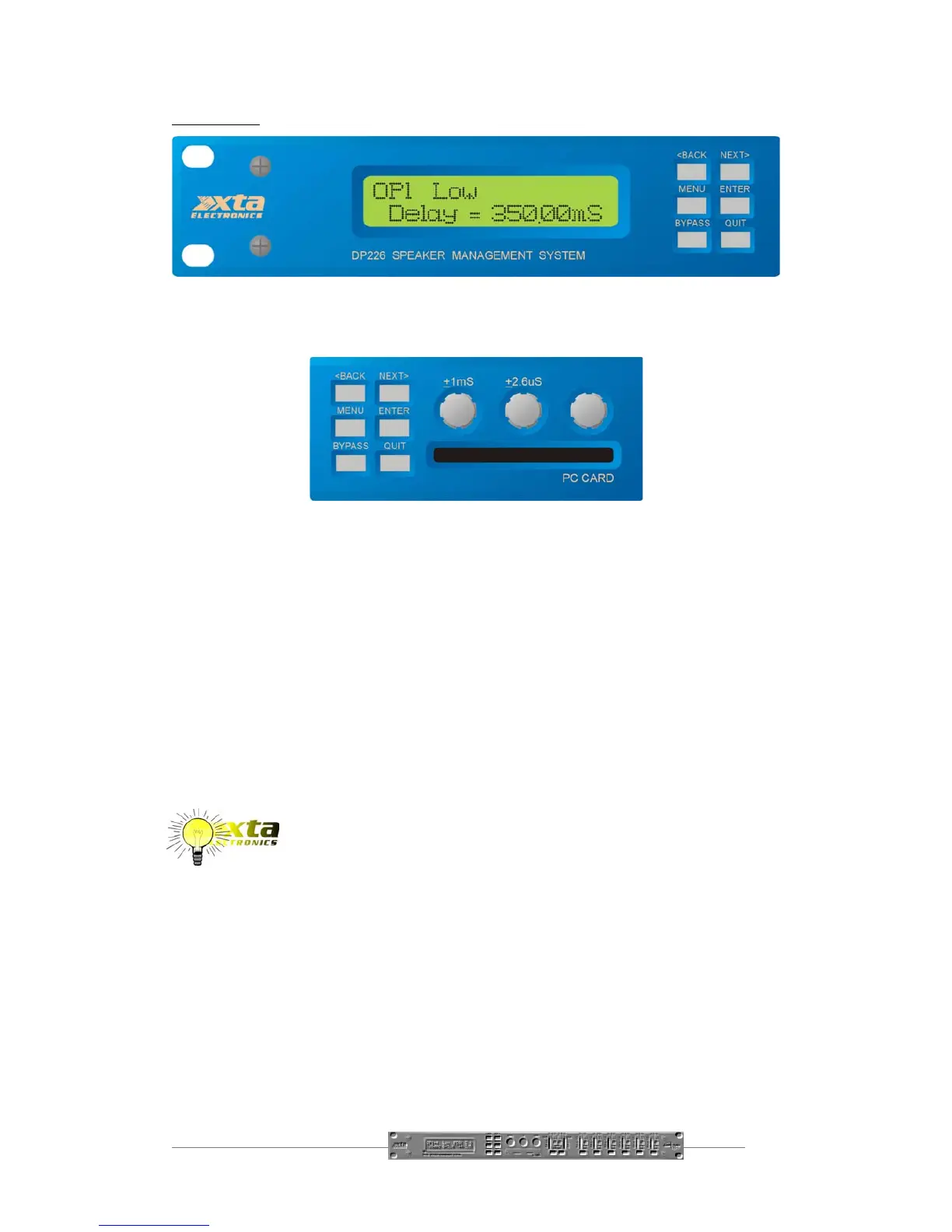

Delay Screen

To adjust delay settings:

Use the ‘FREQ’ control for coarse control. (1mS steps)

Use the ‘Q’ control for fine control. (2.6µS steps)

Each input and output has an independent delay time control. Input delay (base delay)

is adjustable in 1mS steps. Output delay is adjustable in 2.6µS steps or in 1mS steps

giving complete control over driver time alignment.

The combination of input (base) delay and output delay can be a maximum of 650mS.

So, for example, setting a base delay of 500mS on input A will only leave 150mS for

any outputs that are sourced from input A. The exception to this rule is for any ‘aux’

outputs (available in 4 and 5 way crossover modes). Choosing the source as a mono

sum (Inputs A + B) will allow 650mS of output delay, regardless of the input delay

settings.

For further details on this topic, see the section entitled

“Time Alignment” on page 40.
