Input Processing Channels
Your amplifier has four input
channels of processing that
can be fed from a variety of
sources.
These four channels in turn,
feed a mix matrix for routing
to the power amplifier
processing channels and the
auxiliary output processing
channels.
Each input processing channel consists of the following sections:
- Input gain control
- Input delay time
- Input parametric EQ bands 1 through 8
The dynamic EQ sections will be added in a future firmware update. For more information on
adjusting input processing parameters, please see the section beginning on page 29.
Mix Matrix Section
The mix matrix allows four independent mixes
to be set up for the power amplifier channels
and the auxiliary output channels.
These can be either “Boolean” in design (so just
A+B+C etc.) or a full mix matrix mode can be
used to allow four continuously variable
“sends” from the four input processing
channels to be combined.
There are also a variety of templates to act as starting points for crossover duties, where
useful crossover (high and low pass) frequencies are automatically assigned to groups of
outputs, dependant on the format used. For more information on adjusting the mix matrix,
please see the output editing section on page 35. Note that the mix matrix will only be
available if it has been selected as part of the output/auxiliary configurations — see page 41 to
change this.

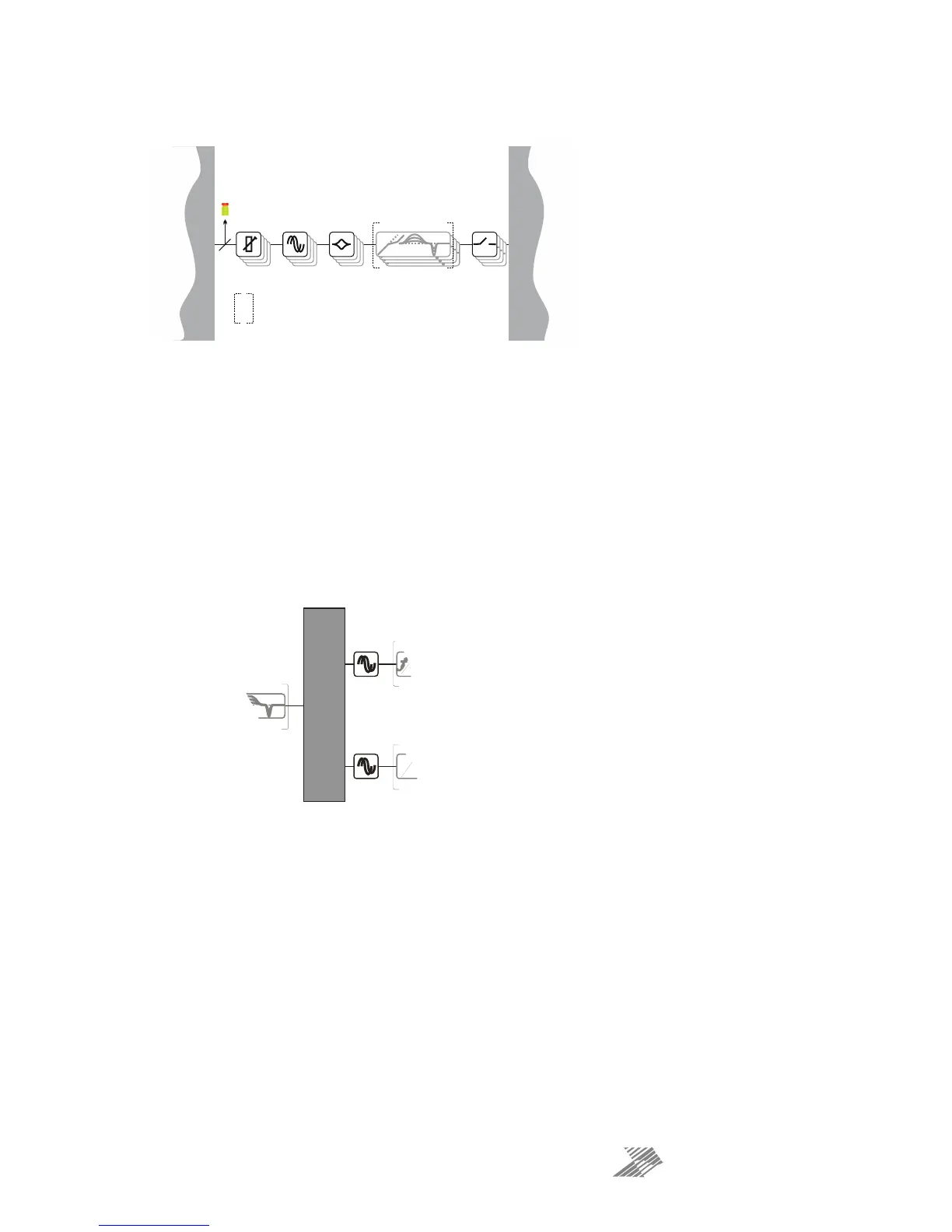

FIRDELAY
DYNAMIC EQ x 3
MIX MATRIX 4-4
FIRDELAY
f t
MIX MATRIX 4-4
SOURCE SWITCH 12-4
PEQ x 8DELAY DYNAMIC EQ x 3GAIN
4
INPUT P RO CESS I NG CHANNELS A-D
These DS P features w ill be unlocked in
subs equent f i rmw are rel eases, but w i l l
be compatible with all future hardware
rev i si ons .
