Page 24 DPA Series DPA80/DPA100 Operating Instructions
t
a
x
Power Amplifier and Auxiliary Output Processing Channels
MIX MATRIX 4-4
OU TP UT CHA NNELS 1- 4 ( P OWER AM P LI FI ER CHANNELS )
PROG. - LIMITERS - PEAK
MUTE
AU X CHANNELS 1- 4 ( XLR OUTP U T CHA NNELS )
PROG. - LIMITERS - PEAK
MUTE
POWER
AMP
AUXILIARY
OUTPUTS [XLR]
SPEAKER
OUTPUTS
PEQ x 9
FIRDELA Y HP F - XO VER - LP F
GAIN
PEQ x 9FIRDELA Y HP F - XO VER - LP FGAIN
POLARITY
POLARITY

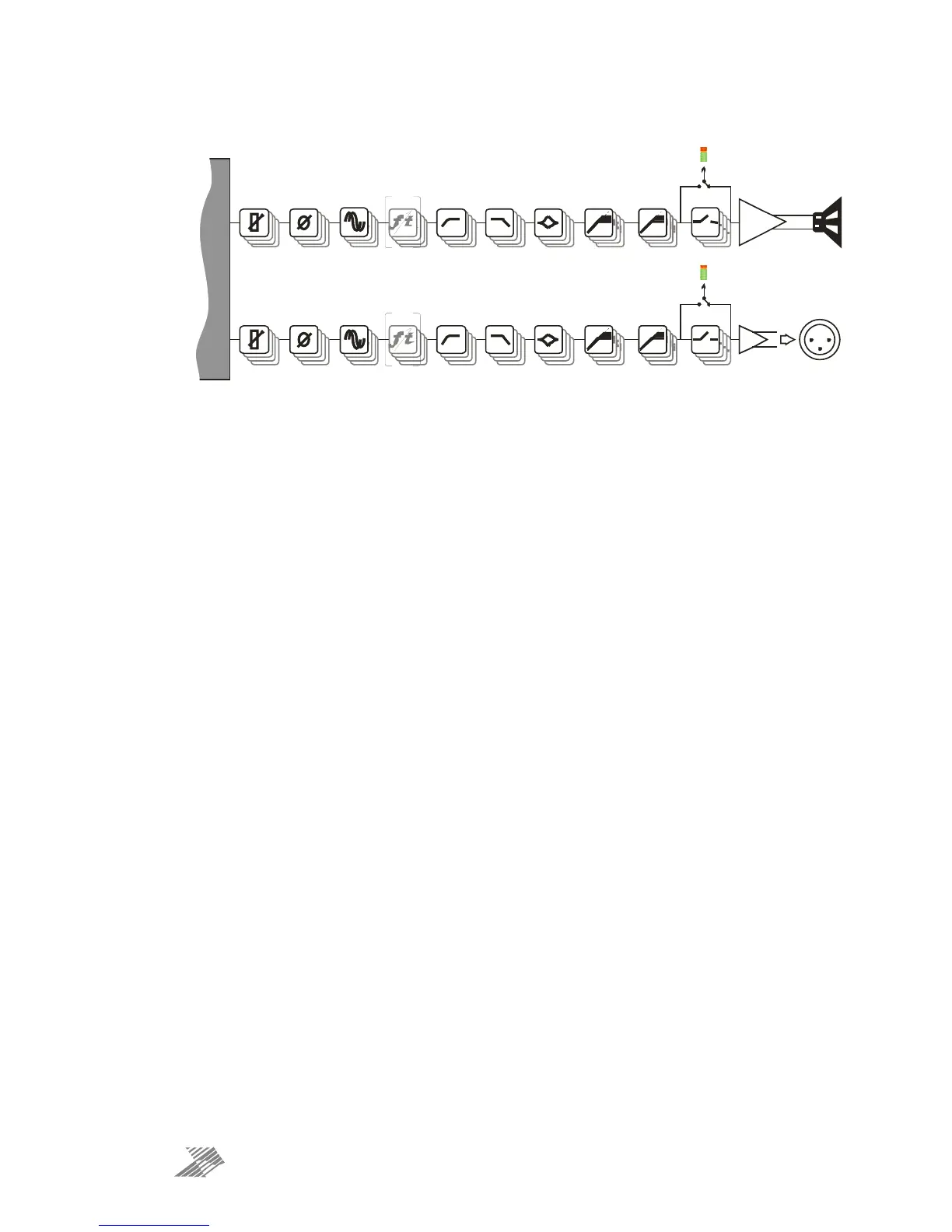

There are eight identical channels of output processing in your amplifier: four dedicated to
the power amplifier channels, and a further four that are connected to the auxiliary XLR
outputs on the amplifier, providing analogue feeds to other equipment.
Each output processing channel consists of the following sections:
- Output delay time
- High and low pass crossover filters (up to 48dB/Oct.)
- Output parametric EQ bands 1 through 9
- Output gain control
- Program (RMS) limiter
- Peak limiter
FIR filtering capabilities will be added in a future firmware update. For more information on
adjusting output processing parameters, please see the section beginning on page 31.
