5.6 THROTTLE
Throttle Position Sensor (TPS) Match, this function enables you to make initial
settings to throttle actuators and returns the “learned” values stored on ECU to the
default state. Doing so can accurately control the actions of regulating throttle (or
idle engine) to adjust the amount of air intake.
The operation guidelines of the Throttle function are shown as below:
1. Enter the Throttle menu and choose relevant models according to the vehicle
being tested.
2. Enter the Auto Recognition menu and turn on the ignition switch.
3. Read carefully and complete the requisites listed before performing the throttle
regeneration function. And press OK after completing the instructions shown.

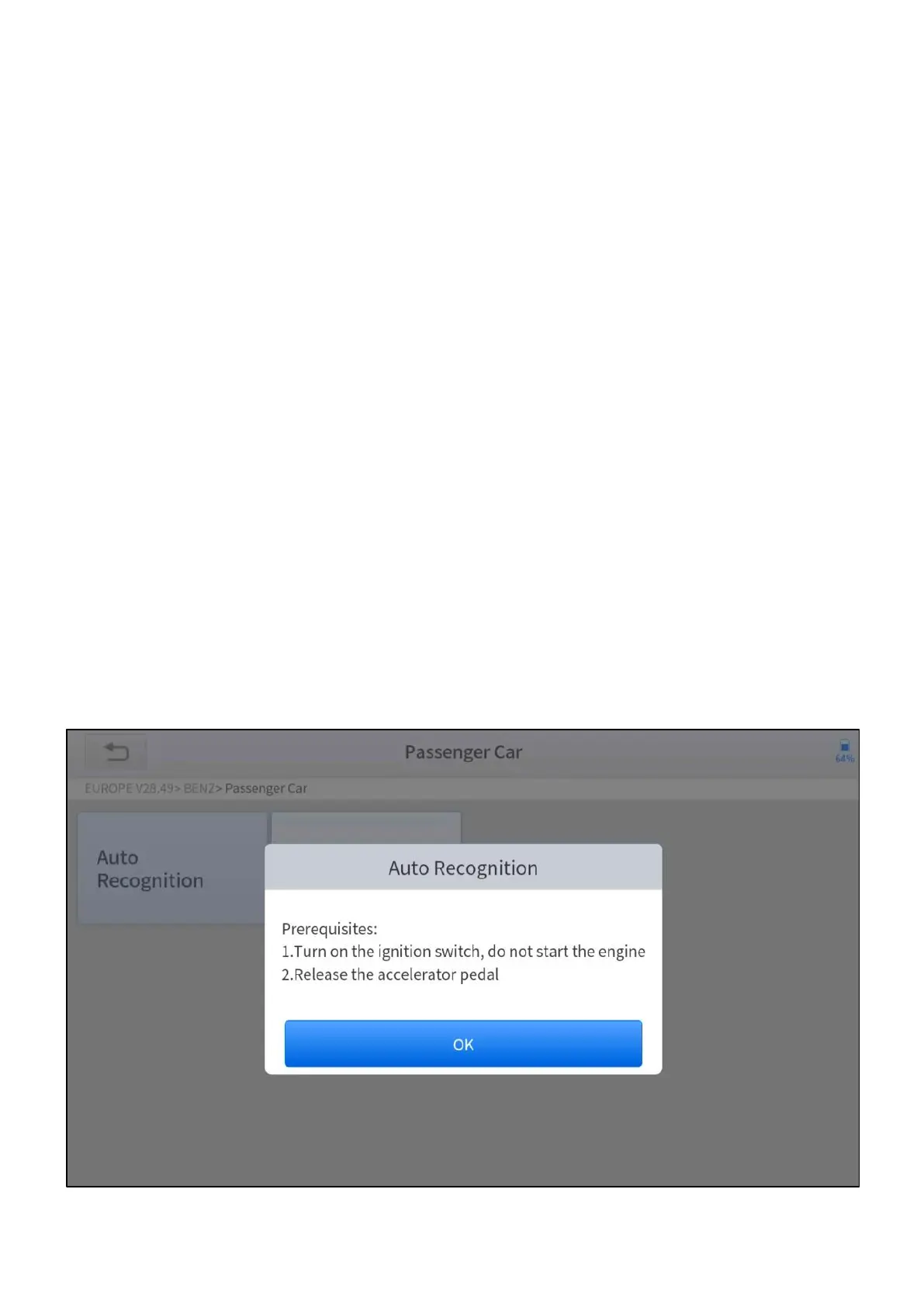

Figure 5-20 Sample of throttle function (screen 1)
