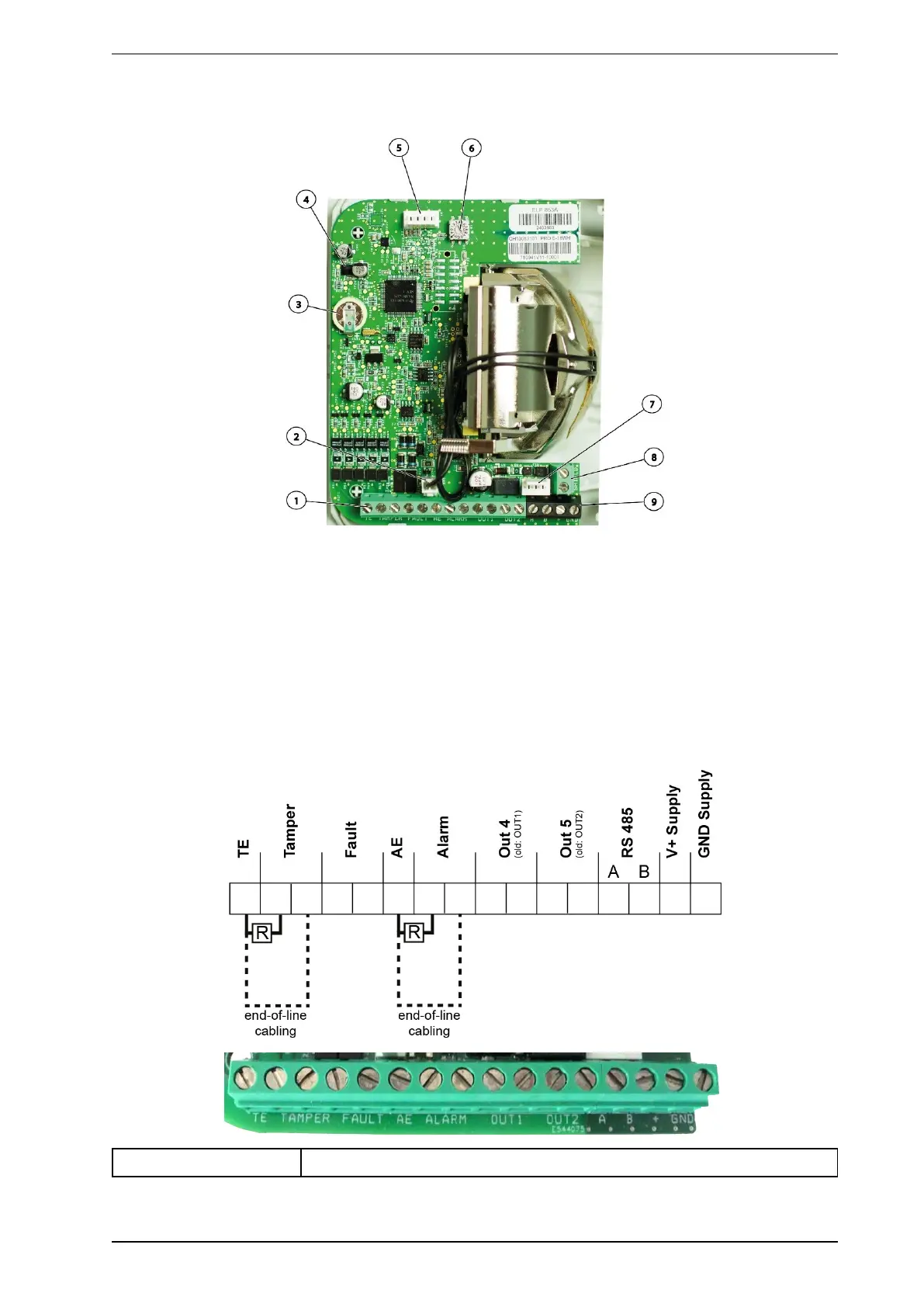

5 Overview of the circuit board
1. Alarm output terminal
2. Heating terminal
3. Backup battery
4. Light-sensitive proximity sensor
5. Tamper switch socket
6. Rotary switches (do not change)
7. Test (bus/power) or IP module (optional) socket
8. Shield terminal
9. Bus/Power supply terminal
5.1 Pin assignment Alarm Outputs
PCB-Terminal
