2.7 Installation
2.7.1 Cabling
In the design of the detector and integrated detector holder, great care was taken to see that cabling (cable
management) could be installed very easily and quickly, and yet provide the highest level of tamper
protection, a veritable boon for the installer. The centerpiece of the solution is a patented self-sealing kidney-
shaped cable seal (Kidney Seal) which allows premanufactured cables with plugs to be used.

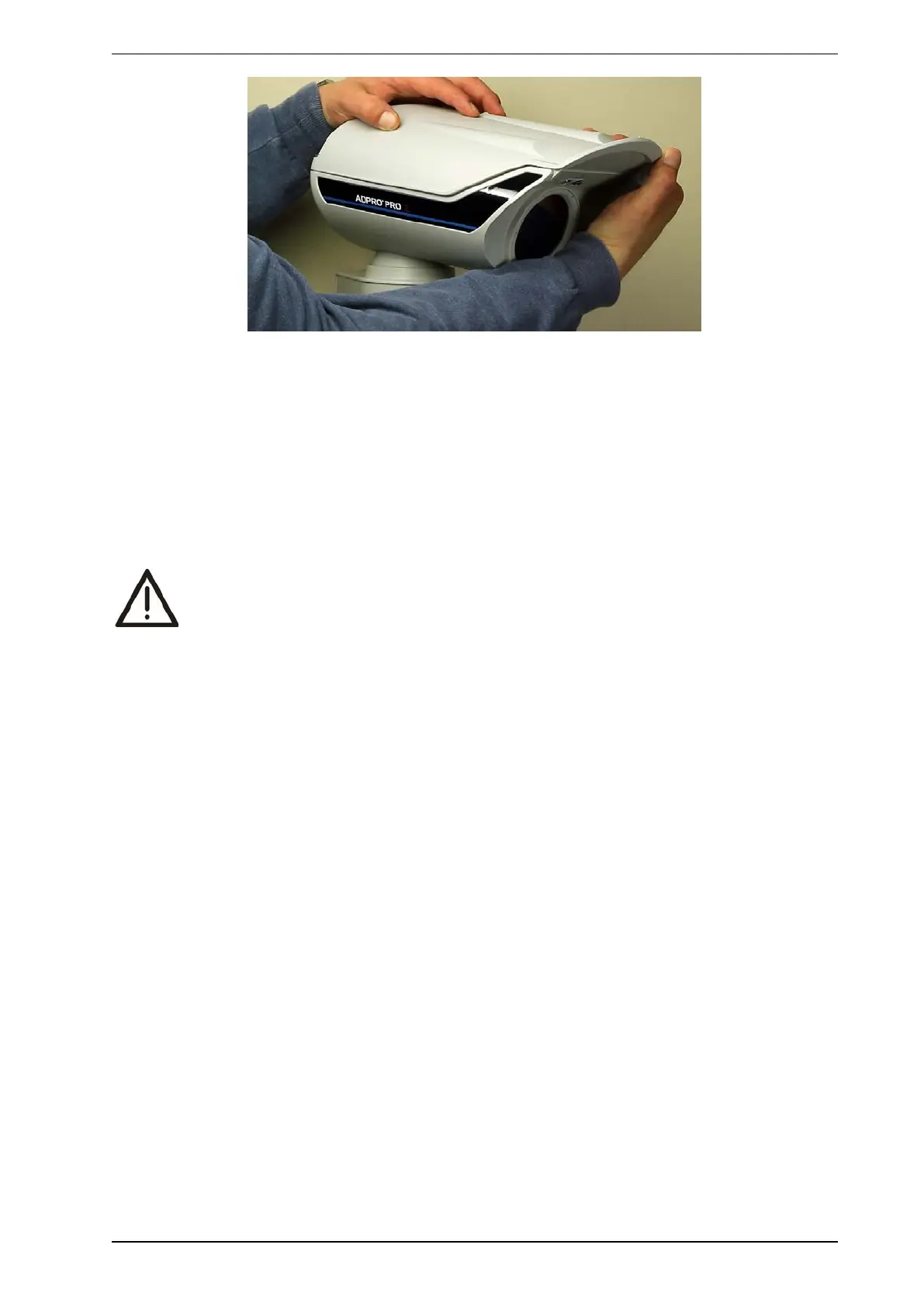

Both the cabling and the housing cover can be opened and closed easily using screwed plugs or click
connectors.
WARNING:
l To protect detectors from permanent damage due to potential differences, ensure that if AC
voltage is supplied, all detectors are connected identically and L1 (+) and N (-) on the
secondary-side are not interchanged.
l To eliminate confusion and make your work easier, we recommend the use of colored or
coded cables – even if AC voltage is used (Multiple detectors at interface module IFM-485-
ST Pg.35)
