Xtralis ADPRO PRO E - Pole Mounting of Detector Holder

Installation Guide ADPROPROE by Xtralis
8 27386_05
2.4.2 Required tools
l Folding ruler
l Cross screwdriver
l Hexagon socket screw driver 4 mm
l Flat-tip screwdriver 2 mm (pole assembly)
l Suitable screwdriver, shank length at least 180 mm (wall mount)
l Engineer’s pliers
l Cutter (knife)

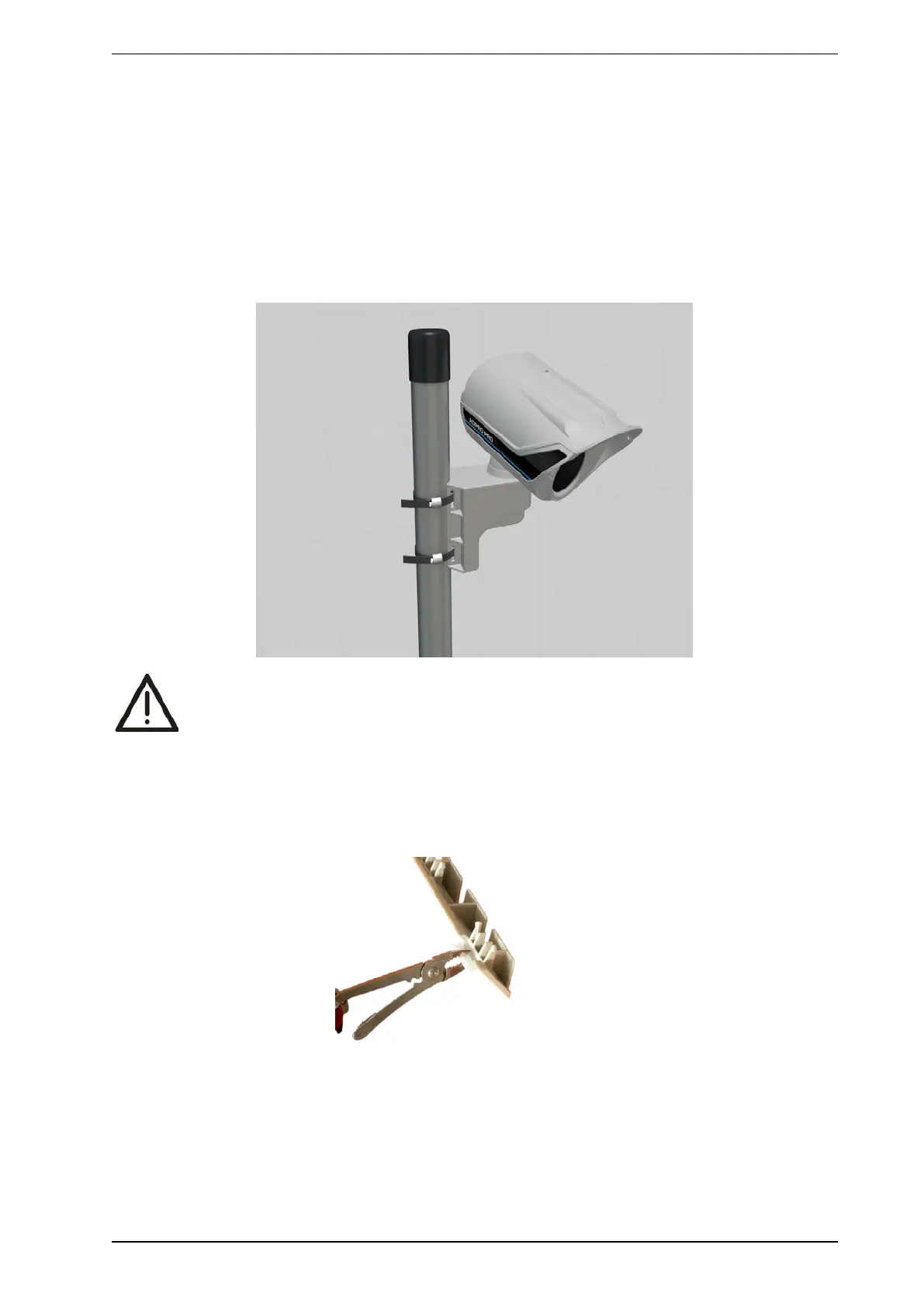

2.5 Pole mounting of detector holder
WARNING:
Ensure that cables are neatly in place before tightening the clamps to avoid damage to cables
through forcible pressing and buckling.
Due to the low net weight of ADPRO PROE-detectors, mounting is designed to use standard hose clamps
with a screw flight (not provided).
Follow the installation instructions below:
1. Break off the grooves for the screw clips from both panels as shown.
2. Insert both panels as shown. Lock the panels in place with an audible click.
