ADPROPROE by Xtralis Installation Guide
27386_05 9

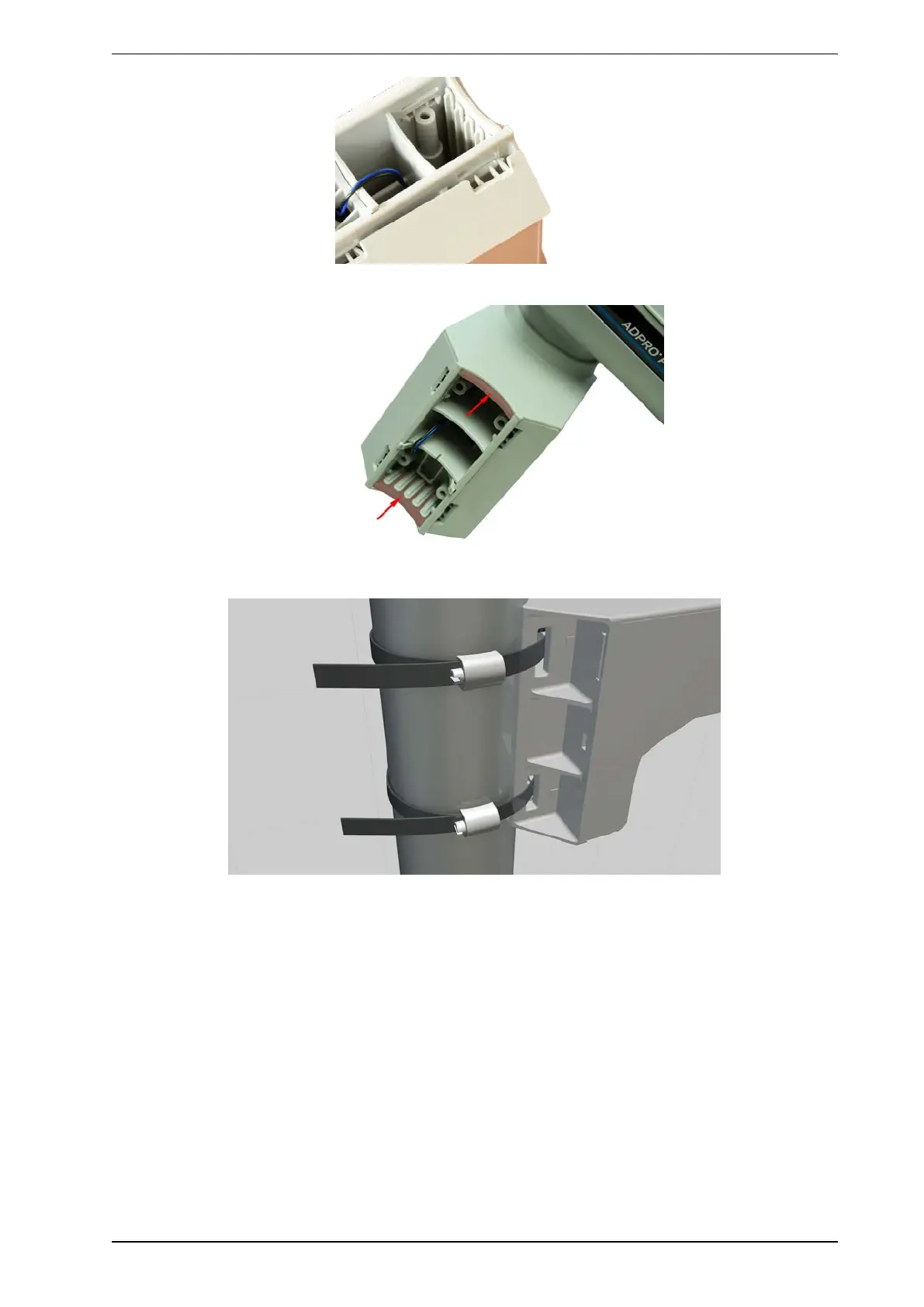

3. Insert the rounded molding (marked in red here) into the detector arm as shown.
4. Choose screw clips of a suitable diameter depending on the pole.
5. Guide the cables through the cable entry point in the detector arm casing.
Notes:
l At this time, align the detector arm approximately at the pole:
l The detector should be attached on the side of the pole to make subsequent alignment using the
alignment telescope easier.
l This can be configured accurately later at the time of commissioning without loosening the clips.
(Installation of detector in detector holder Pg.11)
6. Manually tighten the screw clips uniformly.
