2.6 Wall installation of detector holder
Notes:
l Ensure that the wall is sufficiently sturdy. If you mount on thin and dry construction walls, use special
hollow cavity plugs if necessary.
l Use sufficiently long screws with an external diameter of at most 5 mm and a flat screw head.

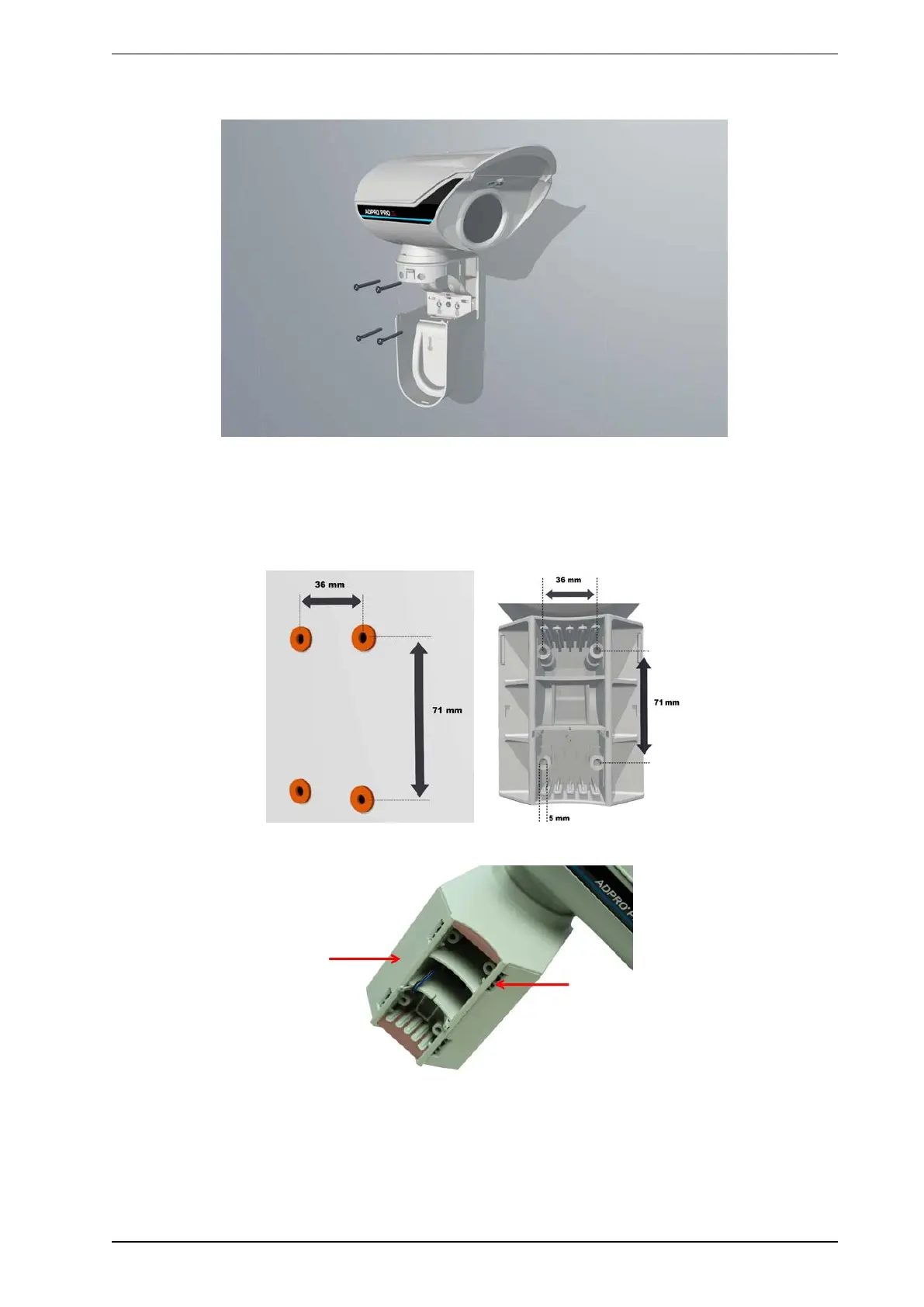

1. Drill and dowel as shown on a suitable wall.
2. Insert the straight moulds (marked in red) as shown into the detector arm.
3. Screw in the detector arm as shown, using suitable screws. The upper screws should have a threaded
length of a min. of 75 mm and the lower screws a min. of 60 mm.
