27386_05 13

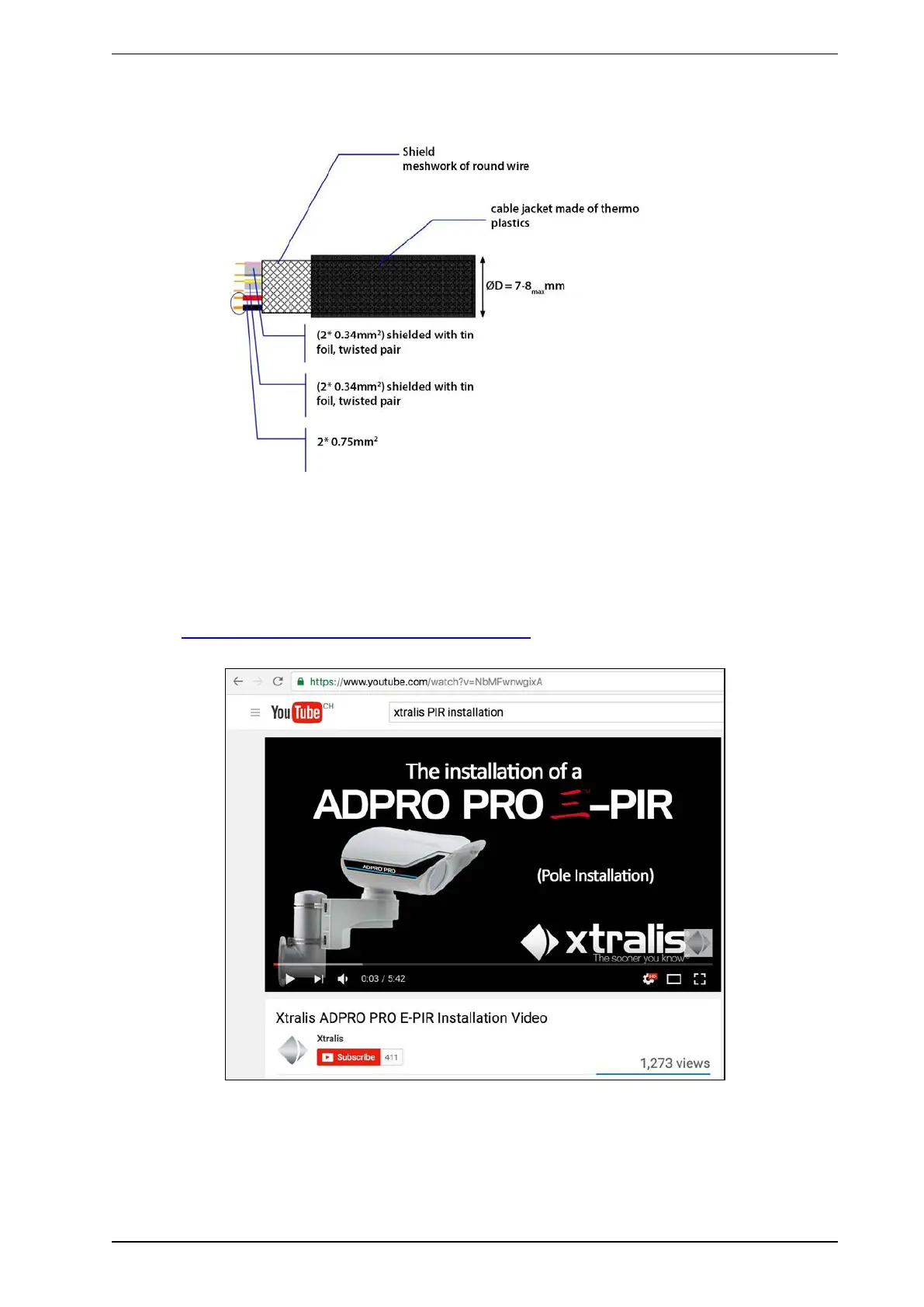

2.7.2 Recommendations for cable use
The following are the cable specifications for PRO E-detectors (cable colours may vary):
Peak voltage: 50V AC
Temperature range: -40 .. 80°C
Test voltages: Wire/wire 1500 V, wire/shield 1200 V
2.8 PRO E-Series Installation steps
Note: An installation video is available on YouTube,
https://www.youtube.com/watch?v=NbMFwnwgixA, It is recommended to watch it before
proceeding.
1. Remove the cable insulation on the terminal side by approximately 3 mm.
2. Open the detector arm as shown.
