Yale Assure Lock 2 User Manual

8
P/N YRD604-KD-BLE-0047 Rev A

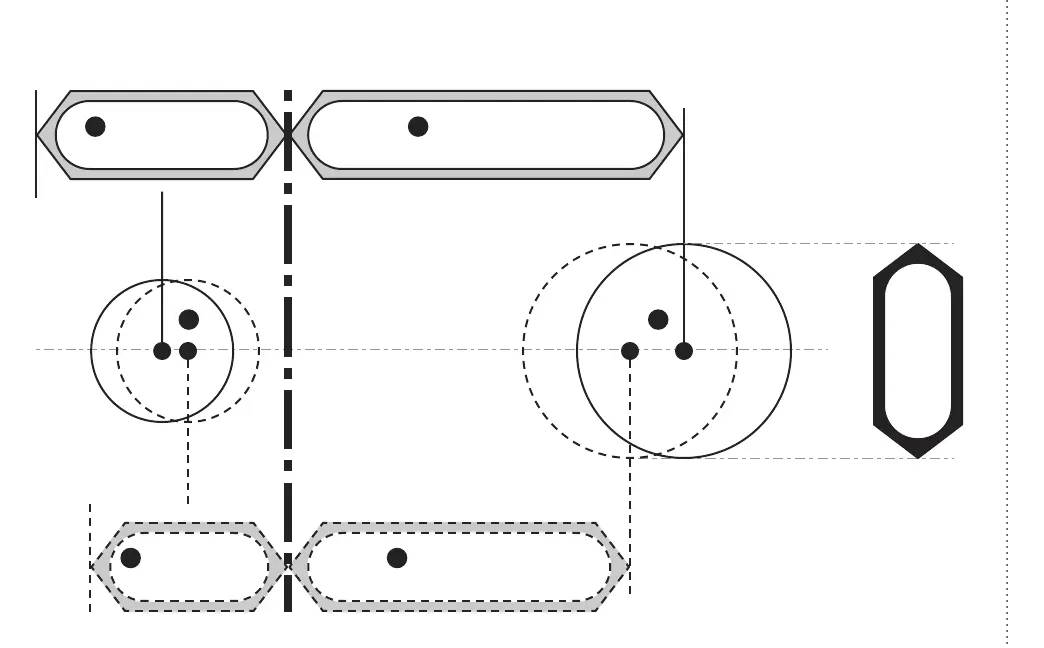

Marking Template for 11/2” (38mm) Face Bore
Center of
1” (25mm)
Edge Bore
Center of
1” (25mm)
Edge Bore
Centerline
Center of
11/2” (38mm)
Face Bore
Center of
11/2” (38mm)
Face Bore
11/2”
I G
13/8” (35mm)
Door Thickness
B
23/8” (60mm)
Backset
E
13/4” (44.5mm)
Door Thickness
C
23/4” (70mm)
Backset
F
Tear Along the Dotted Line

Yale Assure Lock 2 Specifications

General

Lock Type	Deadbolt
Connectivity	Bluetooth, Wi-Fi (with module)
Power Source	4 AA Batteries
Battery Life	Up to 1 year
Auto-Lock	Yes
Weight	Varies by model
Keypad Type	Touchscreen
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Installation	DIY, fits standard doors
Door Thickness Compatibility	1-3/8" to 2-1/4"
User Codes	Up to 25
Weather Resistance	Weather resistant
Backset	Adjustable 2 3/8" or 2 3/4"
Warranty	1-year on electronic parts
Finish	Satin Nickel, Oil Rubbed Bronze, Black Suede
Backup Power	9V battery terminal
