Yale Assure Lock 2 User Manual

13
P/N YRD604-KD-BLE-0047 Rev A

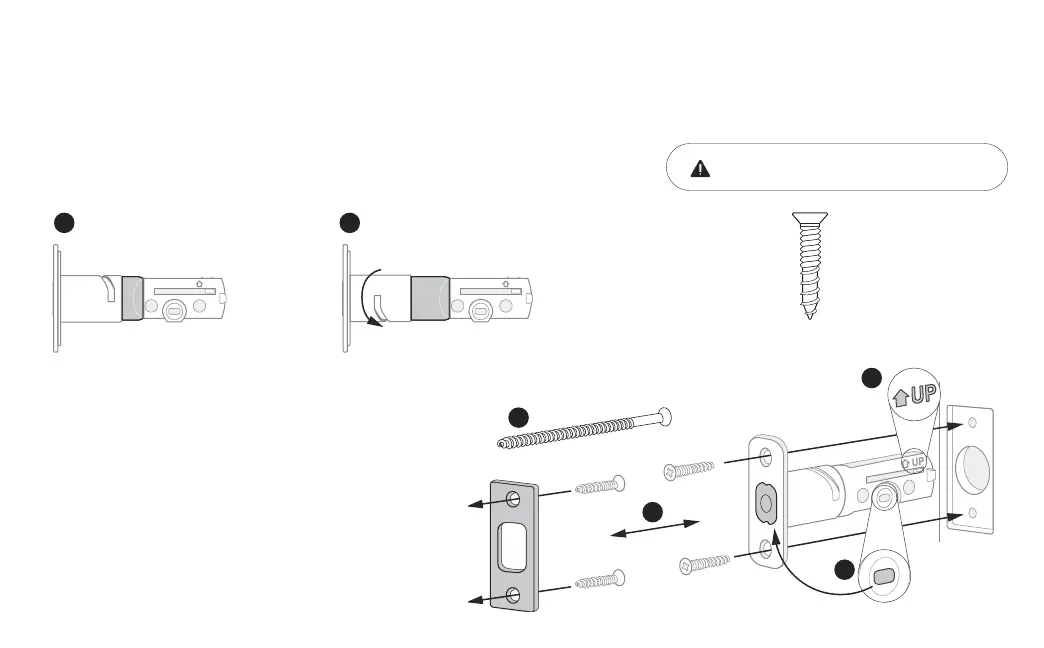

1. Correct deadbolt length is based on the backset. Refer to measurements
E and F on the Door Checker (page 5) to verify backset.
2. Align strike plate with deadbolt latch.
2a. (Optional) Security screws can be used in place of
the small strike plate screws.
3. Make sure UP arrow on the deadbolt is facing upwards.
4. Deadbolt latch must be in an unlocked position.
Note: If the deadbolt latch is extended, use a small flathead
screwdriver to rotate slot until deadbolt latch is retracted.
x 2 for Deadbolt Latch
x 2 for Strike Plate
(Actual size)
2
Install Deadbolt Latch
2-3/4
2-3/8
UP
23/8” Backset
(Out of box)
E
2-3/4
2-3/8
UP
23/4” Backset
(To adjust, twist neck by holding the body stable)
F
2a
2
3
4
Minimum strike pocket depth is 1”.

Yale Assure Lock 2 Specifications

General

Lock Type	Deadbolt
Connectivity	Bluetooth, Wi-Fi (with module)
Power Source	4 AA Batteries
Battery Life	Up to 1 year
Auto-Lock	Yes
Weight	Varies by model
Keypad Type	Touchscreen
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Installation	DIY, fits standard doors
Door Thickness Compatibility	1-3/8" to 2-1/4"
User Codes	Up to 25
Weather Resistance	Weather resistant
Backset	Adjustable 2 3/8" or 2 3/4"
Warranty	1-year on electronic parts
Finish	Satin Nickel, Oil Rubbed Bronze, Black Suede
Backup Power	9V battery terminal
