Yale Assure Lock 2 User Manual

11
P/N YRD604-KD-BLE-0047 Rev A
If you have confirmed that the existing holes are compatible with your new lock, please proceed to step 2 (skip step 1c).
If you need to make adjustments, go to
step 1c and find the closest match to each
aspect of your door on the Marking Template.

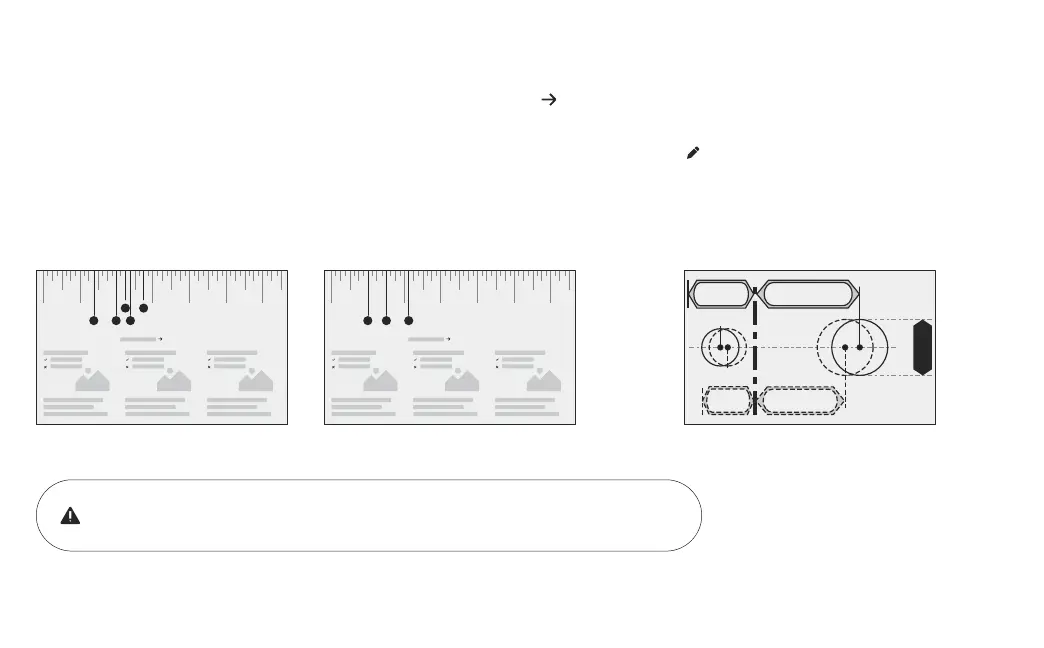

Tear off the Door Checker (pages 56) and follow the guidelines on both sides to
measure each aspect of your door and frame. There are some cases when existing
holes cannot be adjusted to be compatible.
Please do not drill any holes until you confirm that your door is compatible.
10 2 3 4 5 6
Door Checker Part 1
v
B A D
C E
10 2 3 4 5 6
Door Checker Part 2
H F G
1b
Check Door Measurements
If your door doesn’t have holes, please proceed to step 1c.

Yale Assure Lock 2 Specifications

General

Lock Type	Deadbolt
Connectivity	Bluetooth, Wi-Fi (with module)
Power Source	4 AA Batteries
Battery Life	Up to 1 year
Auto-Lock	Yes
Weight	Varies by model
Keypad Type	Touchscreen
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Installation	DIY, fits standard doors
Door Thickness Compatibility	1-3/8" to 2-1/4"
User Codes	Up to 25
Weather Resistance	Weather resistant
Backset	Adjustable 2 3/8" or 2 3/4"
Warranty	1-year on electronic parts
Finish	Satin Nickel, Oil Rubbed Bronze, Black Suede
Backup Power	9V battery terminal
