Yale Assure Lock 2

28
P/N YRD604-KD-BLE-0047 Rev A

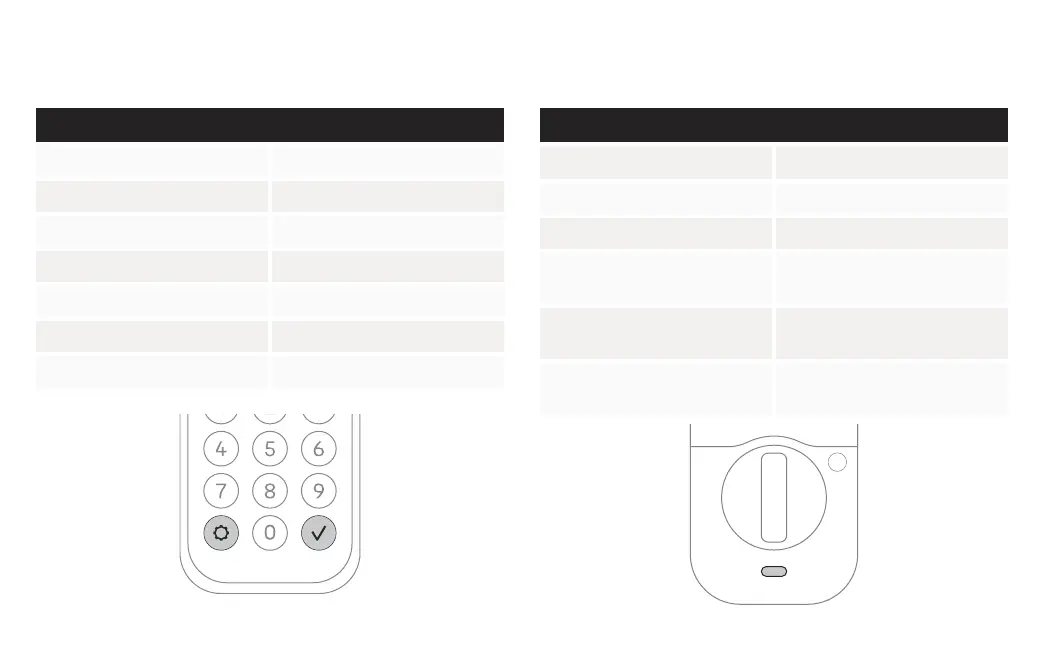

Interior Lock Alerts
LED indicator flashes blue Low battery levels 1, 2, and 3
LED indicator flashes red Locked state
LED indicator flashes green Unlocked state
LED indicator turns green for 3
seconds
Pairing success
LED indicator turns red for 3
seconds
Pairing failure
LED indicator intermittently
flashes yellow
Passage Mode is on (see page
30)
LED Alerts
Exterior Keypad Alerts
Gear flashes amber Low battery level 1
Gear flashes red Low battery level 2
Gear flashes red, then stays red Low battery level 3
Checkmark flashes Pairing success
Any key, then gear flash red Jammed lock
Gear flashes white Pairing
Gear flashes red during pairing Pairing failure
