Yale nexTouch User Manual

Privacy SwitchDPS

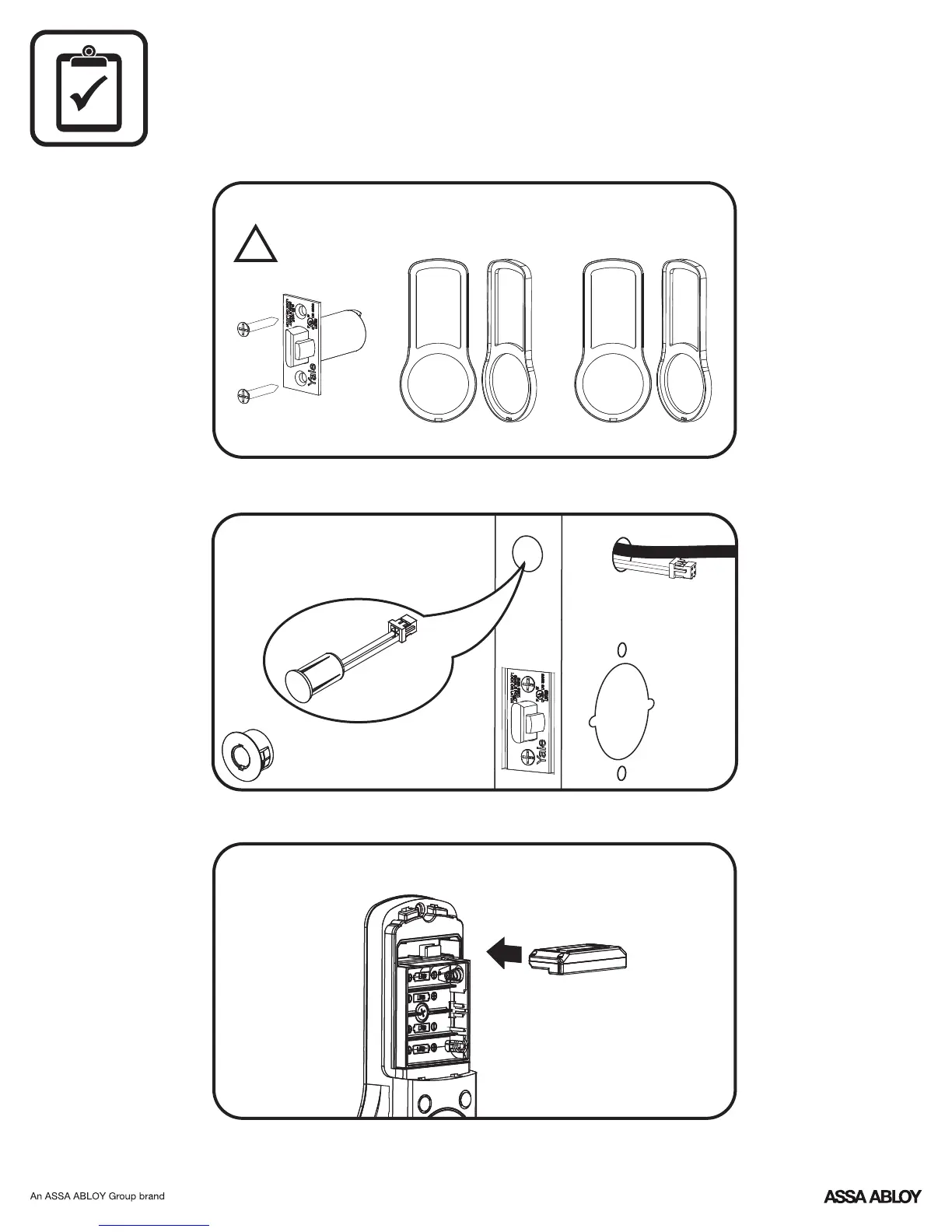

Metal Frame/Door Installations
Supplied plastic collars beMUST
installed for to function properly.DPS
Inside of Door
Door Position Switch Option
enables Privacy feature
Installation Options
Outside Gasket Inside Gasket2-3/8" Latchbolt
Adjusting for 1-3/8" Door (if necessary)
Network or Yale Accentra Key Module
Order 1-3/8" Thin Door Kit: 14-4761-0106
!
12
P/N 80-9150-0080-010 (10-17)

Yale nexTouch Specifications

General

Power Source	4 AA Batteries
Keypad Type	Touchscreen
Auto-Lock	Yes
Backup Key	Yes
Finish Options	Satin Nickel, Oil Rubbed Bronze
Door Thickness	1-3/8" to 2-1/4"
Backset	2-3/8" or 2-3/4"
Connectivity	None (standalone)
User Codes	Up to 500 (with Z-Wave), 25 (Standalone)
