Yale nexTouch User Manual

Name: Yale nexTouch
Brand: Yale
Rating: 4 (1 reviews)

30 pages

To Next Page

To Previous Page

P/N 80-9150-0080-010 (10-17)

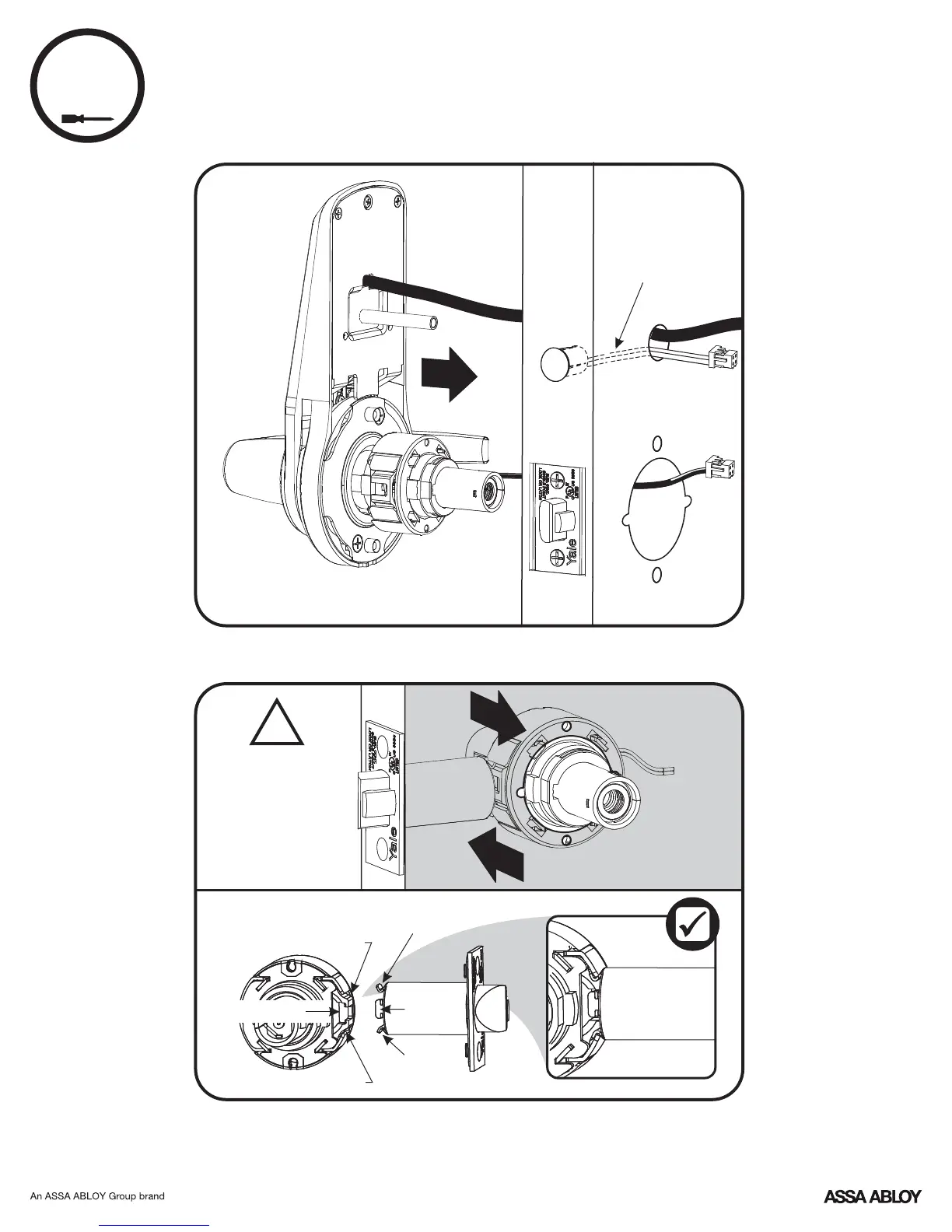

Installing Outside Assembly

Inside of Door

View from Outside of Door

"T" Tabs

Retractor Pocket

Mounting Flange

Two moving "T" tabs

must be fully captured

in retractor pocket.

Mounting Flanges

must be in Mounting

Flange Pockets.

Mounting Flange Pocket

Mounting

Flange

Mounting Flange Pocket

Thin door gaskets sold separately.

See Installation Options.

Optional DPS

Questions and Answers:

Need help?

Do you have a question about the Yale nexTouch and is the answer not in the manual?

General

Power Source	4 AA Batteries
Keypad Type	Touchscreen
Auto-Lock	Yes
Backup Key	Yes
Finish Options	Satin Nickel, Oil Rubbed Bronze
Door Thickness	1-3/8" to 2-1/4"
Backset	2-3/8" or 2-3/4"
Connectivity	None (standalone)
User Codes	Up to 500 (with Z-Wave), 25 (Standalone)
