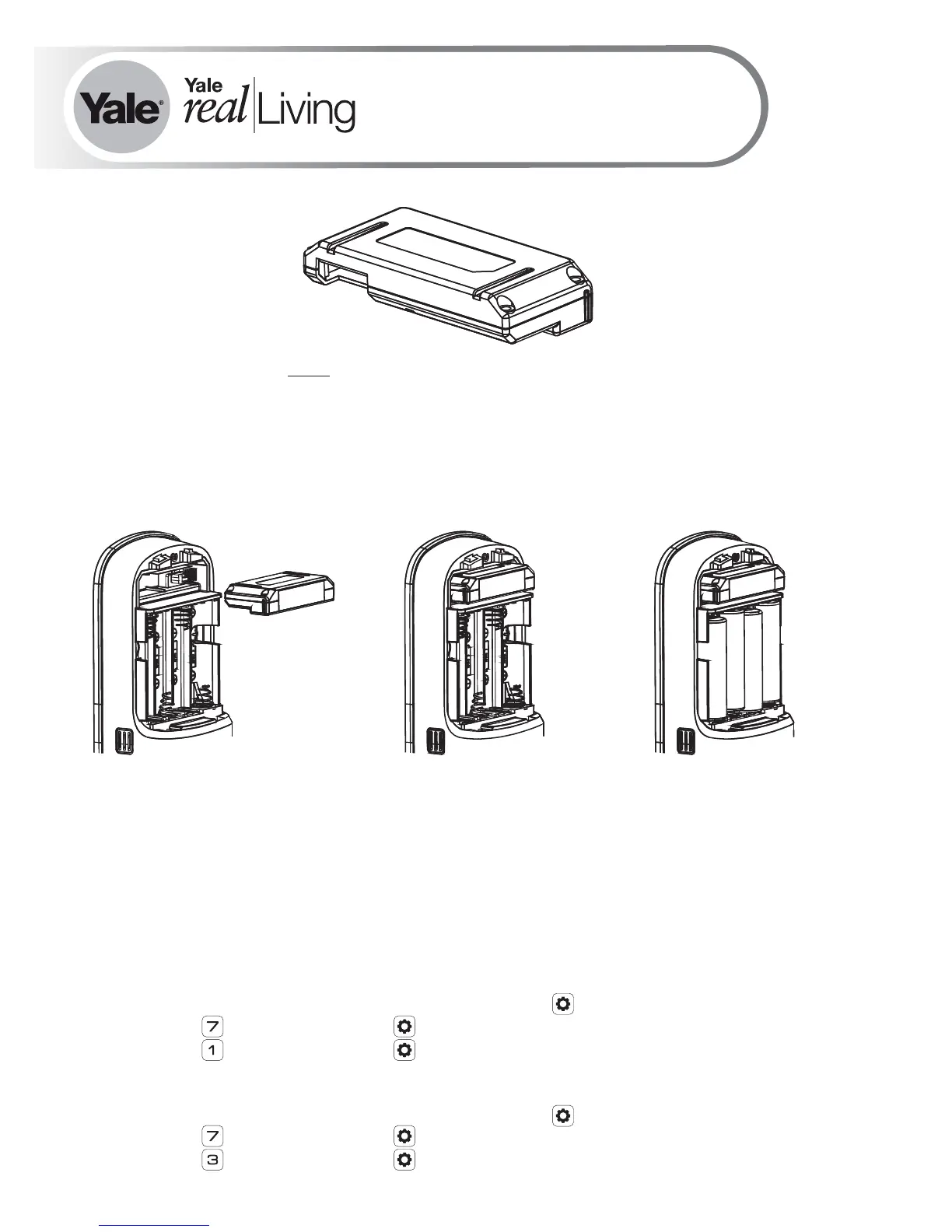

Yale ZigBee Module
®®
Installation and Programming Instructions
Installing the ZigBee Module
®
This device is a security enabled ZigBee product that is able to use encrypted ZigBee
messages to communicate to other security enabled ZigBee products. This device must be
used in conjunction with a Security Enabled ZigBee Controller in order to fully utilize all
implemented functions. This product can be operated in any ZigBee network with other
ZigBee certified devices from other manufacturers. All non-battery operated nodes within the
network will act as repeaters regardless of vendor to increase reliability of the network.
To Enroll the Module (Inclusion Mode):
Enter the 4-8 digit Master code followed by the key.PIN
Press the key followed by the key.
Press the key followed by the key.
To Unenroll the Module (Exclusion Mode):
Enter the 4-8 digit Master code followed by the key.PIN
Press the key followed by the key.
Press the key followed by the key.
Enrolling/Unenrolling the Network Module:
IMPORTANT: the batteries be removed priormust
to removing and/or inserting the network module:
Remove battery cover.
Remove batteries.
Remove and/or insert network module.
Reinstall batteries.
Replace cover.
P/N 202- - - Rev CAYR ZB INSTAL FUL
®
