8 Controls and Connections
02R User’s Guide

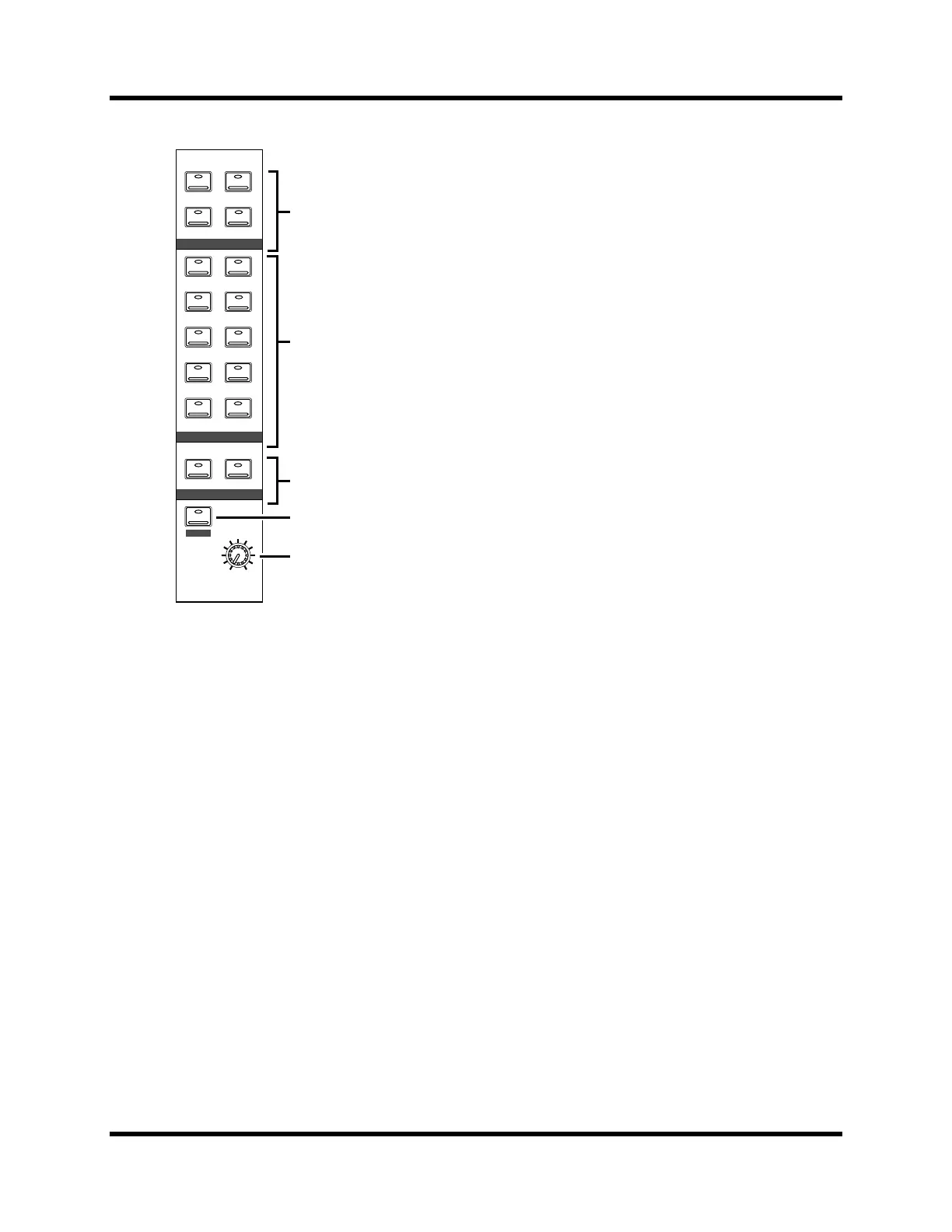

Monitor controls
23. STUDIO buttons
These buttons select the monitor signal sent to the
STUDIO MONITOR OUTPUT connectors.
24. CONTROL ROOM buttons
These buttons select the monitor signal sent to the
C-R MONITOR OUT connectors.
25. TALKBACK buttons
These buttons allow the control room to talk to the studio and to
SLATE control room information to the output buses.
26. SOLO button
This button activates the SOLO bus. Use the ON buttons to select a
channel to monitor.
27. C-R LEVEL
This control sets the level of the C-R MONITOR OUT connectors.
C-R
AUX 5
ST
AUX 6
AUX 5
MONO
AUX 6
DIM
2TR-D3 ST
2TR-D2 2TR-A2
2TR-D1 2TR-A1
SLATE T/B
SOLO
C-R
LEVEL
010
STUDIO
CONTROL ROOM
TALKBACK
M
Q
N
O
P
