Yamaha 02R Version 2 - MIDI Remote

MIDI 165
02R User’s Guide
MIDI Remote
The MIDI Remote function allows you to control other MIDI equipment
from the 02R. Connection is made using the MIDI IN and OUT
connections. Remote equipment can be controlled using the 02R faders,
rotary encoders, [ON] buttons, CURSOR buttons, and encoder wheel.
MIDI Remote operations are recorded by the automix, so real time
adjustments on other MIDI equipment can be automated.
The following MIDI equipment can be controlled from the 02R.
• Bus/Aux Master (controls bus and send levels on 02R)
• MIDI Machine Control
• Digital mixers—Yamaha Programmable Mixer 01, 02R, 03D
• GM tone generator
• XG tone generator
• Digital effects processors—Yamaha ProR3, REV500
• Pro Tools

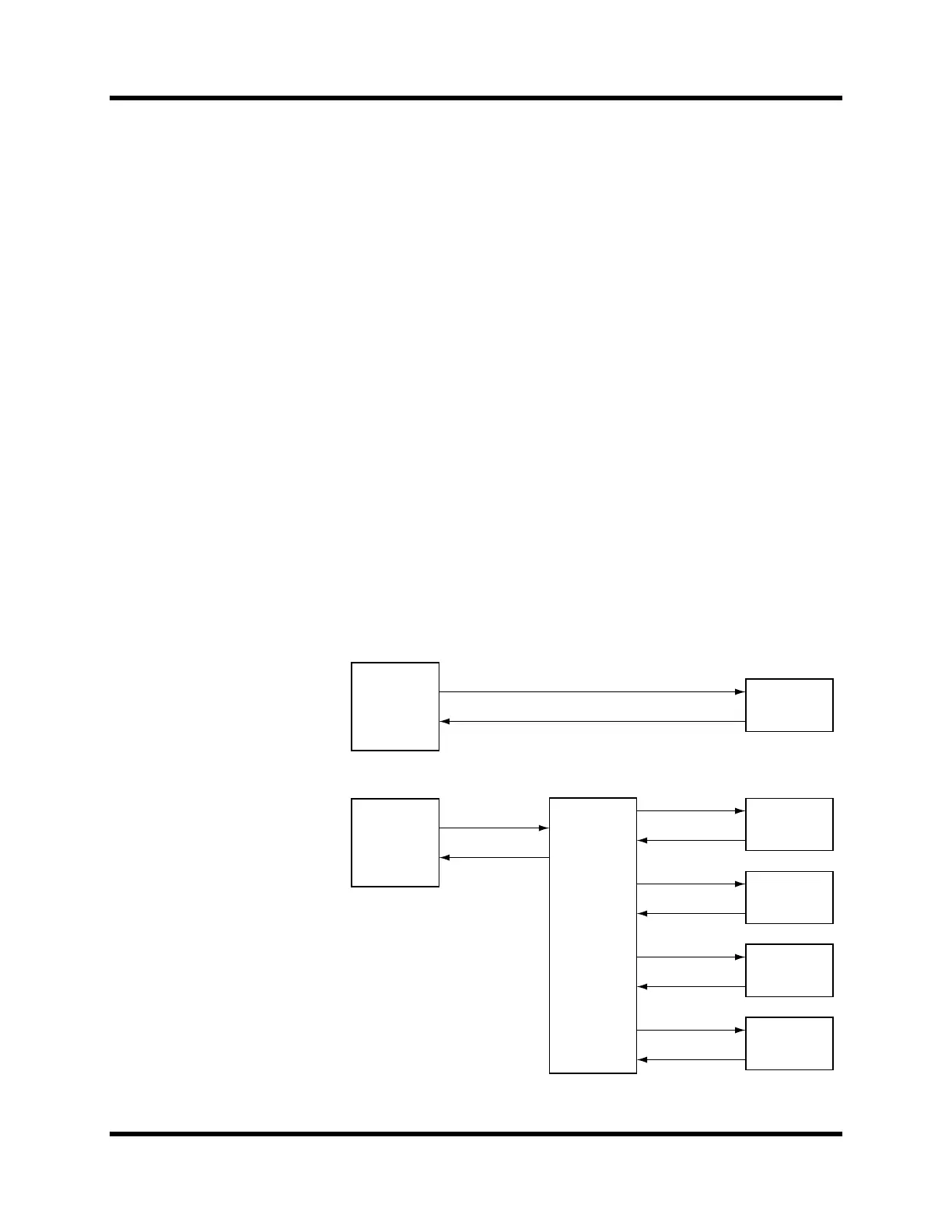

MIDI Remote Connections
Remote equipment is connected to the 02R using the MIDI IN and OUT
connections. Two typical setups are shown below.
02R
MIDI OUT
MIDI OUT
MIDI IN
MIDI IN
ProR3
MIDI OUT
MIDI OUT
MIDI IN
MIDI IN
02R
MIDI OUT
MIDI OUT
MIDI IN
MIDI IN
03D
MIDI OUT
MIDI OUT
MIDI IN
MIDI IN
REV500
MIDI OUT
MIDI OUT
MIDI IN
MIDI IN
XG
02R
MIDI OUT
MIDI OUT
MIDI IN
MIDI IN
MIDI
I/F
