Yamaha 03D Digital Mixing Console
02R controls can be used to remotely control the following parameters of a
Yamaha 03D Digital Mixing Console.
03D Setup

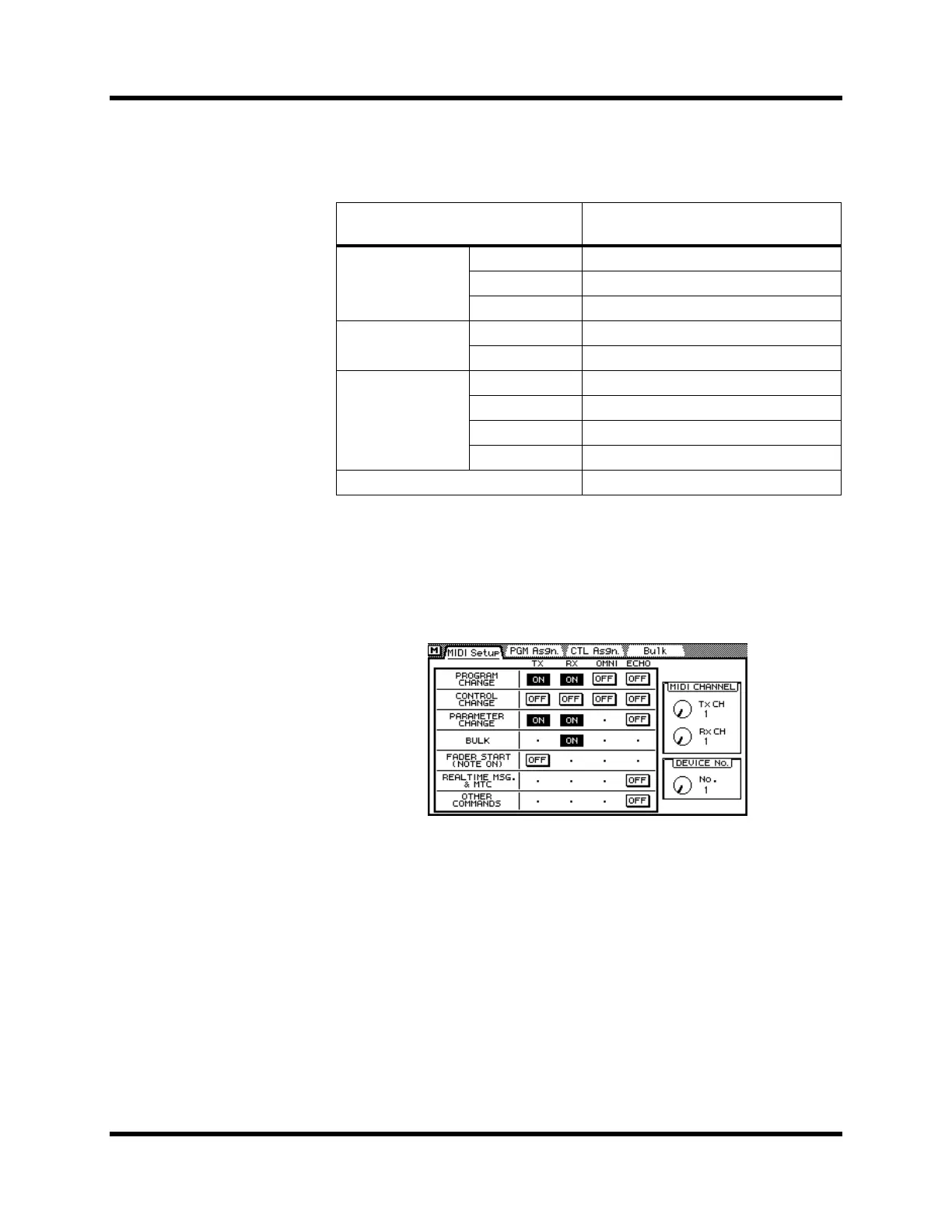

On the MIDI Setup page of the 03D, set the various MIDI parameters as
shown below. Set the MIDI Receive and Transmit Channels to match those
of the 02R
02R Controls
Parameters on the
03D Digital Mixing Console
Faders MIC 1–16 Channel levels 1–16
17/18 Stereo input level
STEREO Stereo output level
Rotary encoders TAPE 1–16 Input channel pans 1–16
EFF1 & EFF2 Effects returns levels 1 & 2
[ON] buttons MIC 1–16 Channel on/off 1–16
EFF1 & EFF2 Effects returns on/off 1 & 2
17/18 Stereo input on/off
STEREO Stereo output on/off
Display functions Mix scene recall
