MIDI Link
When several 02Rs are cascaded together, the master 02R can control a
number of functions, listed below, of the slave 02Rs via MIDI. Master and
slave 02Rs should be connected as shown below.
On the master 02R, the Tx 02R Link Message preference should be turned
on. On the slave 02Rs, the Rx 02R Link Message preference should be
turned on. See “Preferences” on page 198. MIDI messages are processed
regardless of the MIDI Channel settings.
Linked Commands
• Scene memory recall and store (including title)
• Automix memory recall and store (including title)
• Automix New and Undo
• Automix transport functions (Auto Rec, Record, Play, Stop,
Abort)
Linked Parameters
• Meter input module patch point
• Meter output module patch point
• Meter Peak Hold
• Automix Enable
• Automix fader Return (Edit Out)
• Automix fader Return Time (Edit Out)
• Automix Overwrite
• Automix Relative
• Automix Motor
• Automix Frame
• Automix MTC
• Automix generator start time Hour, minute, second, frame
• Automix timecode offset

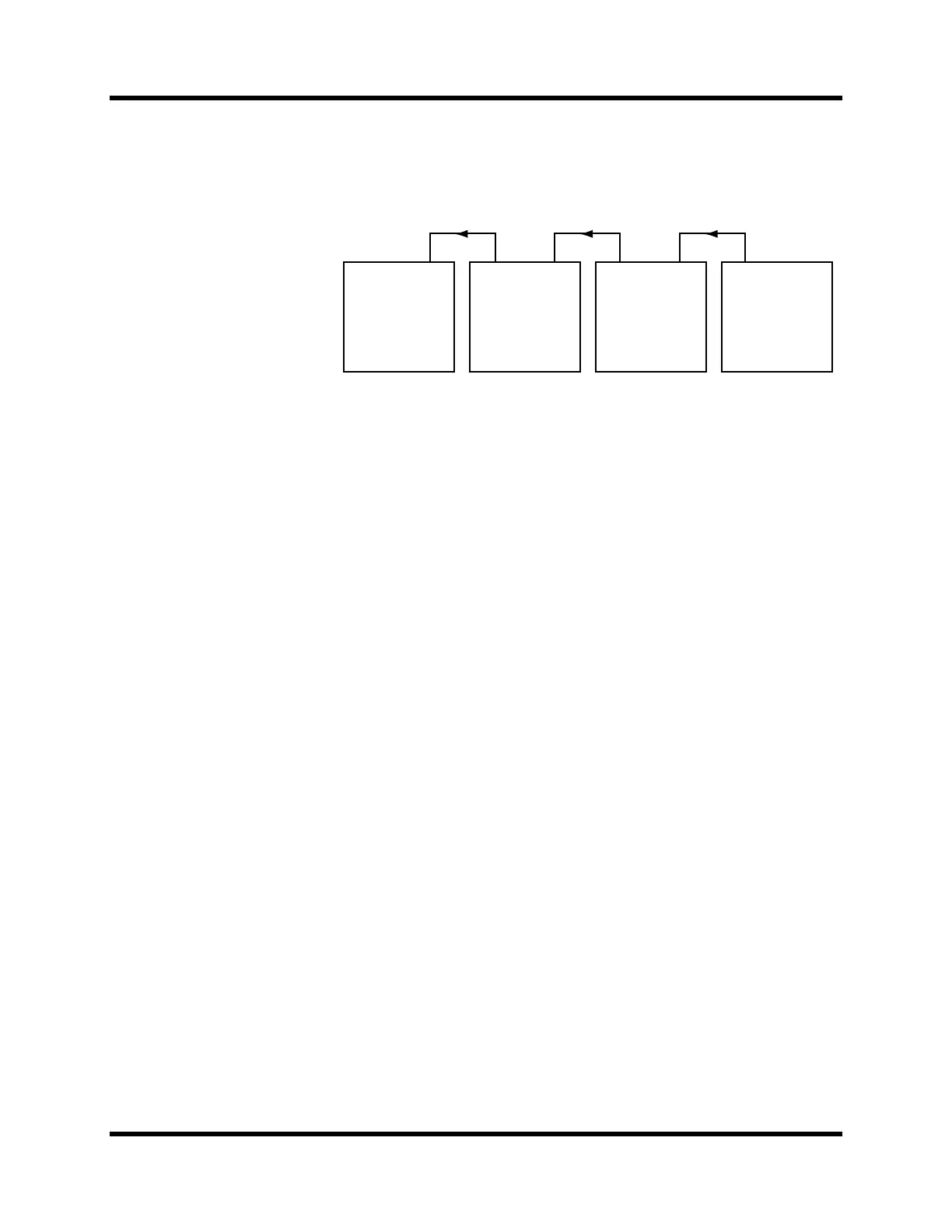

02R Master (0)
MIDI
OUT
MIDI
IN
MIDI
THRU
02R Slave (1)02R Slave (2)02R Slave (3)
MIDI
IN
MIDI
THRU
MIDI
IN
