Yamaha DSP-A2070 User Manual

1-2. SETUP
Before you start making connections make sure all related electronic components are turned OFF.

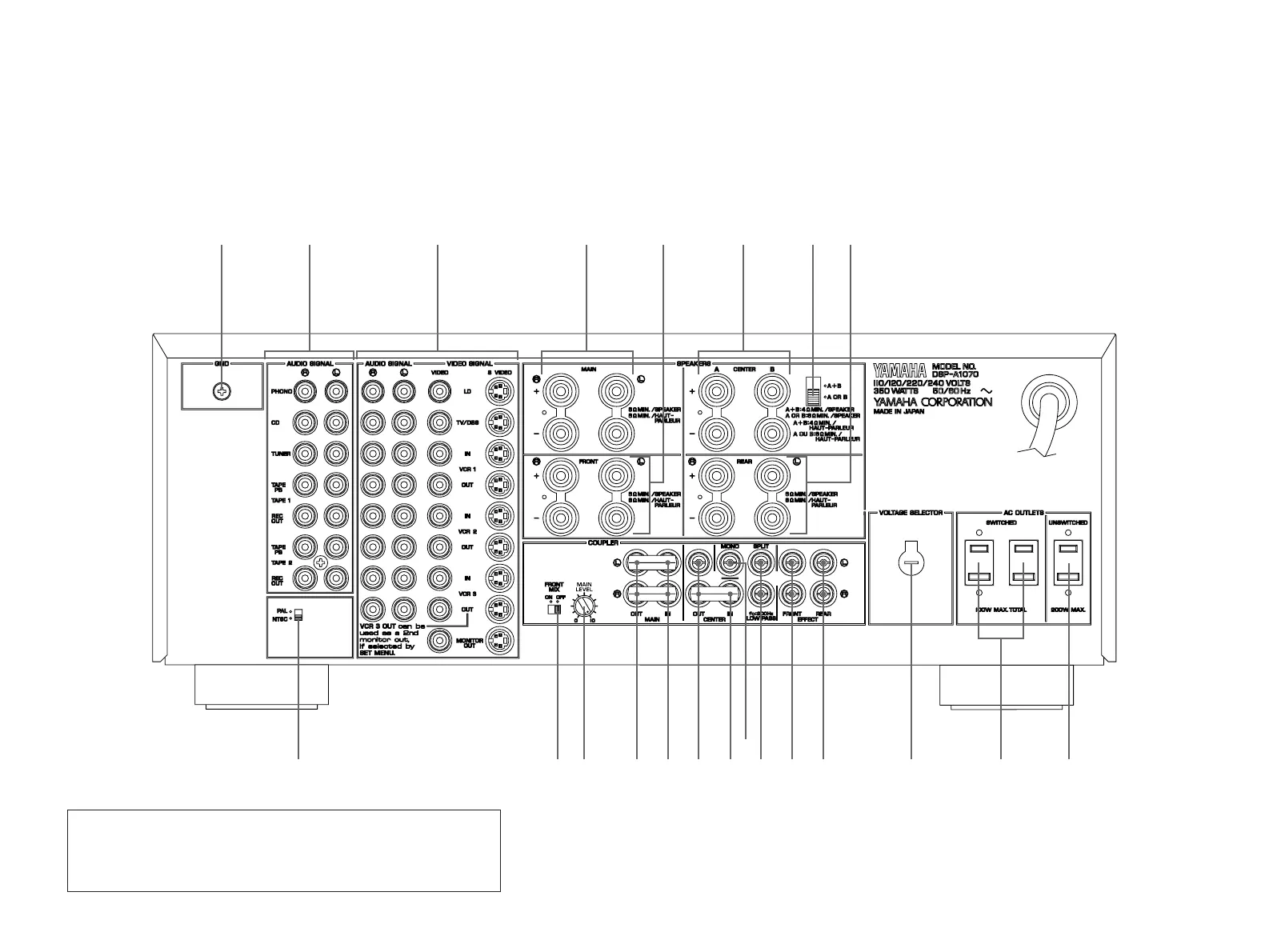

REAR PANEL
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED
TO PREVENT BLADE EXPOSURE.
10
240V
1
9 0 A B
2 3 4 5 6 7 8
C D E
F
G H I J LK
(General Model)

Yamaha DSP-A2070 Specifications

General

Number of Channels	7
Total Harmonic Distortion	0.015%
Damping Factor	80
Digital Inputs	Coaxial, Optical
Video Connections	Composite, S-Video
Channel Separation	60 dB
Speaker Load Impedance	4 ohms to 16 ohms
Signal-to-Noise Ratio	100dB (CD)
