26

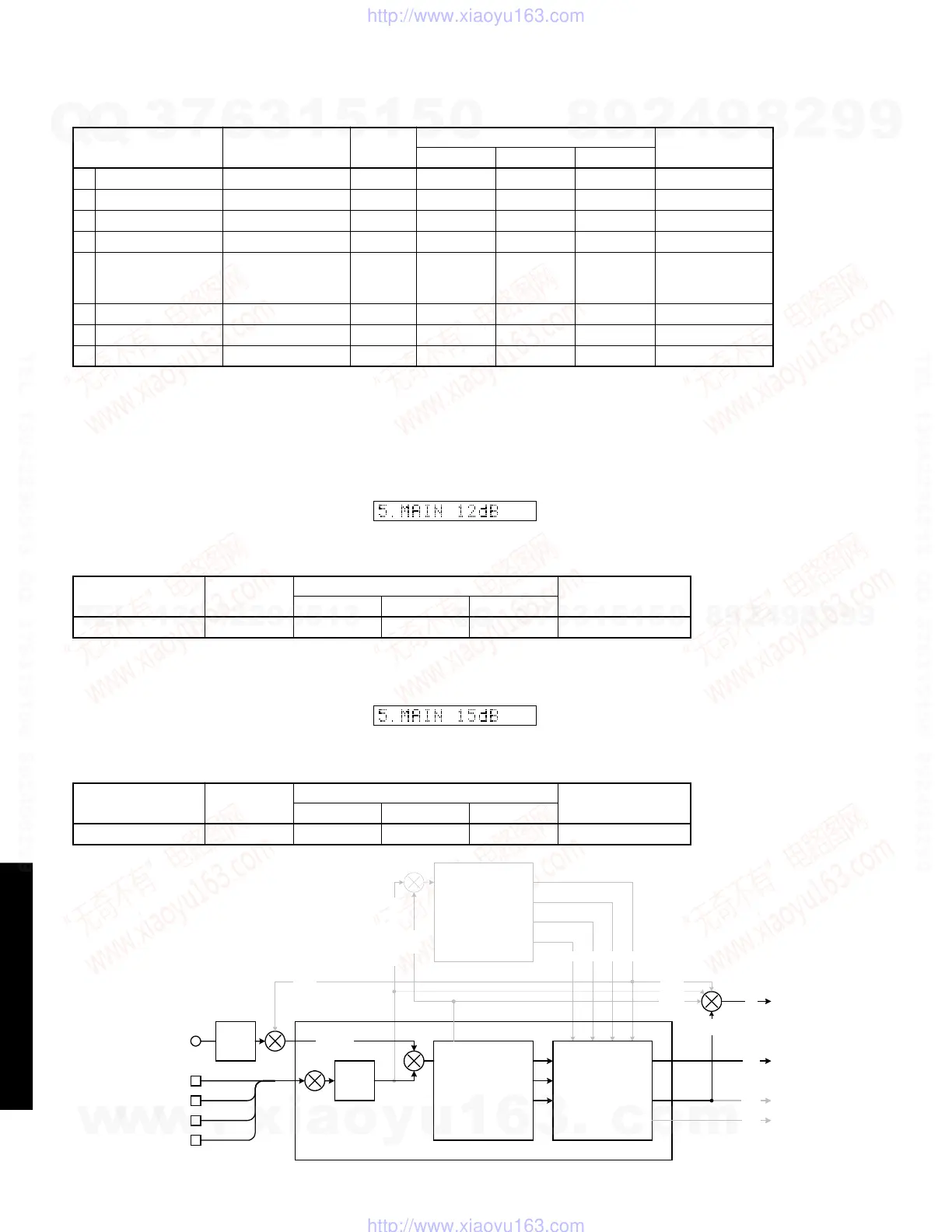

5. MARGIN CHECK
The signal is output including the head margin.
MAIN 12dB MARGIN
5. MARGINCHECK
MAIN12dBMARGIN
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
MAIN 18dB MARGIN MAIN18dBMARGIN
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
RC/- C/LFE LS/RS
( Digital Audio Data / PCM )
DIR L/R
A/D
DIR
Main DSP Sub DSP
AD or CS L/R
L/R
LS/RS
C/LFE
C/SW
RL/RR
FL/FR
CS49329
L/R
CS L/R
YSS L/R
CS L/R
L/R
YSS L/R
Virtual or HP
L/R
Digital
Analog
Same as
"1. YSS"
(automatic
selection)
Same as
"1. YSS"
(automatic
selection)
Reference data
INPUT: DVD ANALOG (Both ch)
Sub-menu Input level Volume
SPEAKER OUTPUT (1kHz)
SUBWOOFER
MAIN L/R CENTER RL/RR
OUTPUT (50Hz)
1 MAIN: SMALL 0dB
1kHz Both ch, -20 dBm
-10 dB +10.8 dBm - ∞ - ∞ - ∞
2 CENTER: NONE
1kHz Both ch, -20 dBm
-10 dB +8.0 dBm +10.8 dBm - ∞ - ∞
3 LFE/BASS: MAIN
50Hz Both ch, -20 dBm
-10 dB - ∞ - ∞ - ∞ +7.8 dBm
4 Front Mix: 5ch
1kHz Both ch, -20 dBm
-10 dB +10.8 dBm - ∞ - ∞ - ∞
5 Rear Center Power
1kHz Both ch, -20 dBm
-10 dB - ∞ - ∞ - ∞ - ∞
(Not applied to these models.
)
6 Tone Control Flat
1kHz Both ch, -20 dBm
-10 dB +10.8 dBm +10.8 dBm +10.4 dBm +0.8 dBm
7
Tone Control +10dB
1kHz Both ch, -20 dBm
-10 dB +13.0 dBm +10.8 dBm +10.4 dBm +0.8 dBm
8
Tone Control -10dB
1kHz Both ch, -20 dBm
-10 dB +8.8 dBm +10.8 dBm +10.4 dBm +0.8 dBm
(Shaded items not used in this example)
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBm -10 dB +10.8 dBm - ∞ - ∞ - ∞
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBm -10 dB +13.8 dBm - ∞ - ∞ - ∞
