RX-V340/RX-V340RDS/
HTR-5630/HTR-5630RDS/DSP-AX340
RX-V340/RX-V340RDS/HTR-5630/HTR-5630RDS/DSP-AX340
30

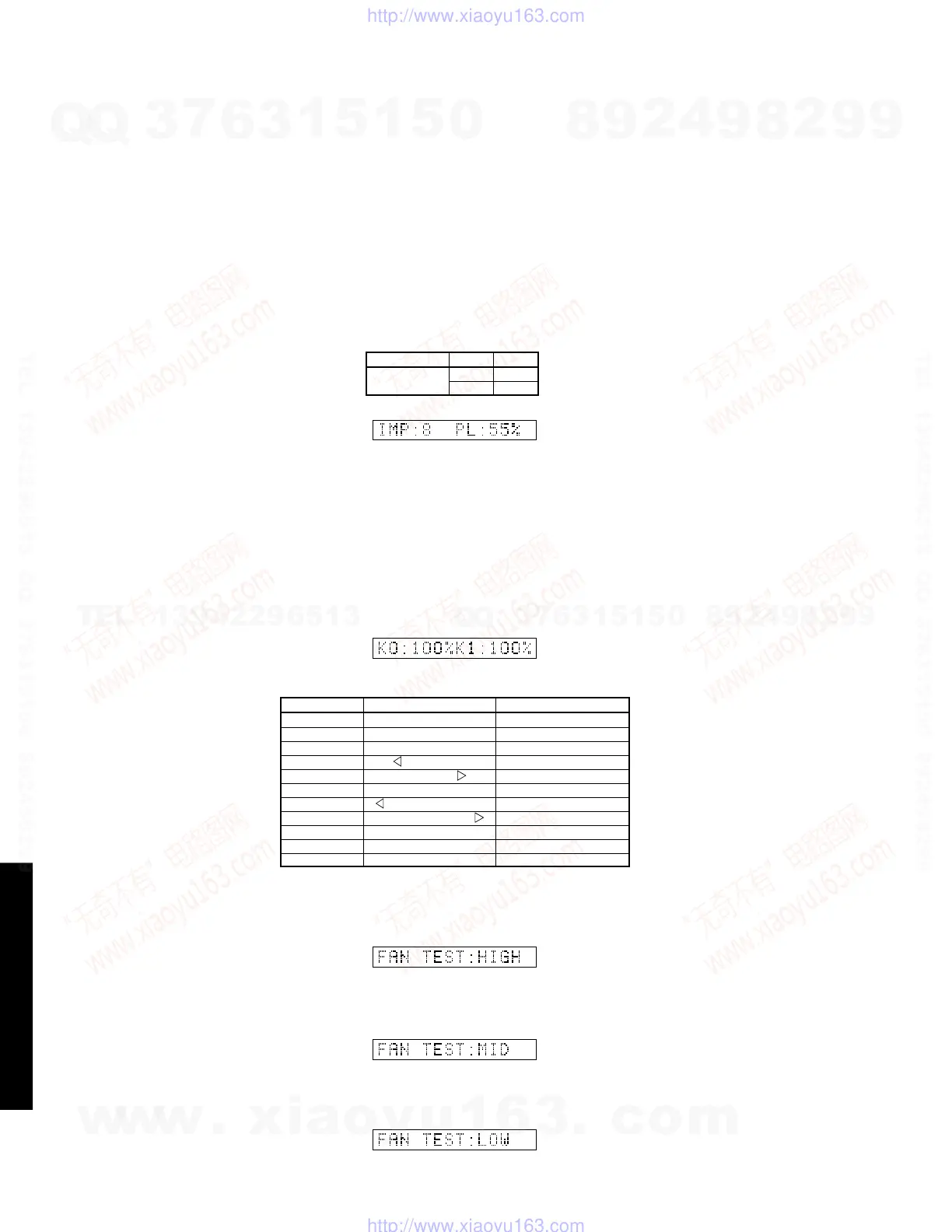

IMP SW/POWER LIMIT (Impedance/power limiter
detection)
IMP: 8 or 4 ohm impedance switch setting
(Not applied to these models.)
PL: Power limiter detection value
The voltage value of pin No. 91 of IC472 is displayed,
using 5V/256 as standard.
The port output is controlled by using the input voltage
value of pin No. 91 of IC472.
When higher than VthH, the port output is changed
from H to L.
When lower than VthL, the port output is changed from
L to H.
Note:
Vth = Threshold voltage
IMPSW/POWERLIMIT(インピーダンス/パワーリミッ
ターの検出)
IMP:インピーダンスSW検出の値
(このモデルには適用されません。)
PL: パワーリミッター検出の値
IC472 91ピンの電圧値を5V/256を基準にして表示し
ます。
IC472 91ピンの入力電圧値により、ポート出力を制御
します。
VthHを越えた場合、ポート出力をHからLにします。
VthLを下回った場合、ポート出力をLからHにします。
PORT VthL VthH
No.87 2.48V 3.08V U, C, J models
2.70V 3.30V A, B, G, R, T, K models
Display (%) K0 K1
0 - 6 INPUT SELECT LEFT INPUT MODE
7 - 13 INPUT SELECT RIGHT 6CH INPUT
14 - 21 STEREO EDIT PRESET
22 - 31 PROGRAM FM/AM
32 - 41 PROGRAM TUNING MODE
42 - 53 PRESET PAGE MEMORY
54 - 63 PRESET/TUNING PTY SEEK MODE
64 - 72 PRESET/TUNING PTY SEEK START
73 - 80 TONE SELECT EON
81 - 88 TONE DOWN RDS MODE
89 - 95 TONE UP
[Table 1]
K0/K1 (Panel key of main unit)
A/D of the key fails to function properly when the standard
value is deviated. In this case, check the constant of
partial pressure resistor, solder condition, etc. Refer to
table 1.
K0/K1(本体パネルキー)
キーのA/Dは基準値から外れると、正常な動きをしませ
ん。Table1をご覧になり、各キーの分圧抵抗の定数、ハン
ダ不良等の確認をしてください。
FAN DRIVE TEST (For models so equipped)
HIGH (Not applied to these models.)
FAN DRIVE TEST (For models so equipped)
LOW (Not applied to these models.)
FANDRIVETEST(ファン駆動テスト
HIGH:ファン駆動強(このモデルには適用されません。)
FAN DRIVE TEST (For models so equipped)
MID (Not applied to these models.)
FANDRIVETEST(ファン駆動テスト
MID:ファン駆動中(このモデルには適用されません。)
FANDRIVETEST(ファン駆動テスト)
LOW:ファン駆動弱(このモデルには適用されません。)
なお、出力が無い状態ではIC472 91ピンの入力電圧は
約4.9Vです。
