RX-V340/RX-V340RDS/HTR-5630/HTR-5630RDS/DSP-AX340
35
RX-V340/RX-V340RDS/
HTR-5630/HTR-5630RDS/DSP-AX340


Tuner mode 0 (*1)
Tuner mode 1 (*1)
Tuner with (1) / without (0)
RDS with (1) / without (0)
VIDEO format: PAL (1) / NTSC (0) (J model only)

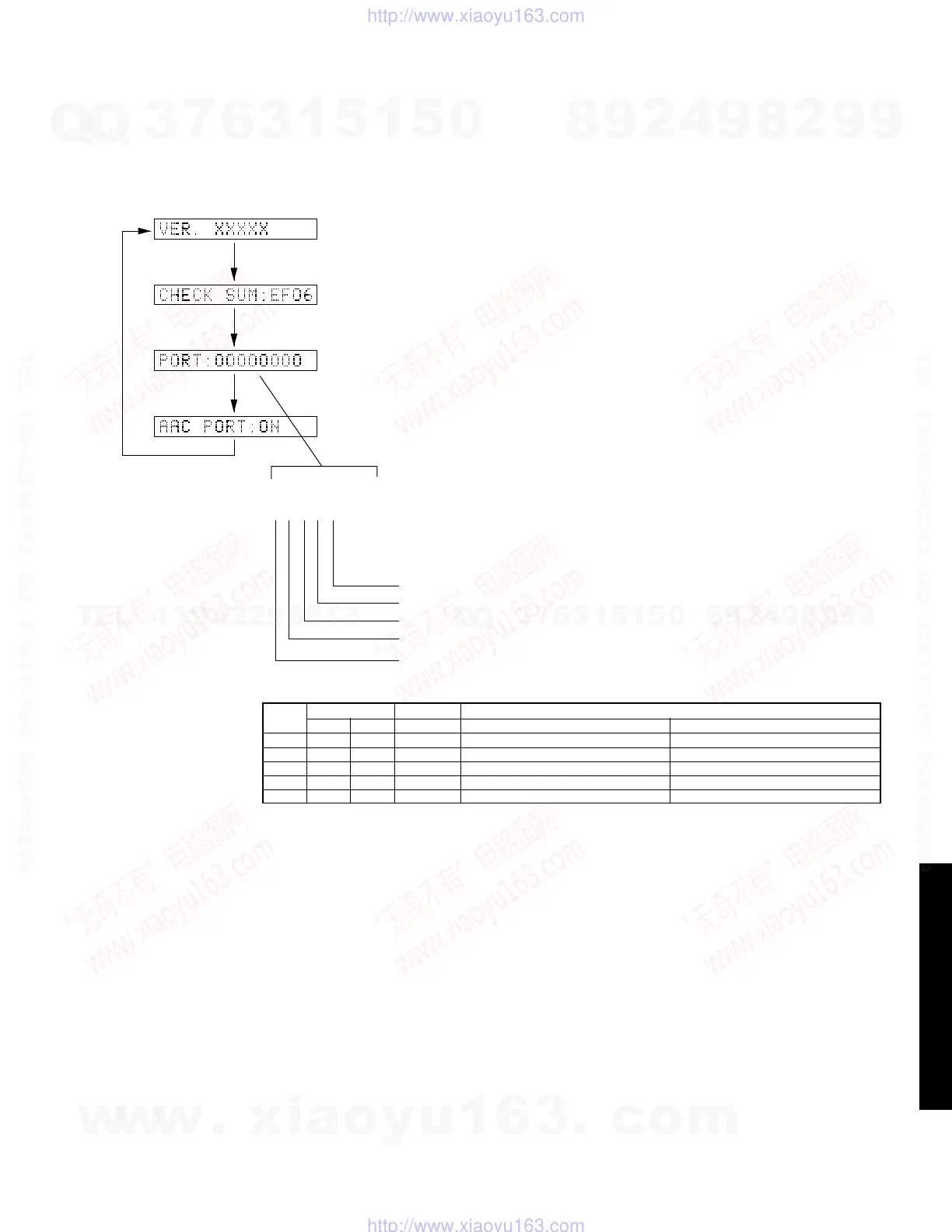

15. MICROPROCESSOR INFORMATION
The version, checksum and the port specified by the
microprocessor are displayed. The signal is processed
using EFFECT OFF. The checksum is obtained by adding
the data at every 8 bits for each program area and
expressing the result as a 4-figure hexadecimal data.
*1
Version / 
Release 1 digit / Main version 2 digit / DSP version 2 digit
Checksum / 
A: All area
Check of port setting for judging microprocessor function

Display of AAC function detection port state

15.マイコン情報






Type Tuner mode Port 3 Frequency range
1 0 (type 2) FM AM
000 76.0-90.0MHz / 100kHz 531-1611kHz / 9kHz
110 87.5-108.0MHz / 50kHz 531-1611kHz / 9kHz
201 87.5-107.9MHz / 200kHz 530-1710kHz / 10kHz
3 1 1 Low 87.5-108.0MHz / 100kHz 530-1710kHz / 10kHz
High 87.5-108.0MHz / 50kHz 531-1611kHz / 9kHz
