Yamaha DSP-AX861 - Details of DIAG menu; 1. BYPASS

35
RX-V861/HTR-6080/DSP-AX861SE/DSP-AX861
RX-V861/HTR-6080/DSP-AX861SE/
DSP-AX861
Input level Volume
SPEAKER OUT SUBWOOFER
OUTPUT
1.ANALOG BYPAS
● ダイアグメニュー詳細
1. BYPASS
サブメニュー操作によりANALOG BYPASS/DSP
BYPASSが選択可能です。
ANALOGBYPASS
アナログ入力の音声信号をPUREDIRECTでFRONT
L/Rへ出力します。

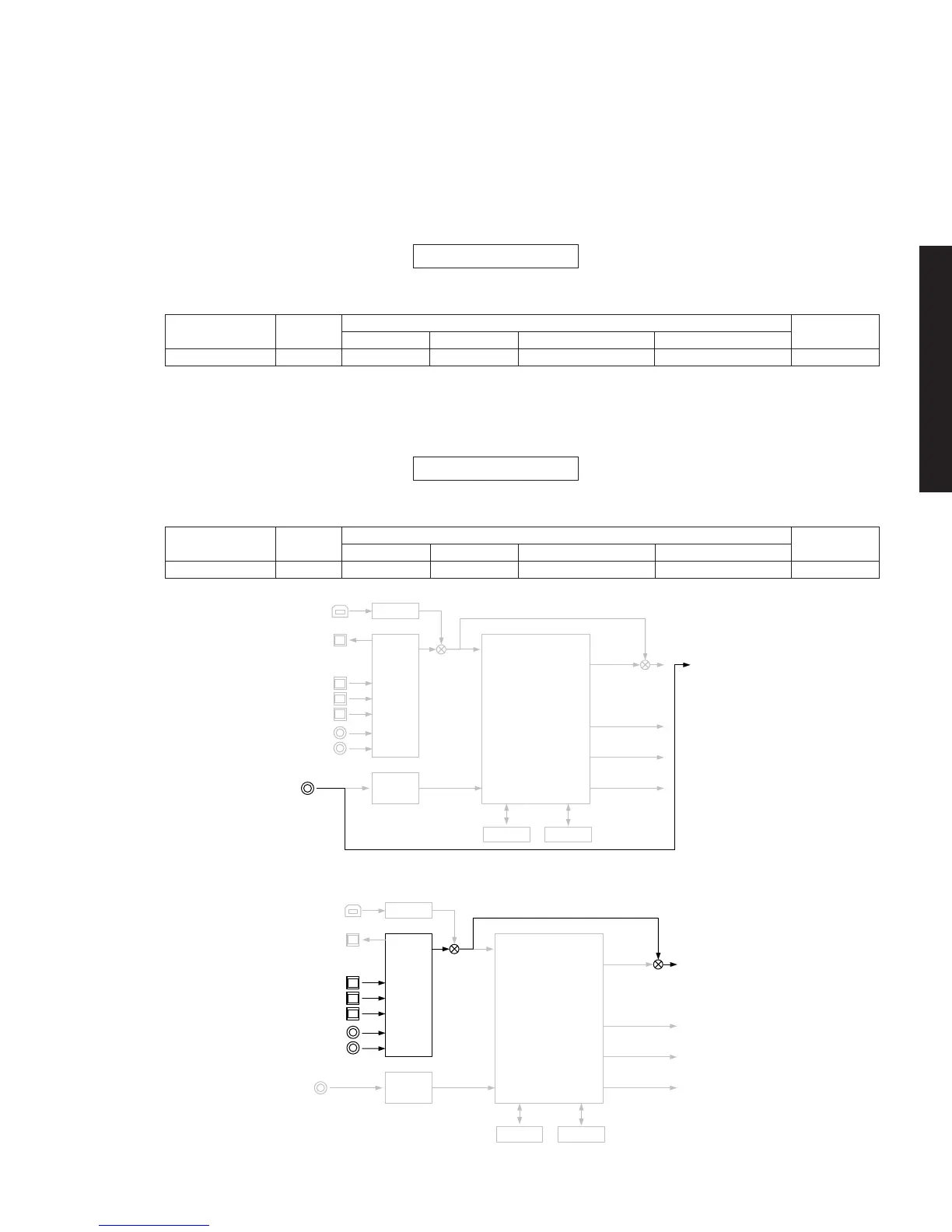

• Details of DIAG menu
1. BYPASS
Using the sub-menu, it is possible to select ANALOG
BYPASS output or DSP BYPASS output.
ANALOG BYPASS
The analog input audio signal is output to FRONT L/R
by PURE DIRECT.
INPUT: DVD ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
1.DSP BYPASS
Both ch, -20 dBm +6.0 dB
FRONT L/R
+12.0 dBm
CENTER
-∞
SURROUND L/R
-∞ -∞
DSPBYPASS
デジタル入力の音声信号をPUREDIRECTでFRONT
L/Rへ出力します。
DSP BYPASS
The digital input audio signal is output to FRONT L/R
by PURE DIRECT.
DIR
LC89057
DSP
(DECODE)
(POST PROCESSING)
TI D70Y
A/D
PCM1803
DRAM
FL / FR
C / SW
SL / SR
SBL / SBR
ROM
XMDT
(U, C)
SURROUND BACK L/R
-∞
Input level Volume
SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: DVD ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT L/R
+12.0 dBm
CENTER
-∞
SURROUND L/R
-∞ -∞
SURROUND BACK L/R
-∞
ANALOG BYPASS
(Shaded items not used in this example)
DSP BYPASS
DIR
LC89057
DSP
(DECODE)
(POST PROCESSING)
TI D70Y
A/D
PCM1803
DRAM
FL / FR
C / SW
SL / SR
SBL / SBR
ROM
XMDT
(U, C)
(Shaded items not used in this example)
