Videoinformation
入力されている映像信号の情報を表示します。
Video information
Displays the information of image signals being input.
VIDEO IN 480p
Example / 例
1k - 1dB/44
1 kHz, -1 dB / 44.1 kHz
The test tone (1 kHz, -1 dB / 44.1 kHz) is output.
1 kHz, -61 dB / 44.1 kHz
The test tone (1 kHz, -61 dB / 44.1 kHz) is output.
Mute / 44.1 kHz
No signal is output.
XM tone / 44.1 kHz
The XM tone / 44.1 kHz is output.
ISO tone / 44.1 kHz
The ISO tone /44.1 kHz is output.
1 kHz, -1 dB / 32.0 kHz
The test tone (1 kHz, -1 dB / 32.0 kHz) is output.
1 kHz, -61 dB / 32.0 kHz
The test tone (1 kHz, -61 dB / 32.0 kHz) is output.
Mute / 32.0 kHz
No signal is output.
XM tone / 32.0 kHz
The XM tone / 32.0 kHz is output.
ISO tone / 32.0 kHz
The ISO tone / 32.0 kHz is output.
XM bus power: OFF
The power of XM module is turned off.
Mute /44
XM Tone/44
ISO Tone/44
1k - 1dB/32
1k -61dB/32
Mute /32
XM Tone/32
ISO Tone/32
Bus Power:OFF

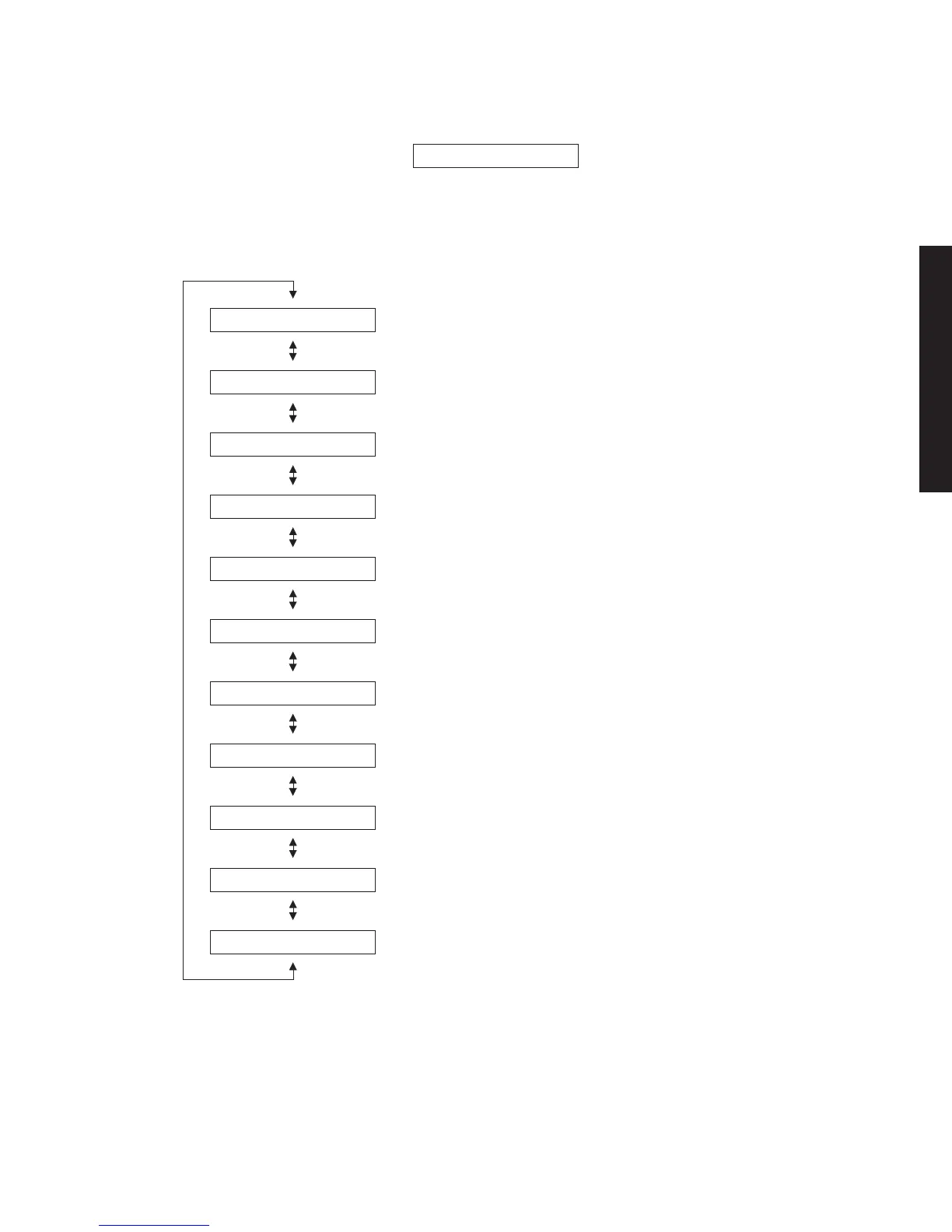

12. XMSTATUS（U、Cmodels）12. XM STATUS (U, C models)
The output check of XM radio antenna module is ex-
ecuted.
1k -61dB/44
