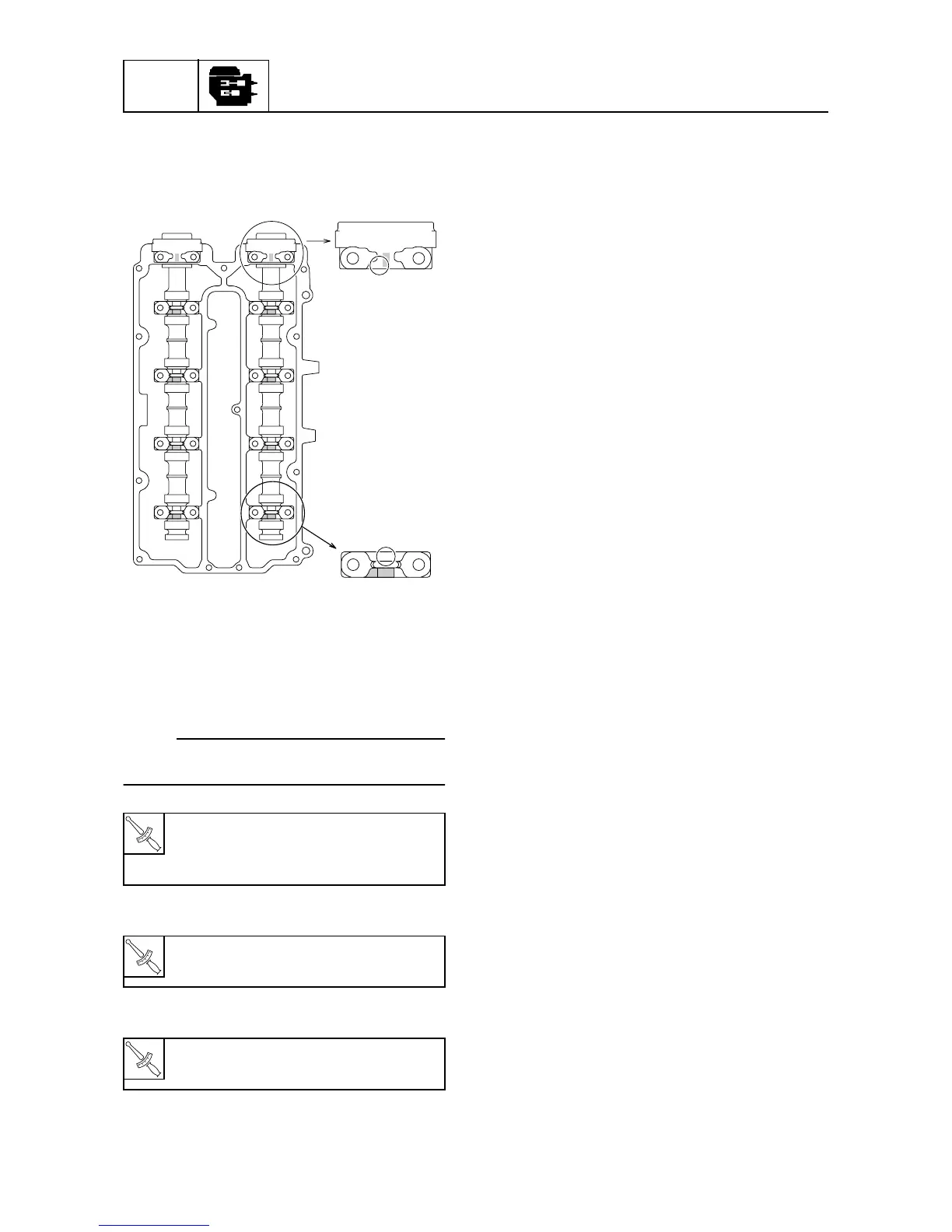

4. Install the camshaft caps in the proper
position as shown and with the stamped
numbers facing upside down.
5. Tighten the camshaft cap bolts to the
specified torques in two stages and in the
sequence shown.
NOTE:
Apply engine oil to the camshaft cap bolts
before installation.
6. Install the fuel pump bracket.
7. Install the cylinder head cover.
T
R
.
.
Camshaft cap bolt:
1st: 8 N·m (0.8 kgf·m, 5.8 ft·lb)
2nd: 17 N·m (1.7 kgf·m, 12 ft·lb)
T
R
.
.
Fuel pump bracket:
17 N·m (1.7 kgf·m, 12 ft·lb)
T
R
.
.
Cylinder head cover:
8 N·m (0.8 kgf·m, 5.8 ft·lb)
S60C5730
5
2A
1
1
A
7
2A
2
2A
3
2A
4
2A
5
2A
8
2A
9
2A
10
2A
6
1
A
6
7
8
9
10
1
1
A
1
2
3
4
5
