Yamaha F100C - Power Trim and Tilt Motor (F100 C)

60C5D11
7-86
1
2
3
4
5
6
7
8
9

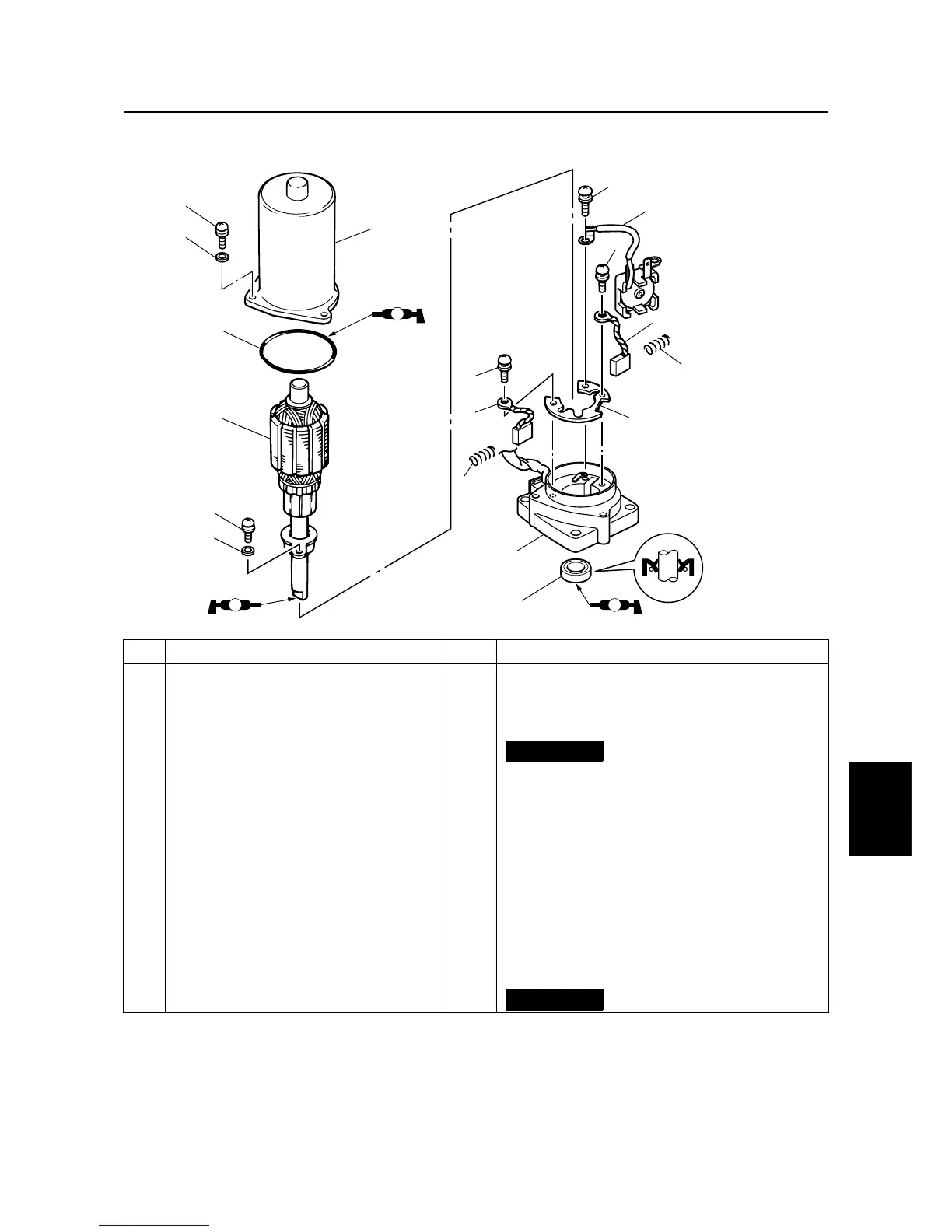

Power trim and tilt motor (F100C)
7
No. Part name Q’ty Remarks
1 Screw 3 M5
×
12 mm
2 Washer 3
3Yoke 1
4 O-ring 1
Not reusable
5 Armature 1
6 Screw 1 M4
×
10 mm
7 Washer 1
8 Screw 3 M4
×
10 mm
9 Circuit breaker 1
10 Brush 2
11 Brush spring 2
12 Brush holder 1
13 PTT motor base 1
14 Oil seal 1
Not reusable
S60C7945
1
3
4
5
6
8
8
10
10
11
11
9
12
13
8
14
7
2
AA
AA
AA
Gear pump (F100C) / Power trim and tilt motor (F100C)
