FUEL
FUEL PUMPS

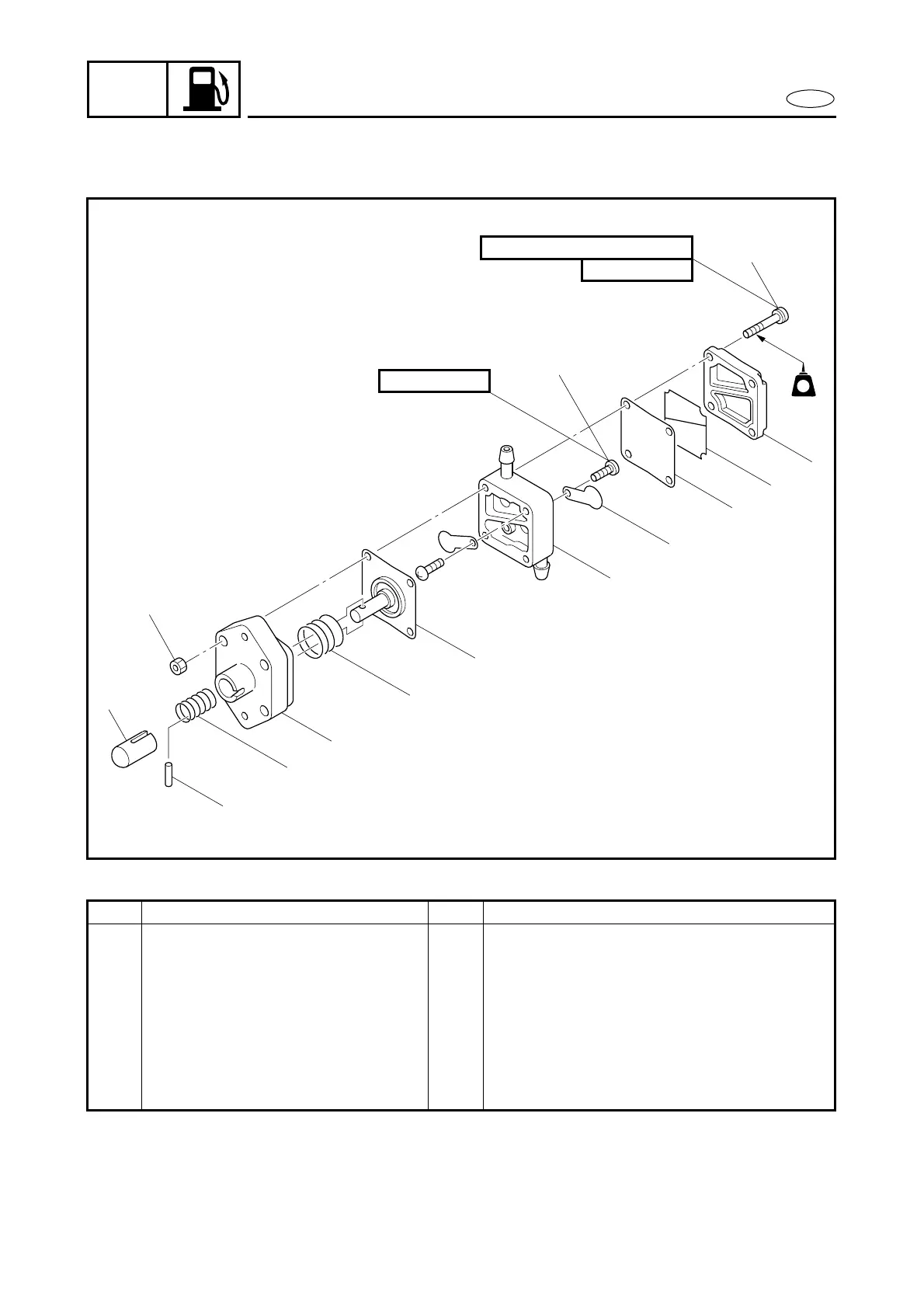

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
FUEL PUMP DISASSEMBLY Follow the left “Step” for removal.
1 Screw 4
2 Nut 4
3 Fuel pump cover 1
4 Gasket 1
5 Diaphragm 1
6 Fuel pump body 1
7 Screw 2
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
5 × 35 mm
4 × 8 mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
LT
LT
572572
