Yamaha F100X - PTT Motor Exploded Diagram

7-34
E
BRKT
PTT MOTOR
PTT MOTOR

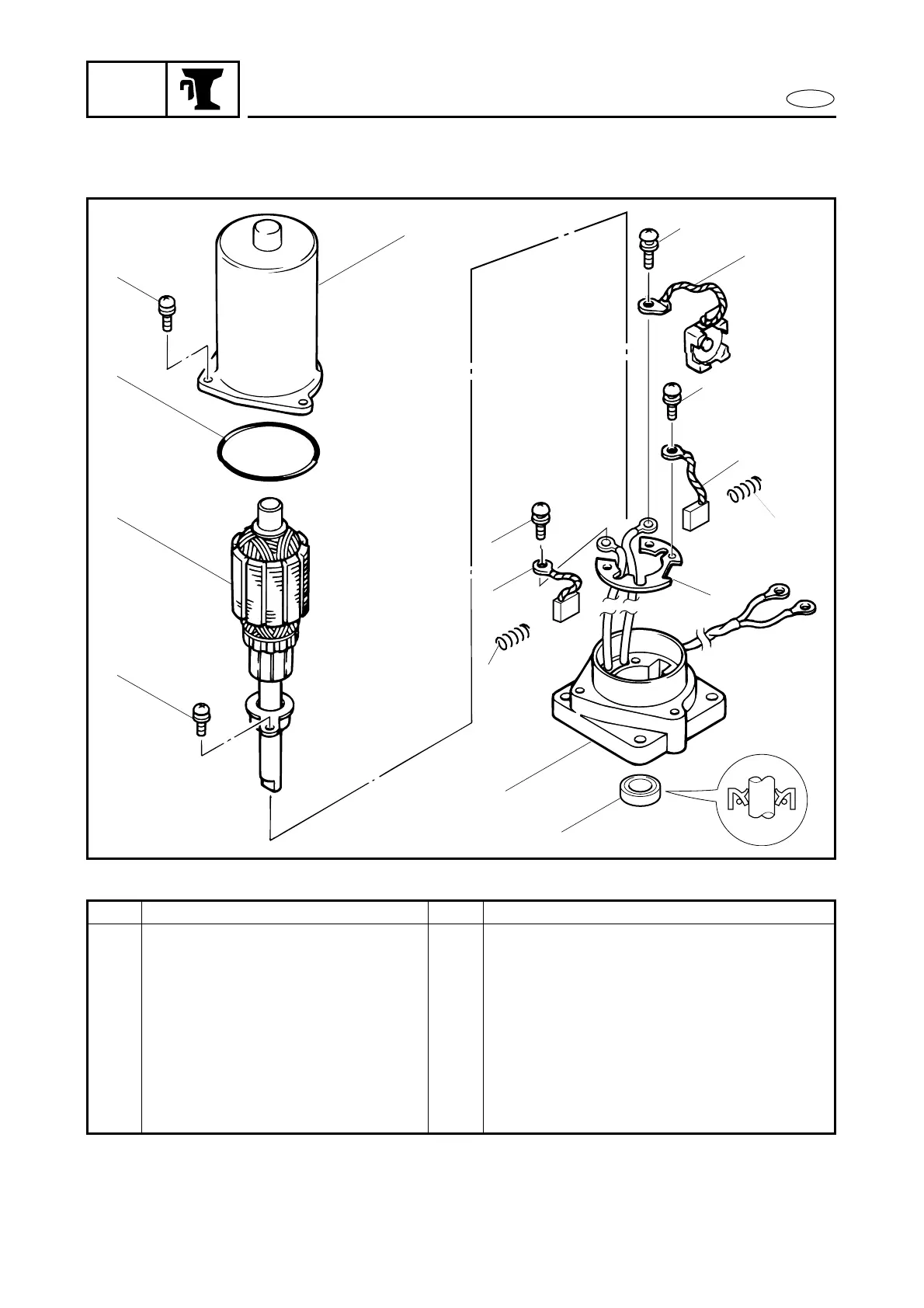

EXPLODED DIAGRAM
1
2
3
5
4
6
6
7
7
8
8
9
10
12
6
11
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PTT MOTOR DISASSEMBLY Follow the left “Step” for removal.
1 Screw 3
2 Yoke assy. 1
3 O-ring 1
4 Screw 1
5 Armature assy. 1
6 Screw 3
7 Brush 2
8 Spring 2
