Yamaha F100X - Steering Bracket Exploded Diagram

7-13
E
BRKT

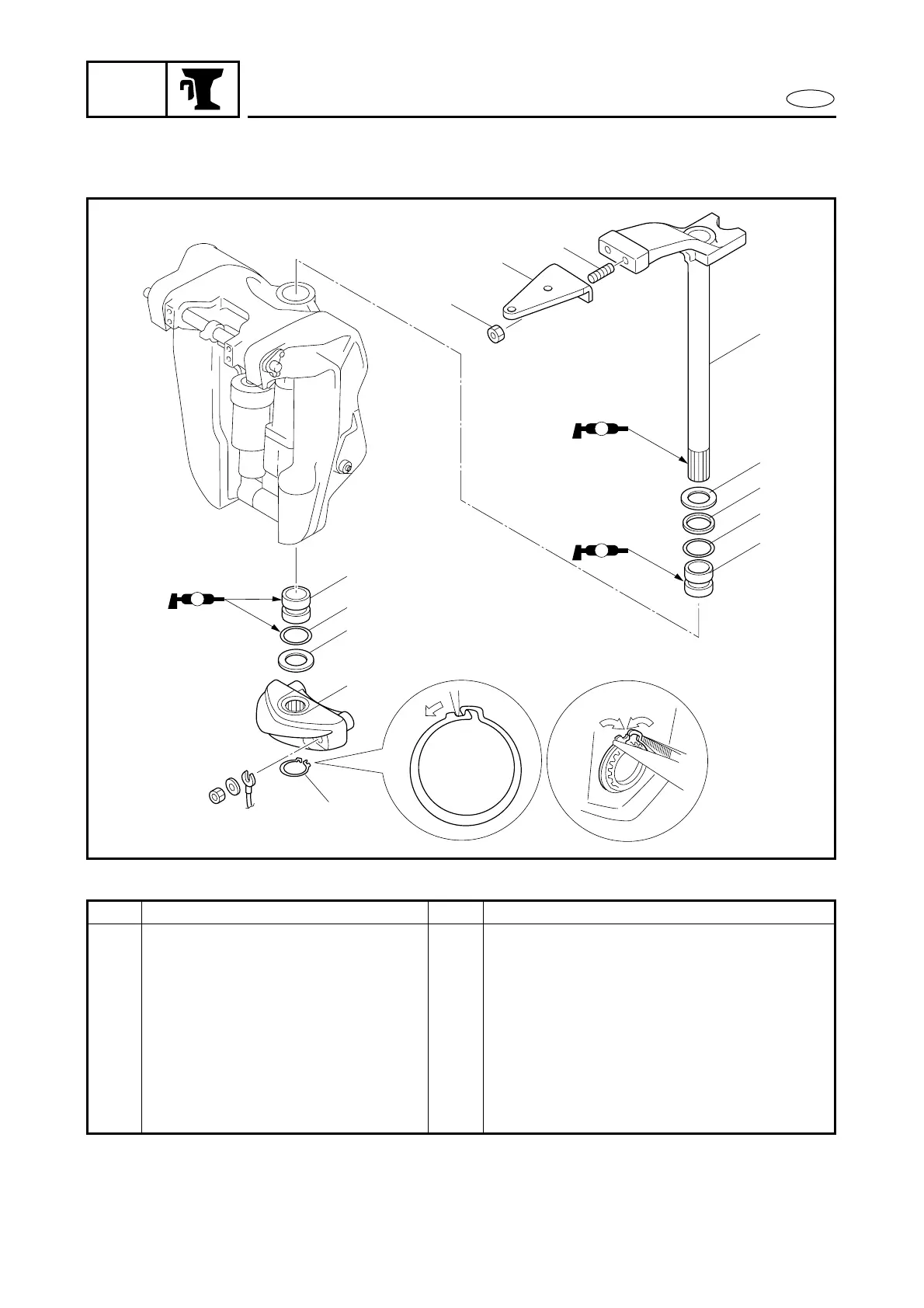

STEERING BRACKET
STEERING BRACKET
EXPLODED DIAGRAM
1
2
3
4
5
7
8
9
9
10
11
12
6
A
A
A
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STEERING BRACKET REMOVAL Follow the left “Step” for removal.
Upper case assy. Refer to “UPPER CASE ASSY.”.
1 Self-locking nut 2
2 Steering hook 1
3 Stud bolt 2
4 Circlip 1
5 Lower mount housing 1
6 Steering pivot shaft 1
7 Bushing 1
