Yamaha F100X - Tilt Rod Assy. Exploded Diagram

7-22
E
BRKT

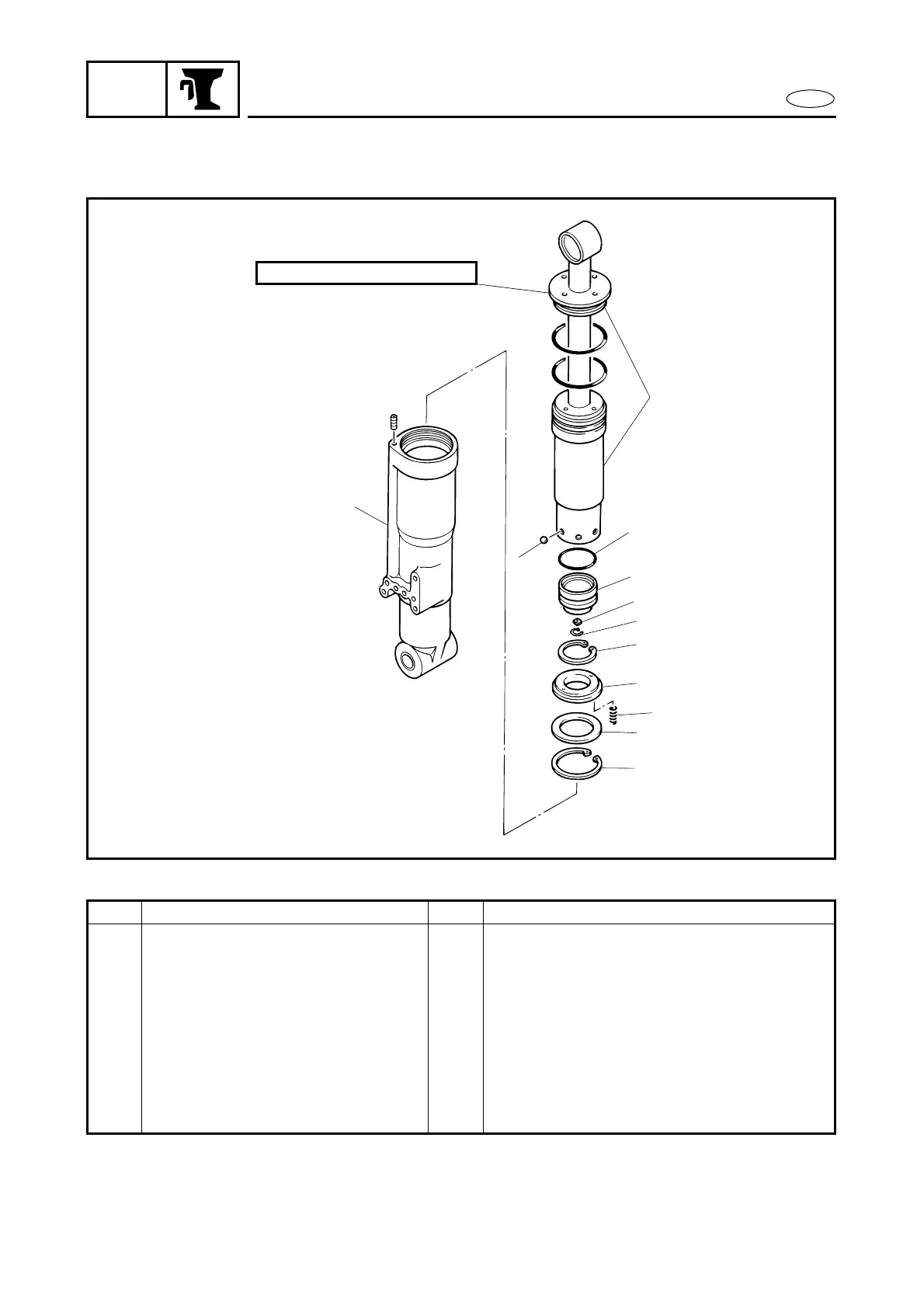

TILT ROD ASSY.
EXPLODED DIAGRAM
1
2
3
5
4
7
8
6
9
10
11
12
90 Nm (9.0 m
•
kg, 65 ft
•
Ib)
TILT ROD ASSY.
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
TILT ROD ASSY. REMOVAL Follow the left “Step” for removal.
1 Tilt rod assy. 1
2 Circlip 1
3 Washer 1
4 Spring 2
5 Stopper plate 1
6 Ball 6
7 Circlip 1
8 Free piston 1
