Yamaha F100X - Clamp Bracket Exploded Diagram

7-15
E
BRKT
CLAMP BRACKET
CLAMP BRACKET

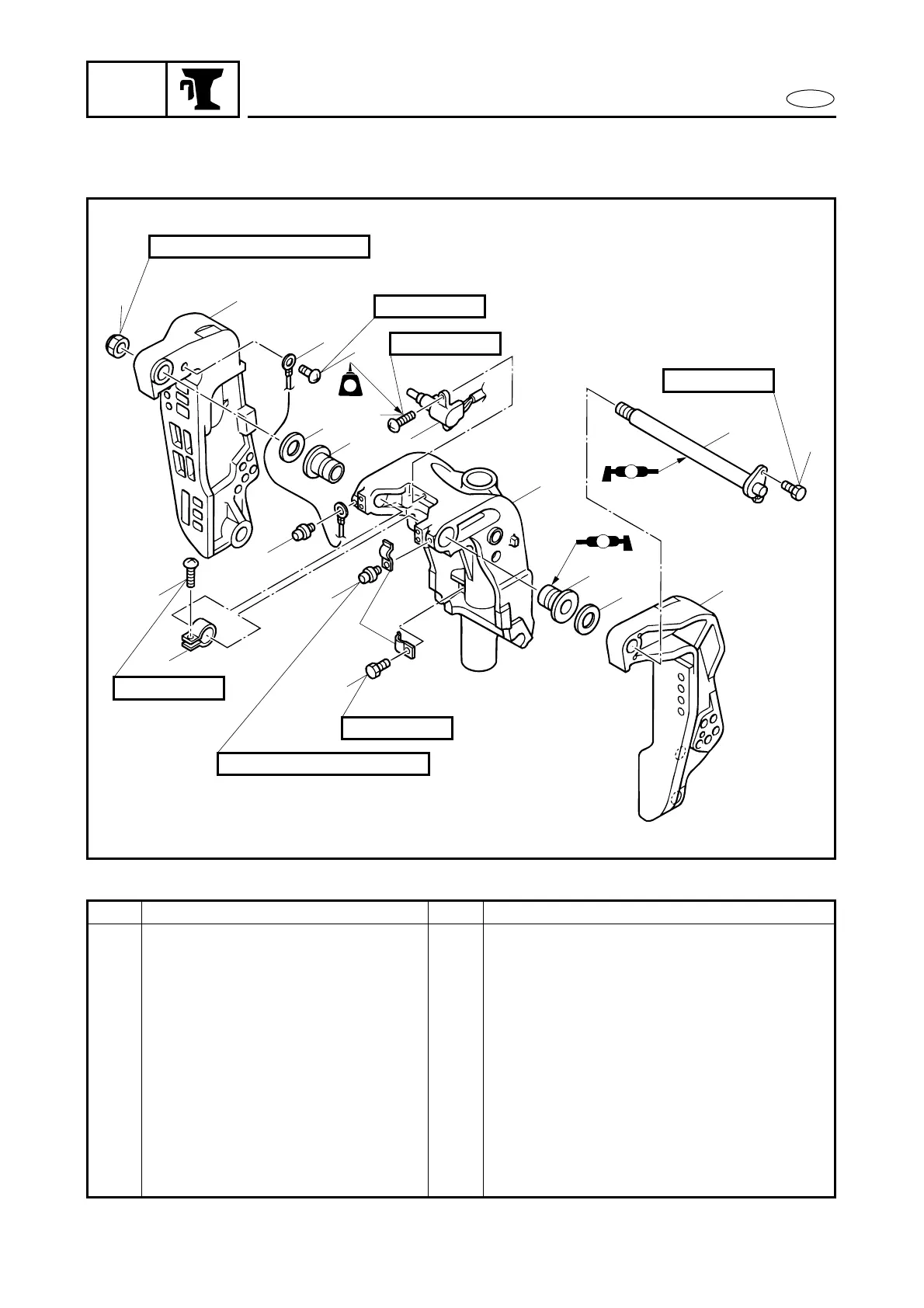

EXPLODED DIAGRAM
1
2
4
3
5
6
6
7
7
8
12
9
10
11
11
13
14
15
16
17
A
A
6 × 12 mm
6 × 25 mm
6 × 16 mm
8 × 20 mm
8 × 20 mm
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
LT
LT
572
15 Nm (1.5 m
•
kg, 111 ft
•
Ib)
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CLAMP BRACKET
DISASSEMBLY
Follow the left “Step” for removal.
Power trim and tilt (PTT) unit Refer to “POWER TRIM AND TILT (PTT)
UNIT”.
1 Self-locking nut 1
2 Bolt 1
3 Screw 1
4 Through tube 1
5 Trim sender cam 1
6 Washer 2
7 Bushing 2
8 Screw 1
