Yamaha F100X - Cylinder Head Cover Exploded Diagram; Removal and Installation Chart

5-18
E
POWR
CYLINDER HEAD COVER
CYLINDER HEAD COVER

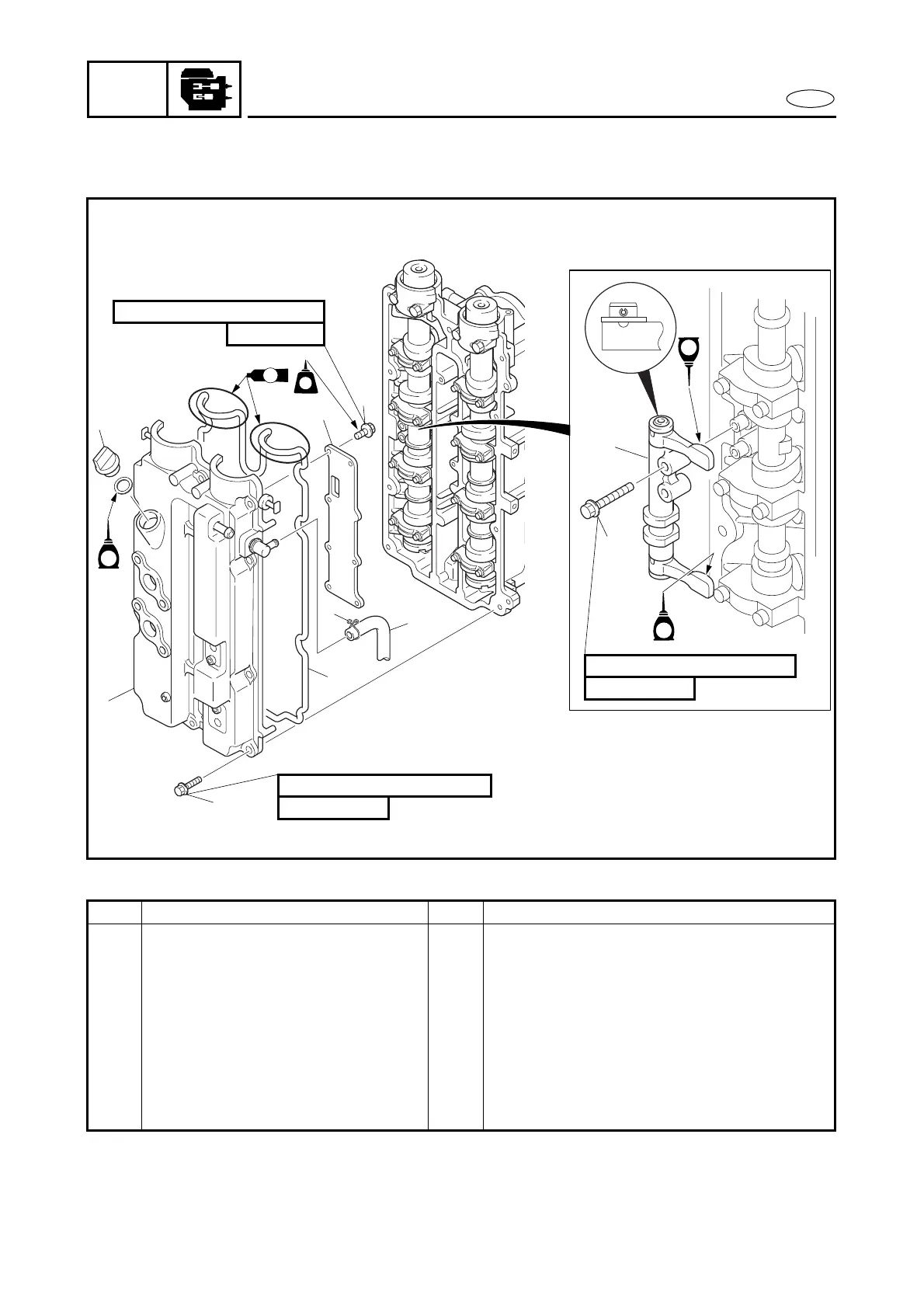

EXPLODED DIAGRAM
17 Nm (1.7 m
•
kg, 12 ft
•
Ib)
2 Nm (0.2 m
•
kg, 1.4 ft
•
Ib)
7 × 48 mm
4 × 8 mm
7
8
5
4
6
2
1
9
10
3
E
M
LT
LT
572572
M
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
6 × 30 mm
4
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CYLINDER HEAD COVER
REMOVAL
Follow the left “Step” for removal.
Timing belt and driven sprockets Refer to “TIMING BELT”.
1 Clip 1
2 Breather hose 1
3 Oil filler cap 1
4 Bolt 14
5 Cylinder head cover 1
6 Rubber gasket 1
