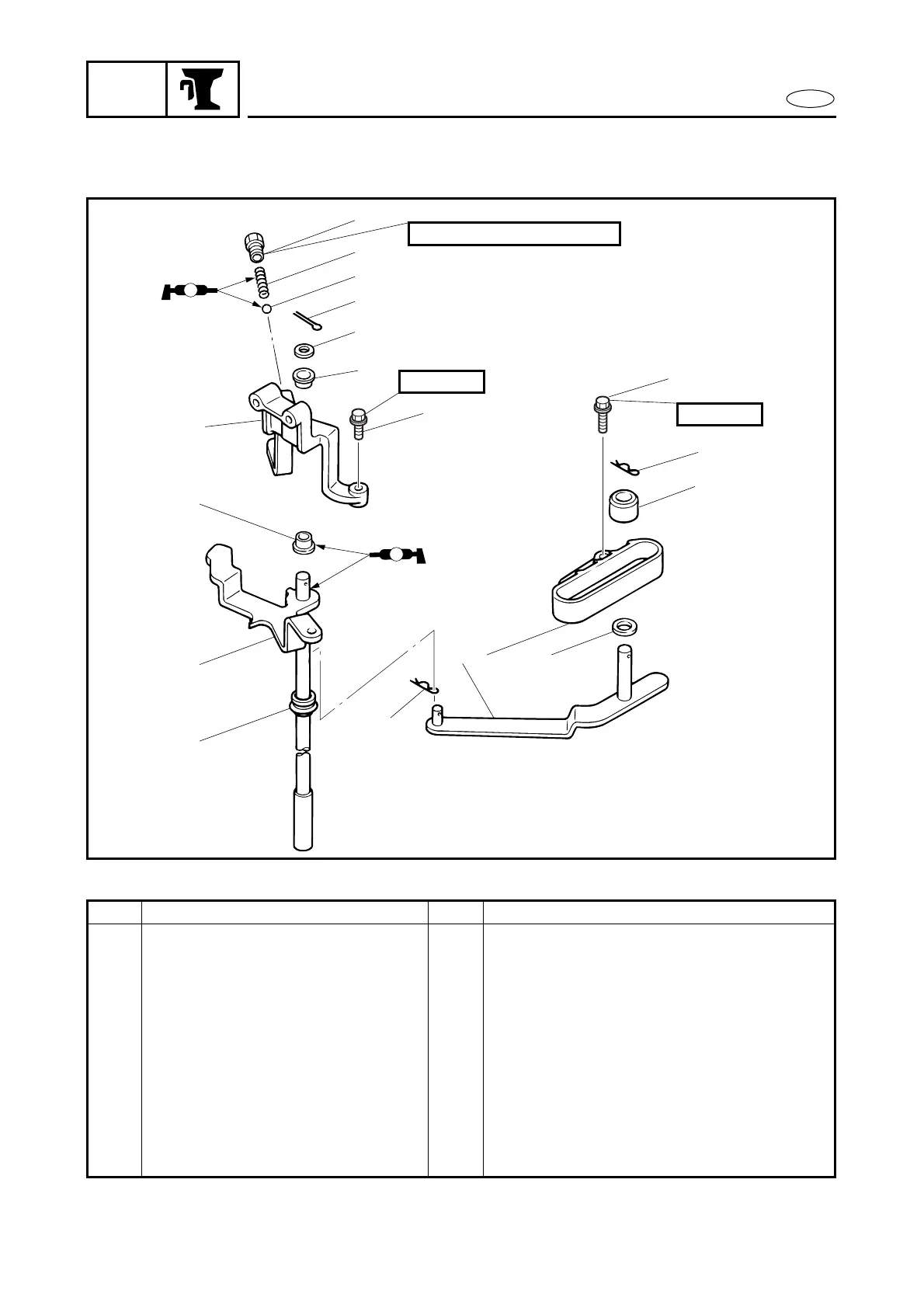

Yamaha F100X - Shift Actuator Assy. Exploded Diagram

7-1
E
BRKT
SHIFT ACTUATOR ASSY.
SHIFT ACTUATOR ASSY.
EXPLODED DIAGRAM
1
2
4
5
8
9
10
11
12
15
16
17
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
A
A
14
3
13
15
7
6
6 × 40 mm
6 × 25 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
SHIFT ACTUATOR ASSY.
DISASSEMBLY
Follow the left “Step” for removal.
Power unit assy. Refer to “POWER UNIT” in chapter 5.
1 Clip 1
2 Bushing 1
3 Bolt 2
4 Shift bracket 1
5 Washer 1
6 Clip 1
7 Shift rod lever 1
8 Bolt 1
