4-5
E
FUEL
FUEL PUMPS

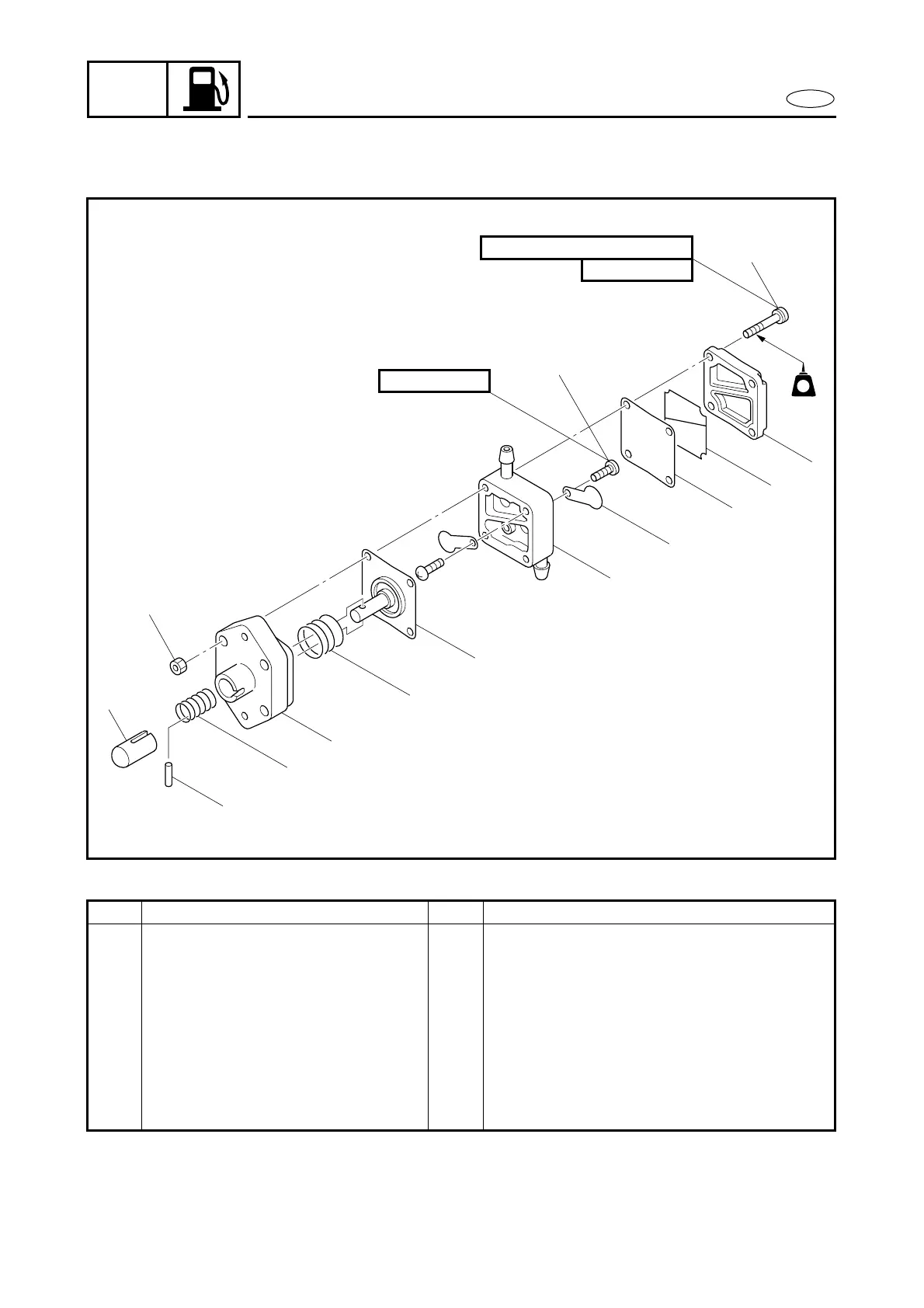

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
8 Fuel pump valve 2
9 Plunger 1
10 Pin 1
11 Spring 1
12 Diaphragm 1
13 Spring 1
14 Fuel pump cover 1
Reverse the disassembly steps for
installation.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
5 × 35 mm
4 × 8 mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
LT
LT
