4-17
FUEL
E
CARBURETOR

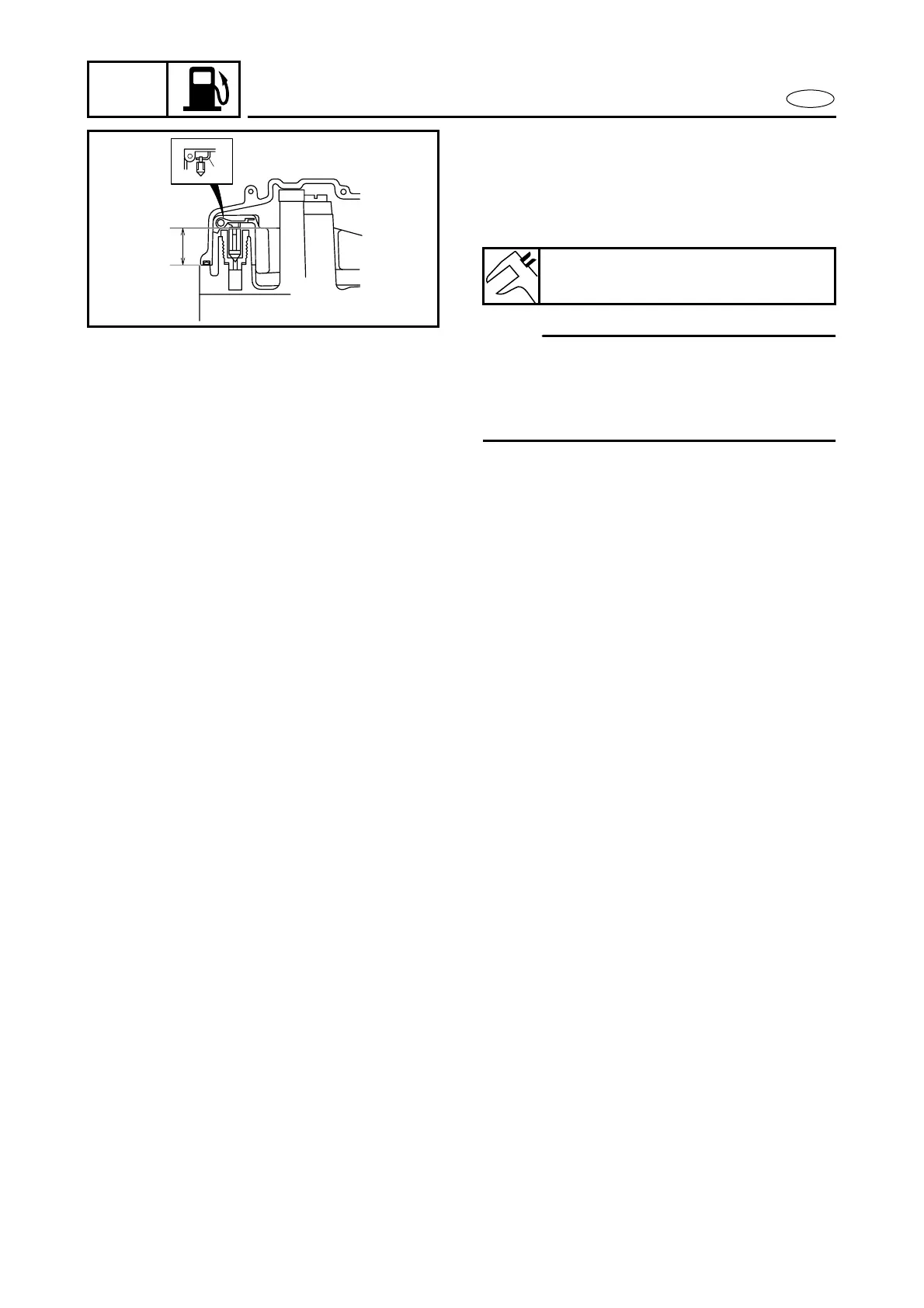

2. Measure:
● Float height a
(without the gasket)
Out of specification → Adjust the float
height by bending the tab 1.
NOTE:
● The float should be resting on the needle
valve, but not compressing it.
● Take measurements at the end of the
float, opposite the side it pivots on.
Float height:
14.0 ± 1.0 mm (0.55 ± 0.04 in)
a
1
3. Adjust:
● Pilot screw
Refer to “CONTROL SYSTEM” in
chapter 3.
