5-5
E
POWR
POWER UNIT

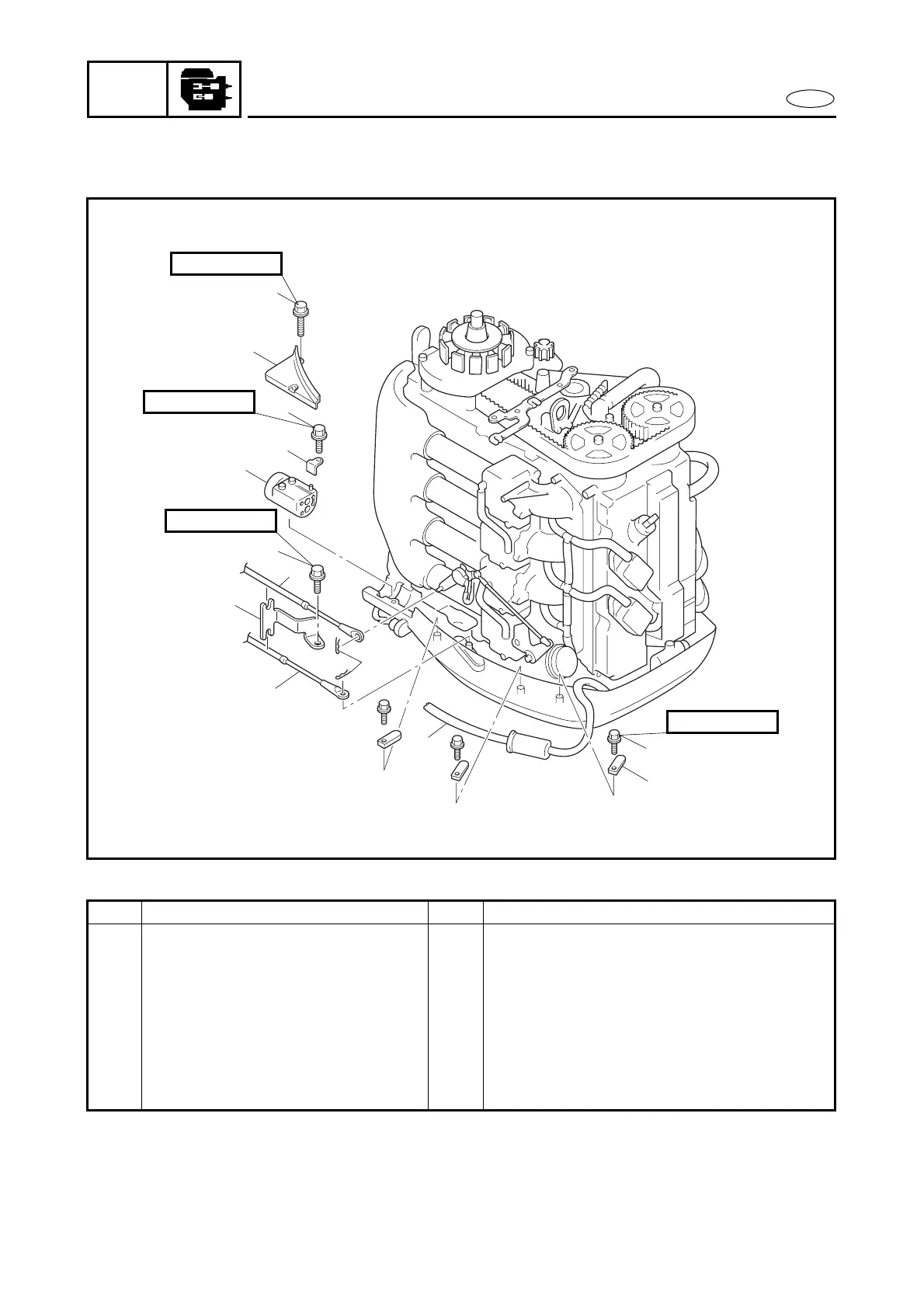

EXPLODED DIAGRAM
1
2
3
4
8
6
7
10
5
13
12
11
9
6 × 20 mm
6 × 20 mm
6 × 25 mm
6 × 25 mm
Step Procedure/Part name Q’ty Service points
7 Cable clamp 1
8 Grommet 1
9 Throttle control cable 1
10 Shift control cable 1
11 Bolt 3
12 Clamp plate 3
13 Fuel hose 1
Reverse the removal steps for installation.
