Yamaha F100X - Page 164

5-10
E
POWR
STATOR COIL ASSY.

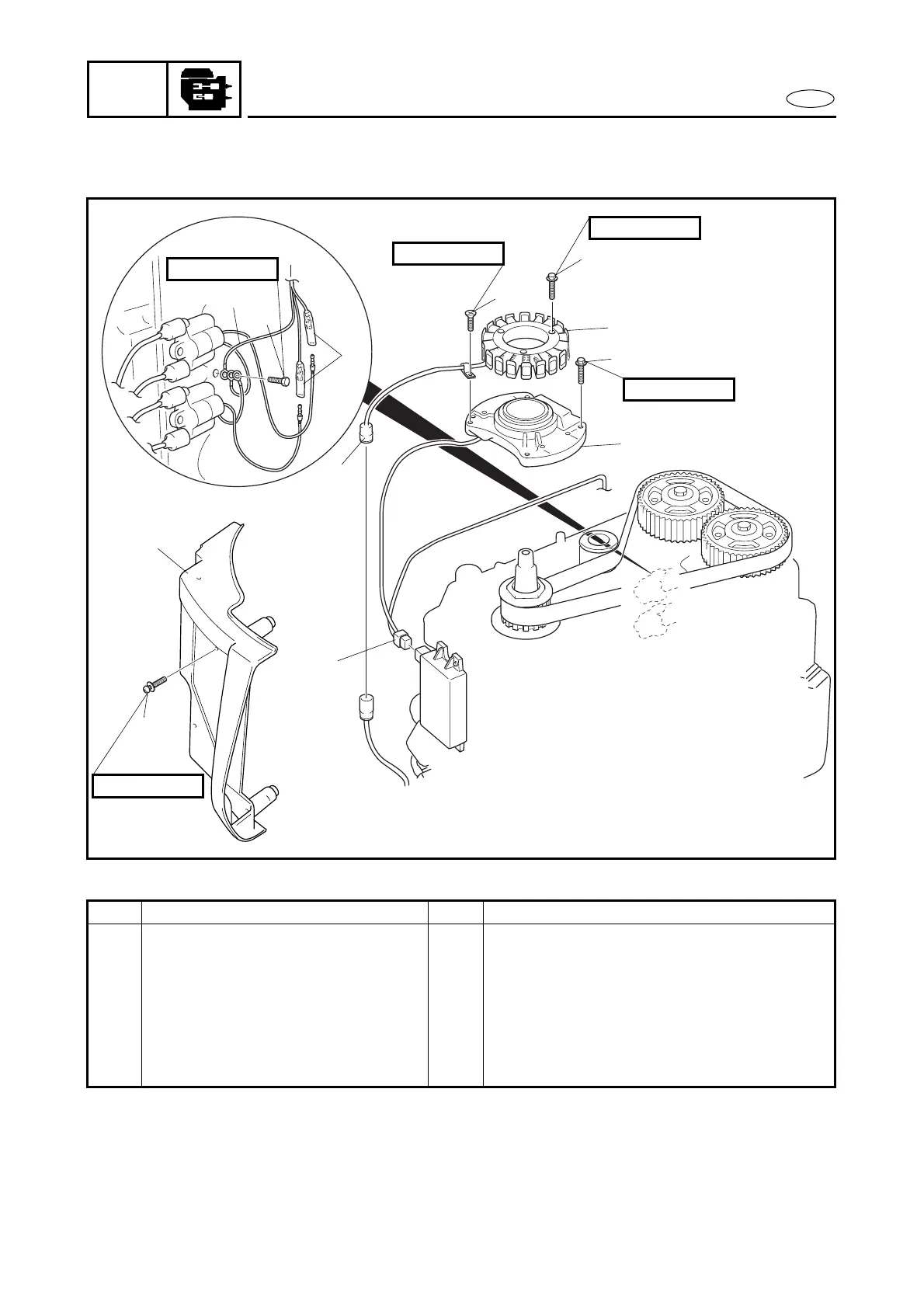

EXPLODED DIAGRAM
A
A
4
9
8
7
5
6
11
2
1
10
3
12
4 × 10 mm
6 × 20 mm
6 × 28 mm
6 × 30 mm
6 × 30 mm
Step Procedure/Part name Q’ty Service points
7 Ignition coil connector 2
8 Bolt 1
9 Ground lead 1
10 CDI unit connector 1
11 Bolt 4
12 Stator coil assy. base 1
Reverse the removal steps for installation.
