Yamaha F100X - Page 328

7-12
E
BRKT
OIL PAN

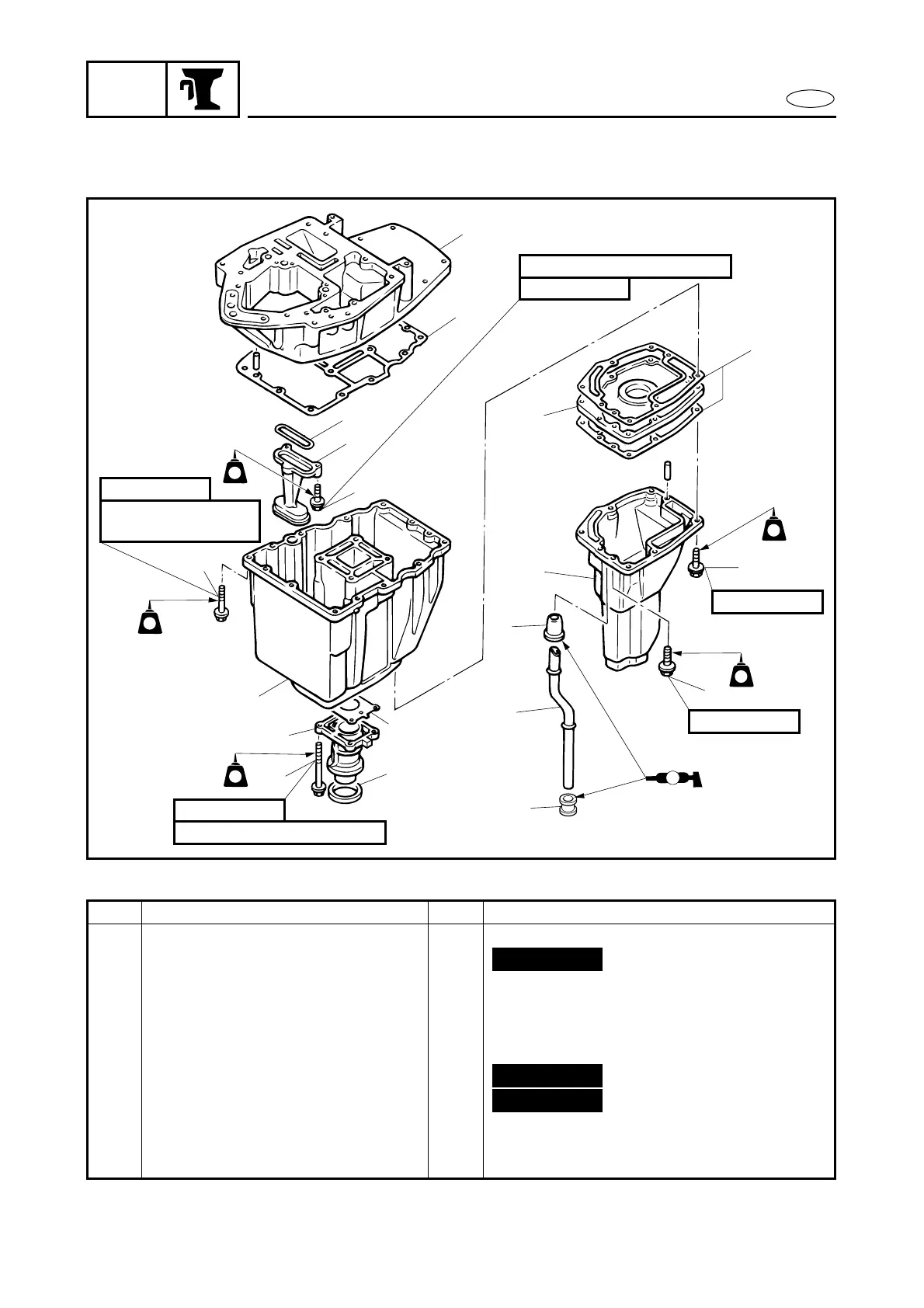

EXPLODED DIAGRAM
1
2
3
4
5
6
7
8
9
10
13
14
15
16
17
18
19
12
11
6 × 25 mm
6 × 25 mm
6 × 70 mm
6 × 50 mm
6 × 30 mm
LT
LT
572
LT
LT
572
LT
LT
572
LT
LT
572
LT
LT
572
10 Nm
(1.0 m
•
kg, 7.2 ft
•
Ib)
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
A
Step Procedure/Part name Q’ty Service points
11 Exhaust manifold 1
12 Gasket 1
13 Bolt 12
14 Oil pan 1
15 Bolt 3
16 Oil strainer 1
17 Rubber gasket 1
18 Gasket 1
19 Exhaust guide 1
Reverse the disassembly steps for
installation.
Not reusable
Not reusable
Not reusable
