Yamaha F100X - Page 336

7-16
E
BRKT
CLAMP BRACKET

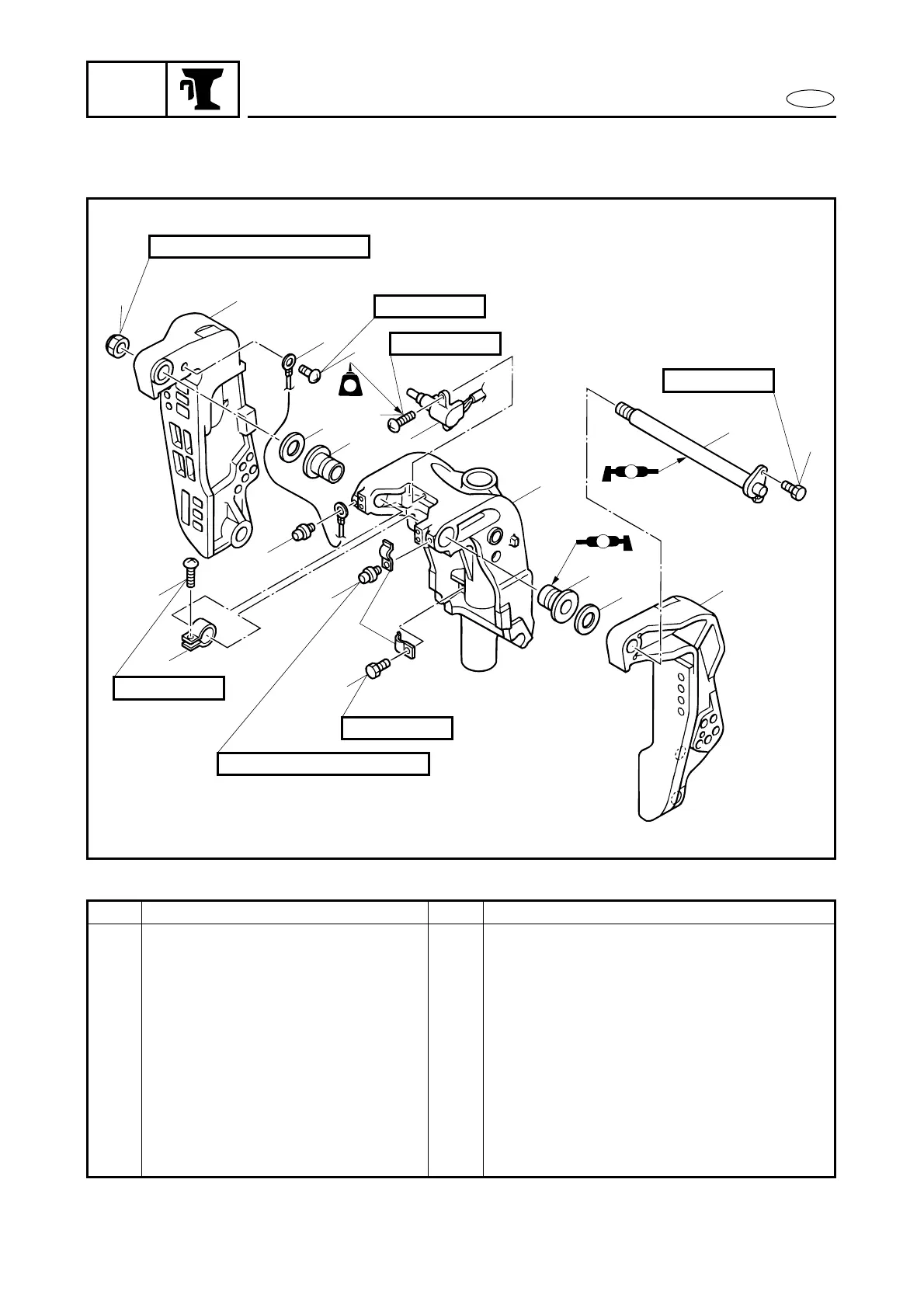

EXPLODED DIAGRAM
1
2
4
3
5
6
6
7
7
8
12
9
10
11
11
13
14
15
16
17
A
A
6 × 12 mm
6 × 25 mm
6 × 16 mm
8 × 20 mm
8 × 20 mm
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
LT
LT
572
15 Nm (1.5 m
•
kg, 111 ft
•
Ib)
Step Procedure/Part name Q’ty Service points
9 Clamp bracket 1
10 Clamp bracket 1
11 Grease nipple 2
12 Ground lead 1
13 Screw 2
14 Trim sender 1
15 Bolt 1
16 Clamp 2
17 Swivel bracket 1
Reverse the disassembly steps for
installation.
