Yamaha F100X - Page 350

7-23
E
BRKT

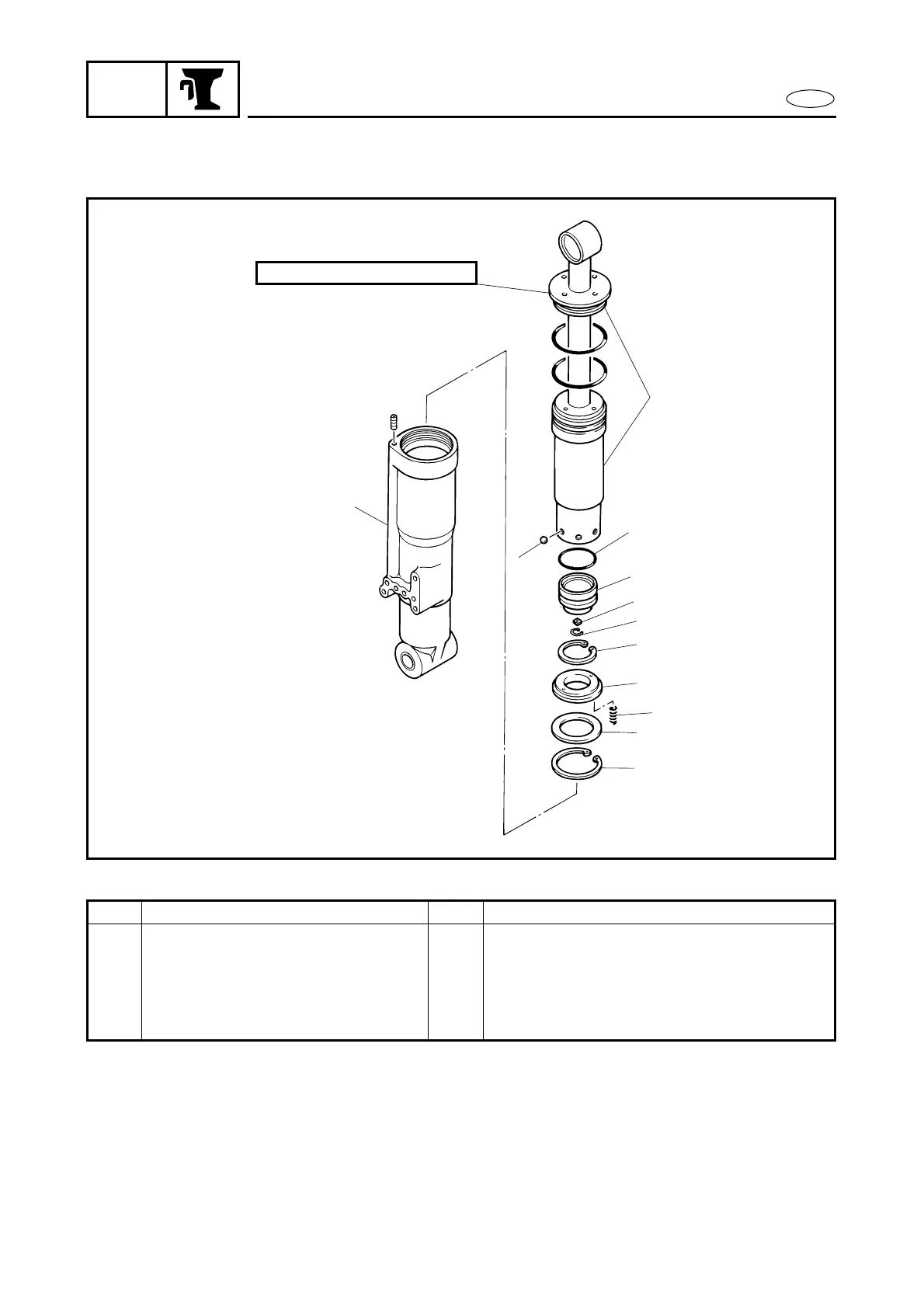

EXPLODED DIAGRAM
1
2
3
5
4
7
8
6
9
10
11
12
90 Nm (9.0 m
•
kg, 65 ft
•
Ib)
TILT ROD ASSY.
Step Procedure/Part name Q’ty Service points
9 O-ring 1
10 Circlip 1
11 Relief valve seal 1
12 Tilt cylinder 1
Reverse the removal steps for installation.
