7-26
E
BRKT

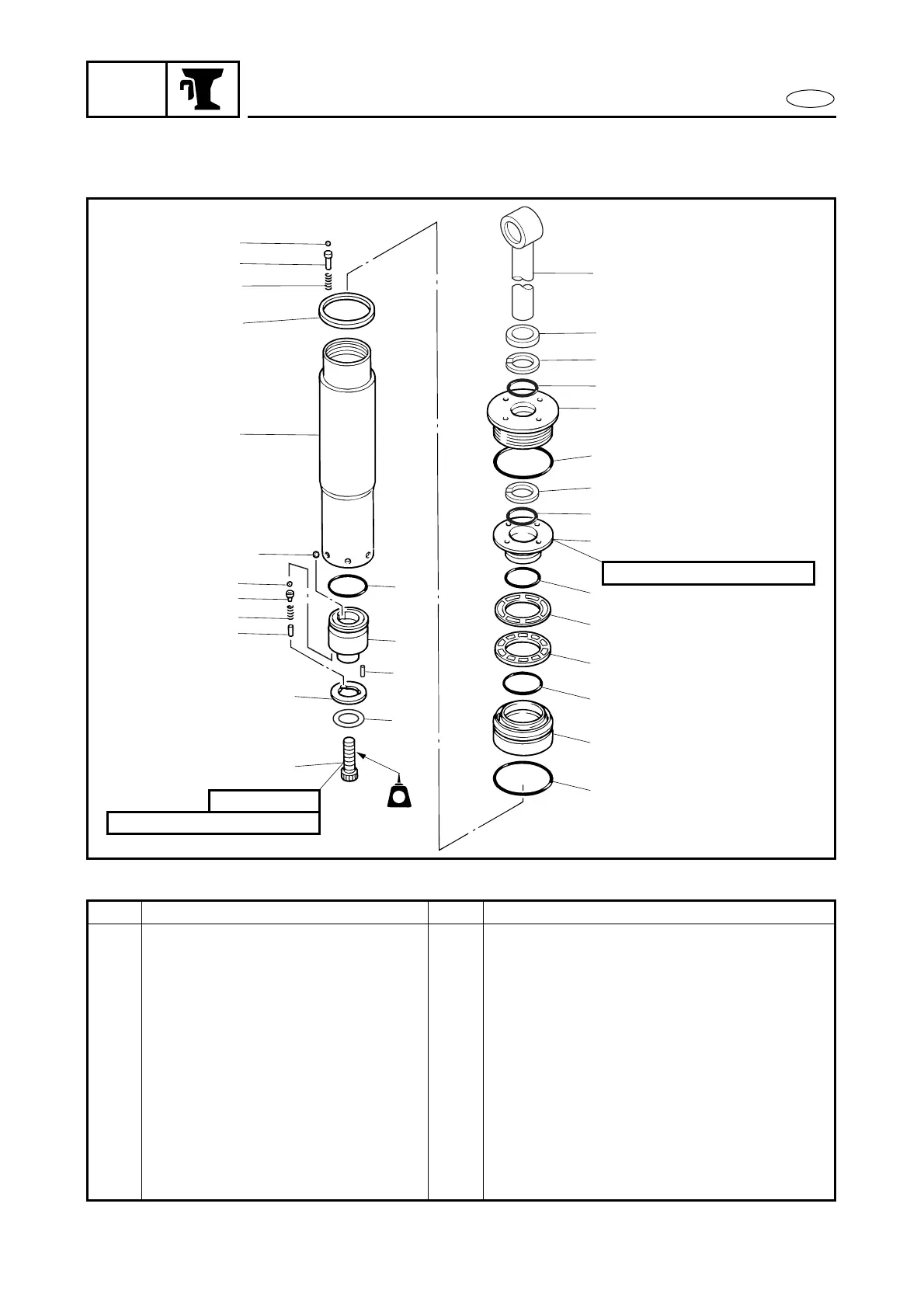

TILT ROD ASSY.
EXPLODED DIAGRAM
1
2
3
5
6
7
10
4
8
9
11
13
15
17
16
18
20
19
21
22
23
24
25
26
27
28
29
30
31
14
85 Nm (8.5 m
•
kg, 61 ft
•
Ib)
80 Nm (8.0 m
•
kg, 58 ft
•
Ib)
12 × 45 mm
12
LT
LT
572
Step Procedure/Part name Q’ty Service points
22 Inner cylinder end screw 1
23 O-ring 1
24 Backup ring 1
25 O-ring 1
26 Outer cylinder end screw 1
27 O-ring 1
28 Dust seal 1
29 Backup ring 1
30 O-ring 1
31 Tilt rod 1
Reverse the disassembly steps for
installation.
