Yamaha F100X - Page 370

7-33
E
BRKT

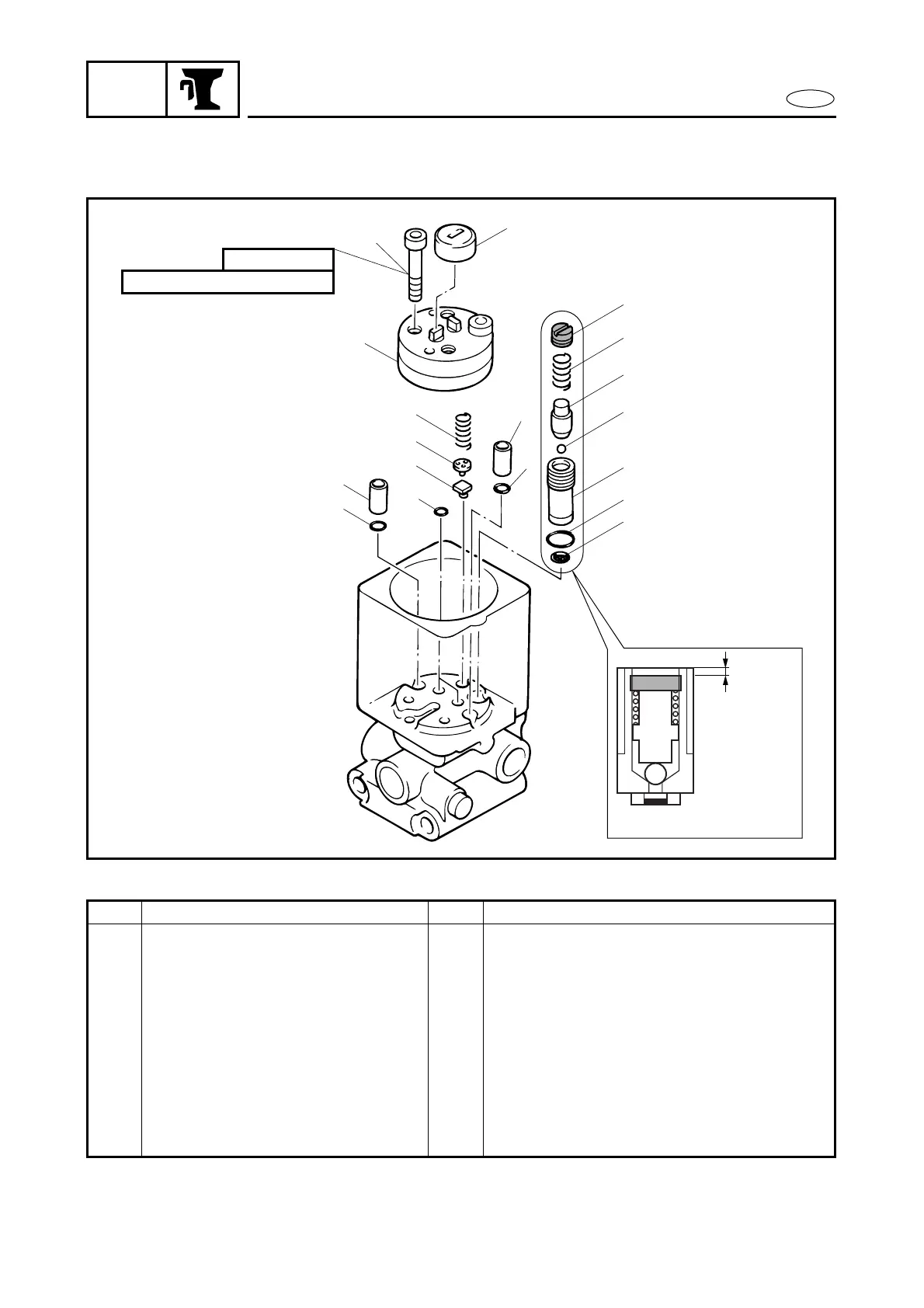

GEAR PUMP
EXPLODED DIAGRAM
2
1
3
4
5
6
7
8
9
4
5
10
11
12
13
14
15
16
6 × 35 mm
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
2.2 mm
(0.087 in)
Step Procedure/Part name Q’ty Service points
8 Valve support pin 1
9 Valve seat 1
10 Relief valve seat 1
11 O-ring 1
12 Filter 1
13 Cap screw 1
14 Spring 1
15 Plunger 1
16 Ball 1
Reverse the removal steps for installation.
