Yamaha F100X - Page 426

8-20
–+
ELEC
E

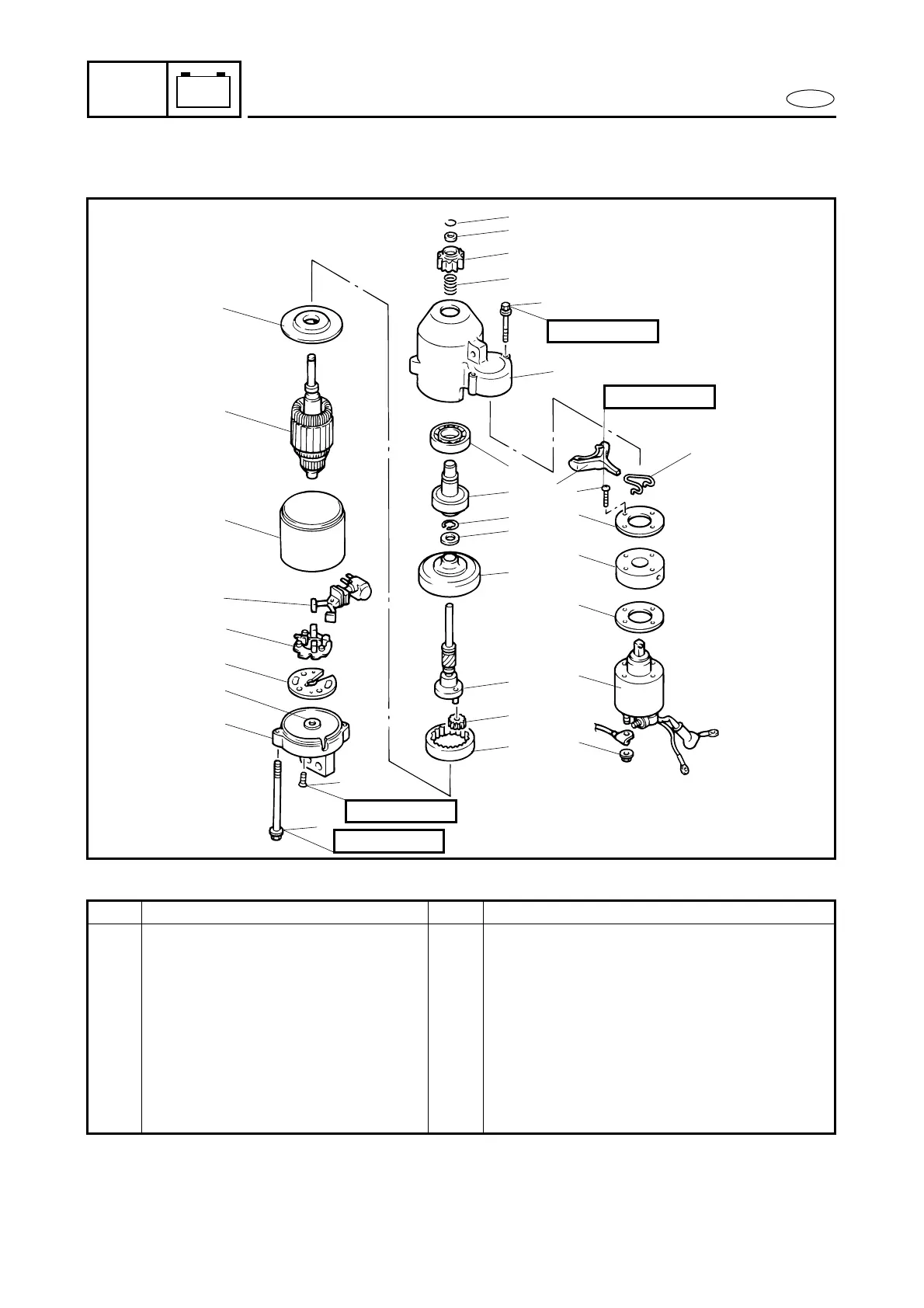

STARTER MOTOR
EXPLODED DIAGRAM
18
17
11
16
14
12
10
9
19
21
20
24
23
22
29
30
28
27
26
25
2
3
31
4
5
6
7
8
32
1
6 × 120 mm
4 × 14 mm
6 × 52 mm
4 × 20 mm
13
15
Step Procedure/Part name Q’ty Service points
16 Brush assy. 1
17 Armature 1
18 Center bracket plate 1
19 Outer ring gear 1
20 Planetary gear 3
21 Pinion shaft 1
22 E-ring 1
23 Thrust washer 1
24 Center bracket 1
