2-7
E
EMU00094

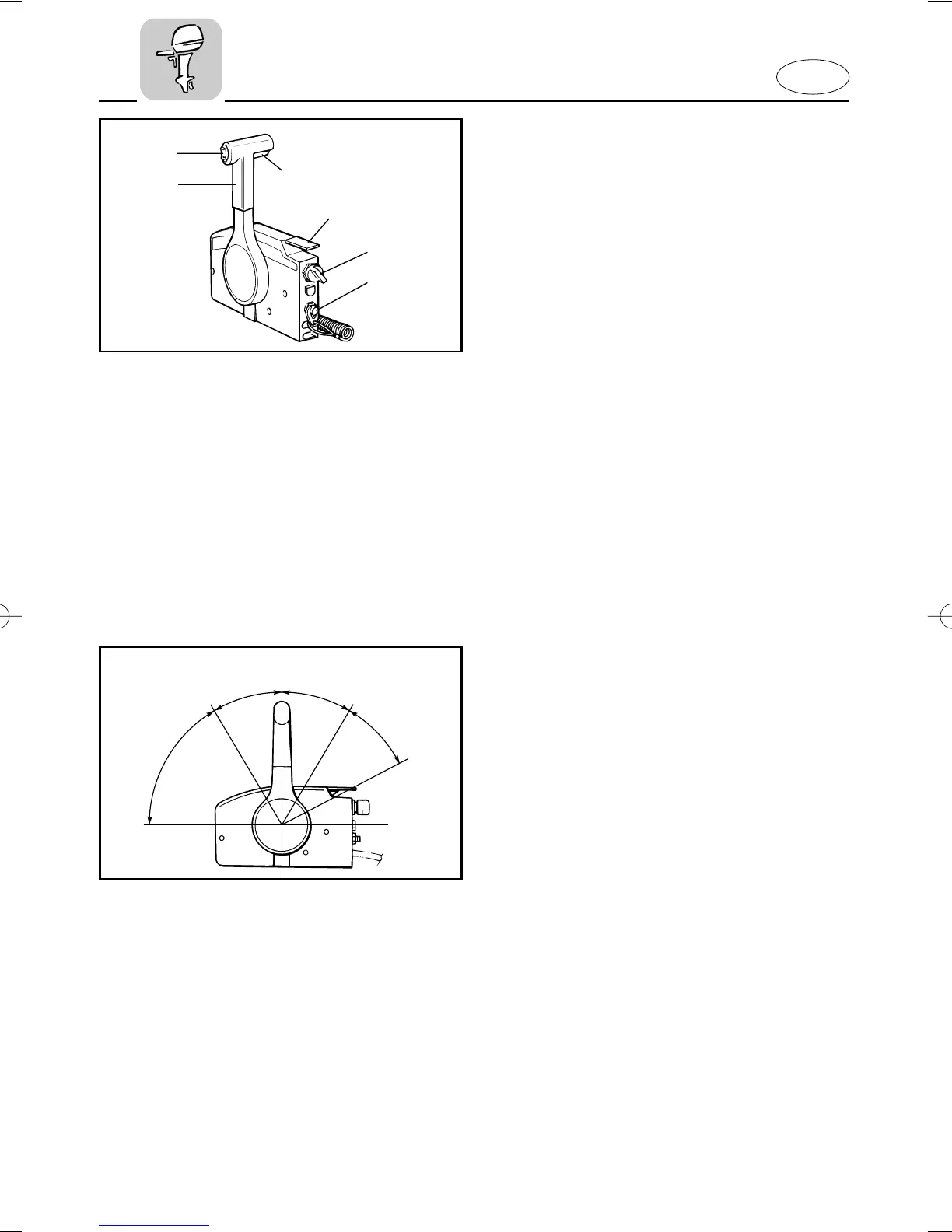

REMOTE CONTROL
Both the shifter and the throttle are actu-
ated by the remote control lever. In addi-
tion, this remote control also has the elec-
trical switches.
1 Remote control lever
2 Neutral interlock trigger
3 Neutral throttle lever
4 Main switch / Choke switch
5 Engine stop lanyard switch
6 Power tilt switch
7 Throttle friction adjusting screw
EMU00098
Remote Control Lever
Moving the lever forward from the
Neutral position engages Forward gear.
Pulling the lever back from Neutral
engages Reverse. The engine will contin-
ue to run at idle until the lever is moved
about 35° (a detent can be felt). Moving
the lever farther opens the throttle, and
the engine will begin to accelerate.
1 Neutral
2 Forward
3 Reverse
4 Shift
5 Fully closed
6 Throttle
7 Fully open
66M-9-17-2 2/27/03 10:10 AM Page 8
